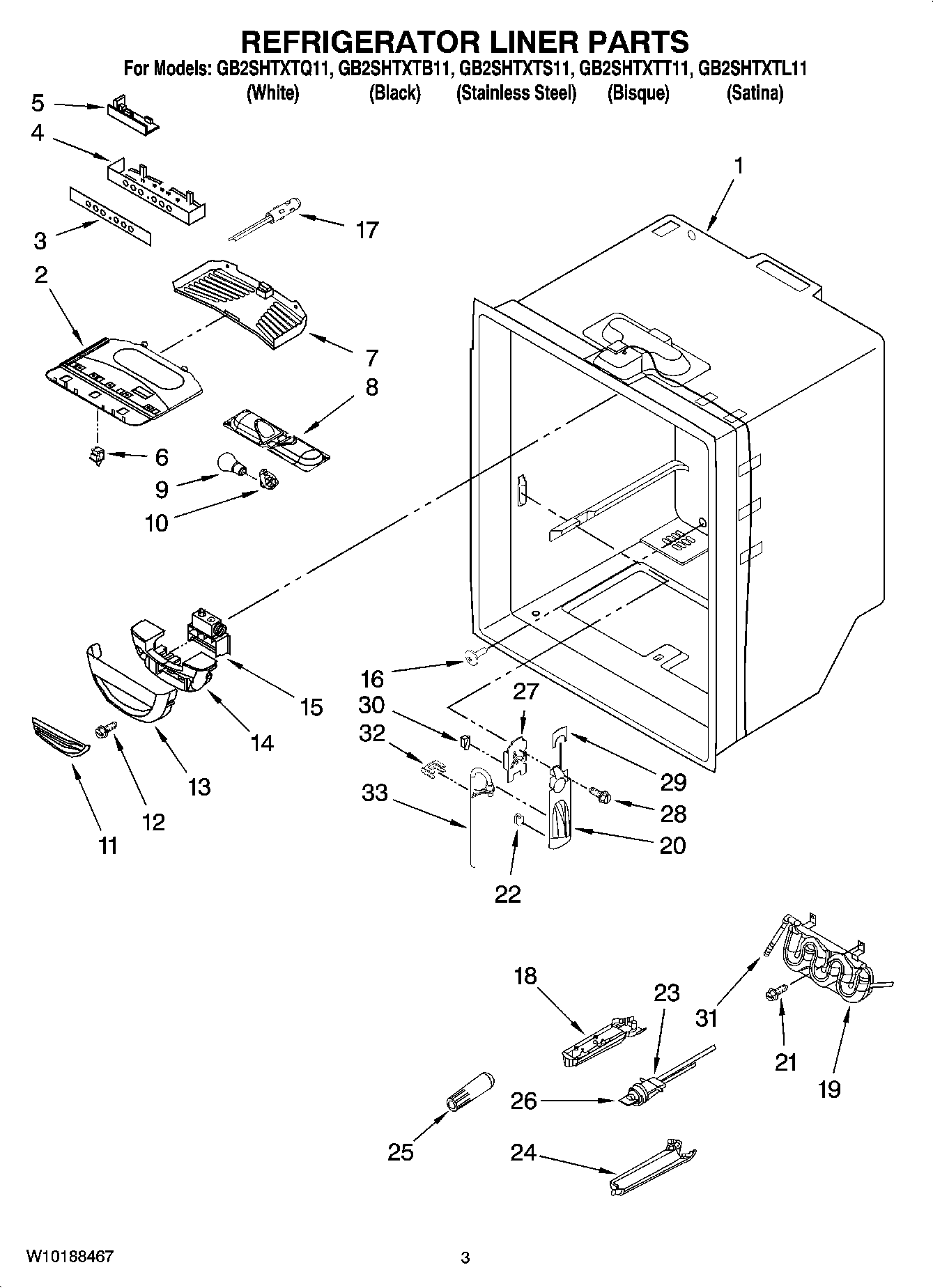

GB2SHTXTT11 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
	Following Parts Not Illustrated
	W11619328 Whirlpool Wire Harness
1	Liner (Not A Serviceable Part)
2	Housing, Ref. Light
3	Overlay
4	WPW10464769 Whirlpool Refrigerator Housing
5	WPW10503278 Whirlpool Refrigerator Electronic Control Board
6	W11384469 Whirlpool Door Switch
7	W11284721 Whirlpool Refrigerator Cover
8	12806601 Whirlpool Refrigerator Light Housing
9	W11679940 Whirlpool Refrigerator Light Bulb Assembly
10	W11447232 Whirlpool Refrigerator Socket
11	67003900 Whirlpool Refrigerator Insert Damper Cover
12	WP400021-1 Whirlpool Screw
13	WP12806701 Whirlpool Refrigerator Box Cover
14	INSULATION
15	WPW10196393 Whirlpool Control Damper
16	M0310343 Whirlpool Button Plug
17	12002355 Whirlpool Refrigerator Thermistor Kit
18	PLATE-FIL
19	Tank, Water
20	Facade, Disp.
21	67006425 Whirlpool Refrigerator Screw
22	W10819546 Whirlpool Refrigerator Clip
23	WP67006524 Whirlpool Refrigerator Housing
24	WP12568001 Whirlpool Filter Cover
25	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
26	Plug, Bypass
27	12707303SP Whirlpool Refrigerator Plate
28	WP98165 Whirlpool Screw
29	W11519867 Whirlpool Refrigerator Cover
30	WP12575501 Whirlpool Refrigerator Micro Switch
31	WP2300868 Whirlpool Refrigerator Fitting
32	67002816 Whirlpool Refrigerator Waterline Clip
33	W11677725 Whirlpool Refrigerator Guide
