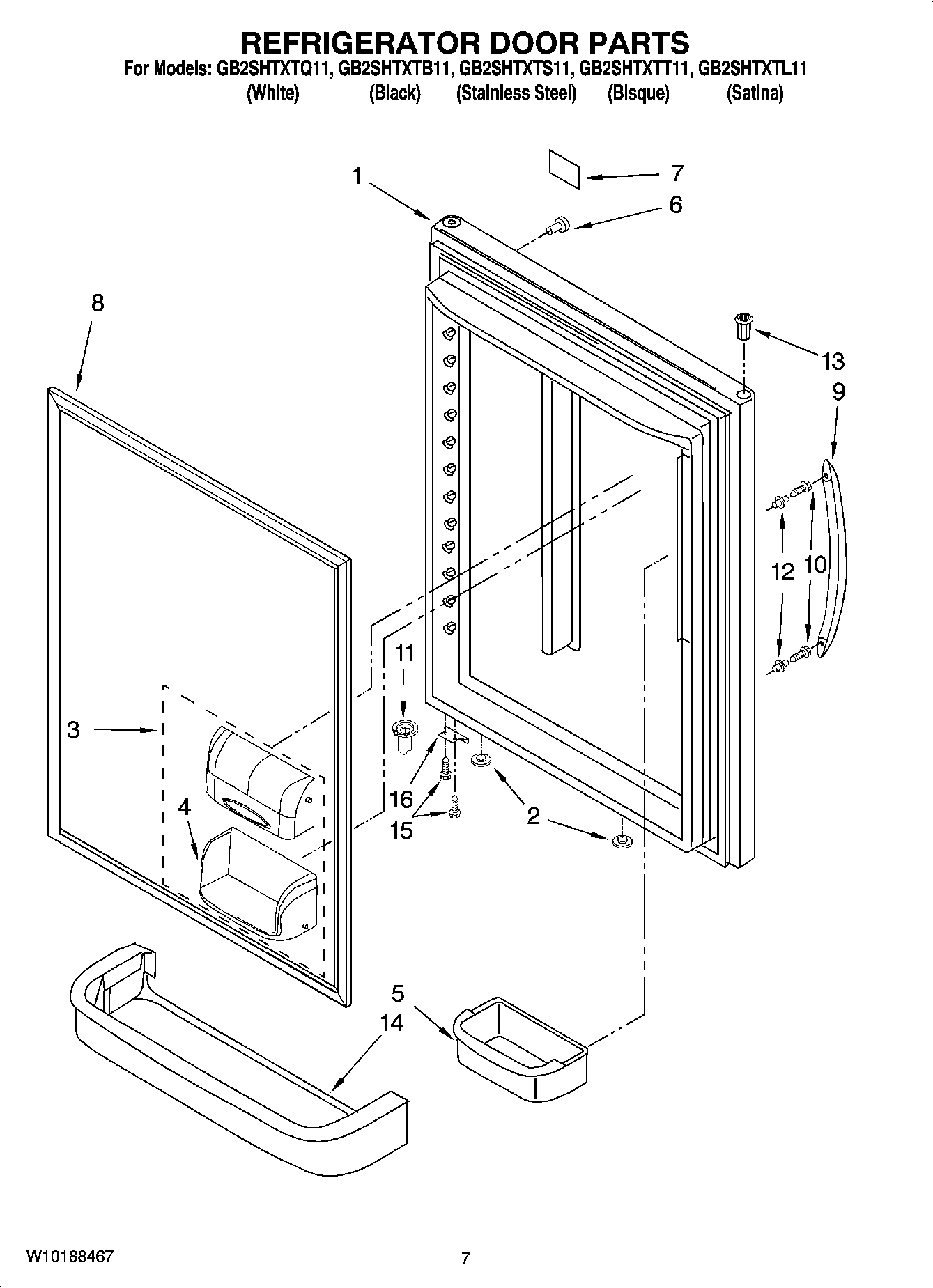

GB2SHTXTT11 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (w/ Insulation) (Satina)
1	12658533BQ Whirlpool Refrigerator FIP Door
1	Refrigerator Door (w/ Insulation) (White)
1	Refrigerator Door (w/ Insulation) (Bisque)
1	Refrigerator Door (w/ Insulation) (Stainless Steel)
2	10712401 Whirlpool Refrigerator Vent Plug (White)
2	67004838 Whirlpool Refrigerator Button Vent Plug
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	W10709784 Whirlpool Refrigerator Handle Plug
6	WP12246610 Whirlpool Refrigerator Handle Plug
6	WP67001130 Whirlpool Refrigerator White Button Plug
6	WP12246608 Whirlpool Refrigerator Button
7	Nameplate
8	W10443313 Whirlpool Door Gasket
8	WPW10436248 Whirlpool Door Gasket
9	WP2254600W Whirlpool Refrigerator Handle
9	WP2254600B Whirlpool Refrigerator Handle
9	Handle (Biscuit)
9	Handle (Stainless)
10	67006901 Whirlpool Refrigerator Screw
11	WP67003639 Whirlpool Refrigerator Closer
11	WP67003638 Whirlpool Closing Cam
12	WP67006113 Whirlpool Stud Bolt
13	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
13	67004978 Whirlpool Refrigerator Black Door Bushing
14	Retainer, Door
15	WP98165 Whirlpool Screw
16	12968202W Whirlpool Refrigerator Door Stop
16	67003781 Whirlpool Refrigerator Door Stop (BSQ)
16	W11708403 Whirlpool Door Stop
