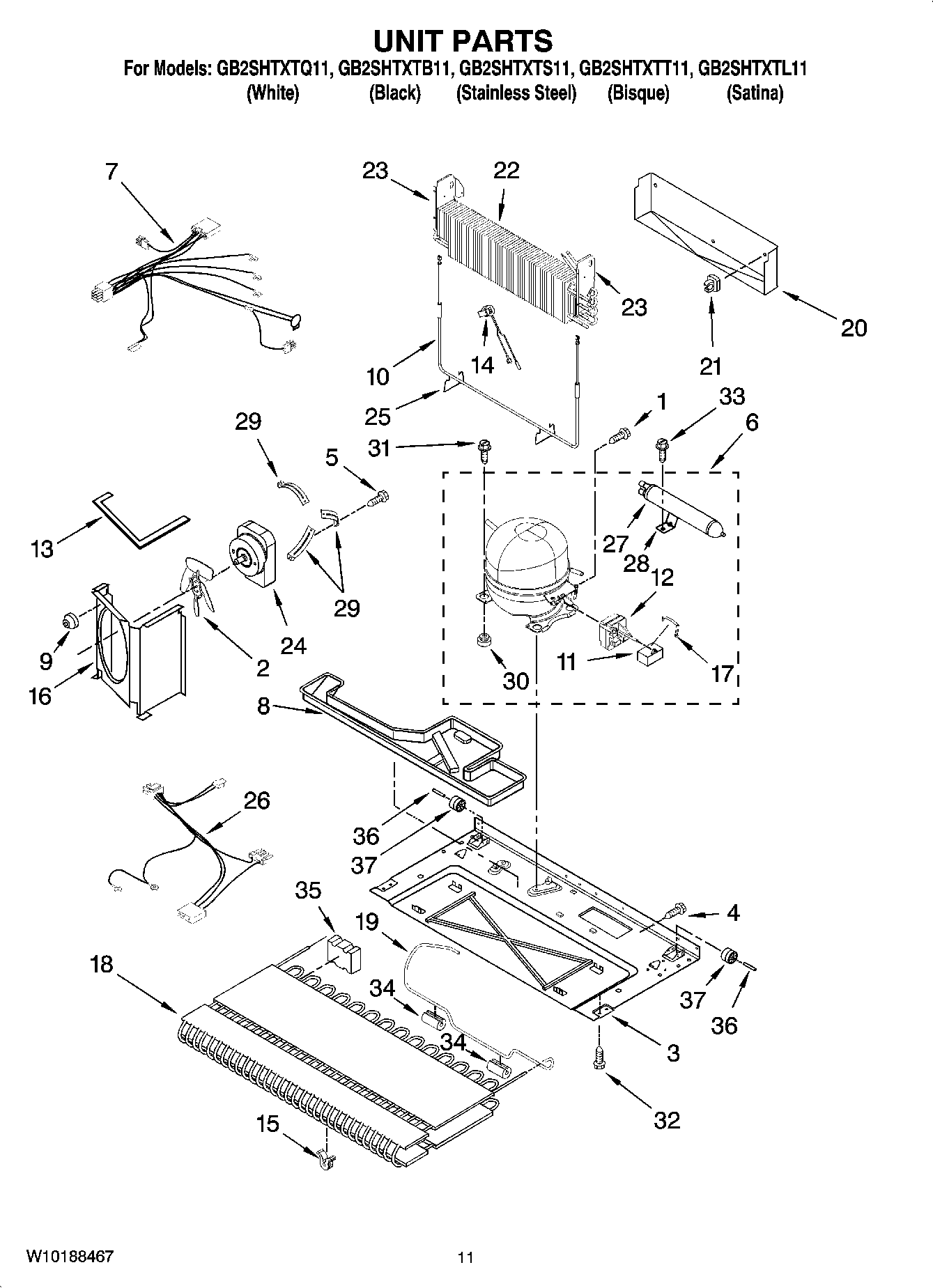

GB2SHTXTT11 06 – UNIT PARTS

GB2SHTXTT11 06 – UNIT PARTS

Written by

in

GB2SHTXTT11 06 – UNIT PARTS

Products

PositionProduct
VALVE, ACCESS (5/8“)
876764 Whirlpool Refrigerator Primary Valve
978026 Whirlpool Refrigerator Primary Valve
Following Parts Not Illustrated and Optional Parts Not Included
978027 Whirlpool Refrigerator Primary Valve
978030 Whirlpool Refrigerator Valve
WP978025 Whirlpool Refrigerator Valve
VALVE, ACCESS (1/2“)
REFRIGERANT CHARGE 5.00 Ozs. (R-134A)
112992301 Whirlpool Refrigerator Screw
2W10156818 Whirlpool Refrigerator Fan Blade
3Basepan
467006425 Whirlpool Refrigerator Screw
5WP67004954 Whirlpool Refrigerator Screw
6COMPRESSOR (INCLUDES ITEMS 11,12,17,27)
7Harness, Evap. Heater
8Drain Pan
9Grommet (3)
10WP67001794 Whirlpool Refrigerator Defrost Heater
11Capacitor (See Item 12)
12WPW10197426 Whirlpool Refrigerator Start Device
13WP854334 Whirlpool Air Conditioner Sealing Strip
14WPW10165425 Whirlpool Bimetal Defrost Thermostat
15WPW10137529 Whirlpool Refrigerator Grommet
16Shroud, Condenser
17W10136415 Whirlpool Clip
18WP67006132 Whirlpool Refrigerator Condenser
19Discharge Tube
20WPW10292802 Whirlpool Refrigerator Drip Tray
21CLIP, EVAP (2)
2212001919 Whirlpool Refrigerator Evaporator Replacement Kit
23Dam (Left Side)
23Dam (Right Side)
24Motor, Fan
25W11673433 Whirlpool Clip
26Harness, Unit (Includes Cord)
27WPB2150504 Whirlpool Refrigerator Dryer
2810547003 Whirlpool Refrigerator Dryer Clip
29WP67004953 Whirlpool Refrigerator Bracket
30WPW10169124 Whirlpool Refrigerator Grommet
3112846902 Whirlpool Refrigerator Screw
32Screw (4)
33WP33001882 Whirlpool Screw
3467005680 Whirlpool Refrigerator Condenser Grommet
35Block, Condenser
3667006434 Whirlpool Axle Pin
37WP67005149 Whirlpool Roller
