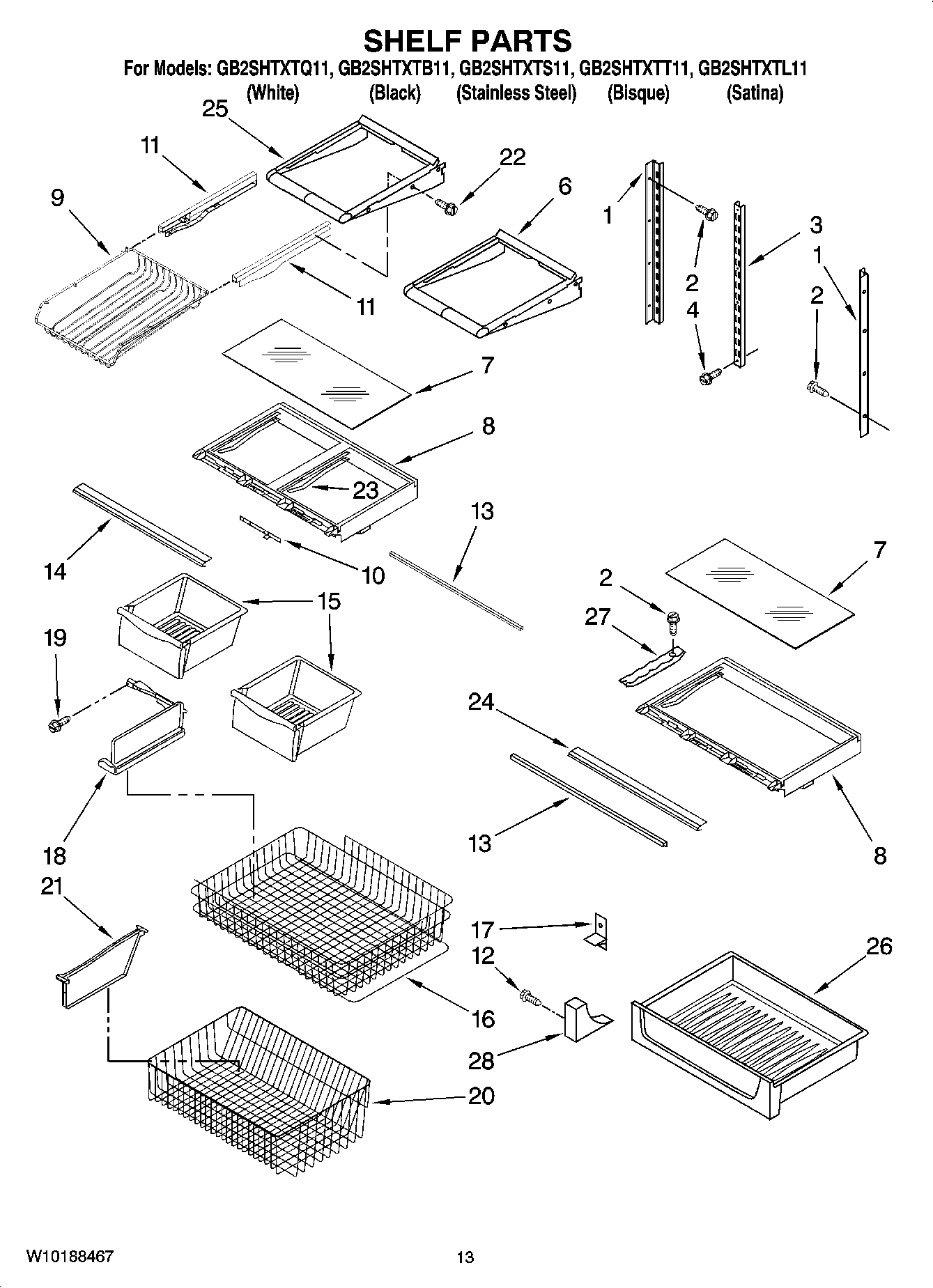

GB2SHTXTT11 07 – SHELF PARTS

GB2SHTXTT11 07 – SHELF PARTS

Written by

in

GB2SHTXTT11 07 – SHELF PARTS

Products

PositionProduct
1Ladder, Side
367001073 Whirlpool Refrigerator Center Ladder
4W10709795 Whirlpool Refrigerator Screw
6Shelf, Glide (3)
7WP67006878 Whirlpool Refrigerator Crisper Glass
8WPW10568041 Whirlpool Refrigerator Crisper Shelf Drawer Cover
9Rack, Can
10SLIDE
11WP67001053 Whirlpool Drawer Glide
11WP67001054 Whirlpool Left Glide
1267006425 Whirlpool Refrigerator Screw
13WP12227303WD Whirlpool Refrigerator Crisper Brace
14WPW10231482 Whirlpool Refrigerator Shelf Trim
15WP67002633 Whirlpool Crisper Pan
16Basket, Freezer (Upper)
17WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
18Divider, Upper Basket
19Screw
20Basket, Freezer (Lower)
21Divider, Lower Basket
22SCREW
23RAIL-CENTR CRISPER
24W10656986 Whirlpool Refrigerator Shelf Trim
25W11402523 Whirlpool Refrigerator Glass Shelf
26W10328327 Whirlpool Refrigerator Snack Pan
27WP67001719 Whirlpool Refrigerator Track
28WP67001722 Whirlpool Refrigerator Support
28WP67001721 Whirlpool Refrigerator Support
