GB2SHTXTT11 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

GB2SHTXTT11 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GB2SHTXTT11 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL 799833
WPL ARI147719A
WPL ARI147718A
WPL ARI147716A
POLISH
WPL ARI147715A
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
Following Parts Not Illustra
WPL ARI147717A
8003RP Whirlpool Refrigerator 25' 1/4" Copper Water Supply Line Kit
Enamel, Black (1 Qt. Uncut)
350942 Whirlpool Spray Paint
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
833938 Whirlpool Refrigerator Terminal
CEMENT, ALUMILASTIC (1 1/4 OZ.)
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
TAPE, VINYL (3/4 X 108“)
212643 Whirlpool Refrigerator Permagum Sealer

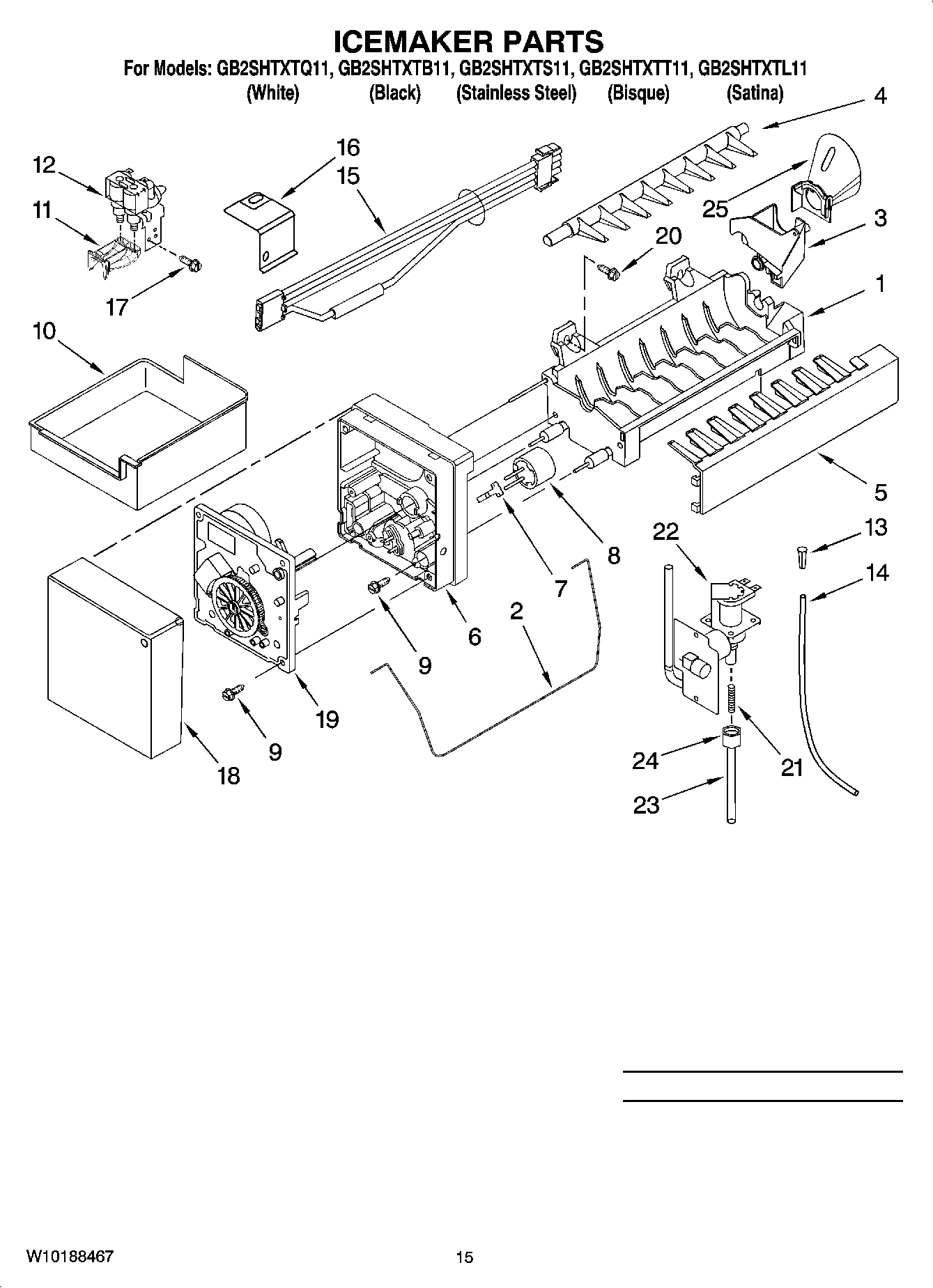

1Mold & Heater Assembly (Not Available Order D7824706Q)
2ARM-SHUT
3Inlet, Water
4Ejector
5Ice Stripper
6Support & Motor Assembly
7Retainer, Thermostat
8Thermostat (Not Available Order D7824706Q)
9Screw, (2) 10-32 x 49/64
10WP67001255 Whirlpool Ice Bucket
1112831101 Whirlpool Refrigerator Tube Clamp
12WP67006531 Whirlpool Water Inlet Valve
13WPA3223101 Whirlpool Refrigerator Insert PL
14WPB5705307 Whirlpool Refrigerator Tube
15WPD7813010 Whirlpool Refrigerator Wire Harness
16Control, Temperature
17WP489128 Whirlpool Refrigerator Screw
18WPW10289690 Whirlpool Ice Maker Cover
19Module Assembly (Not Available Order D7824706Q)
20WP98165 Whirlpool Screw
21SPRING
22WP67003753 Whirlpool Refrigerator Inlet Valve
23W10823511 Whirlpool Refrigerator Water Tube
24WP627018 Whirlpool Refrigerator Nut
2512918001 Whirlpool Refrigerator Funnel
100D7824706Q Whirlpool Refrigerator Ice Maker Assembly
