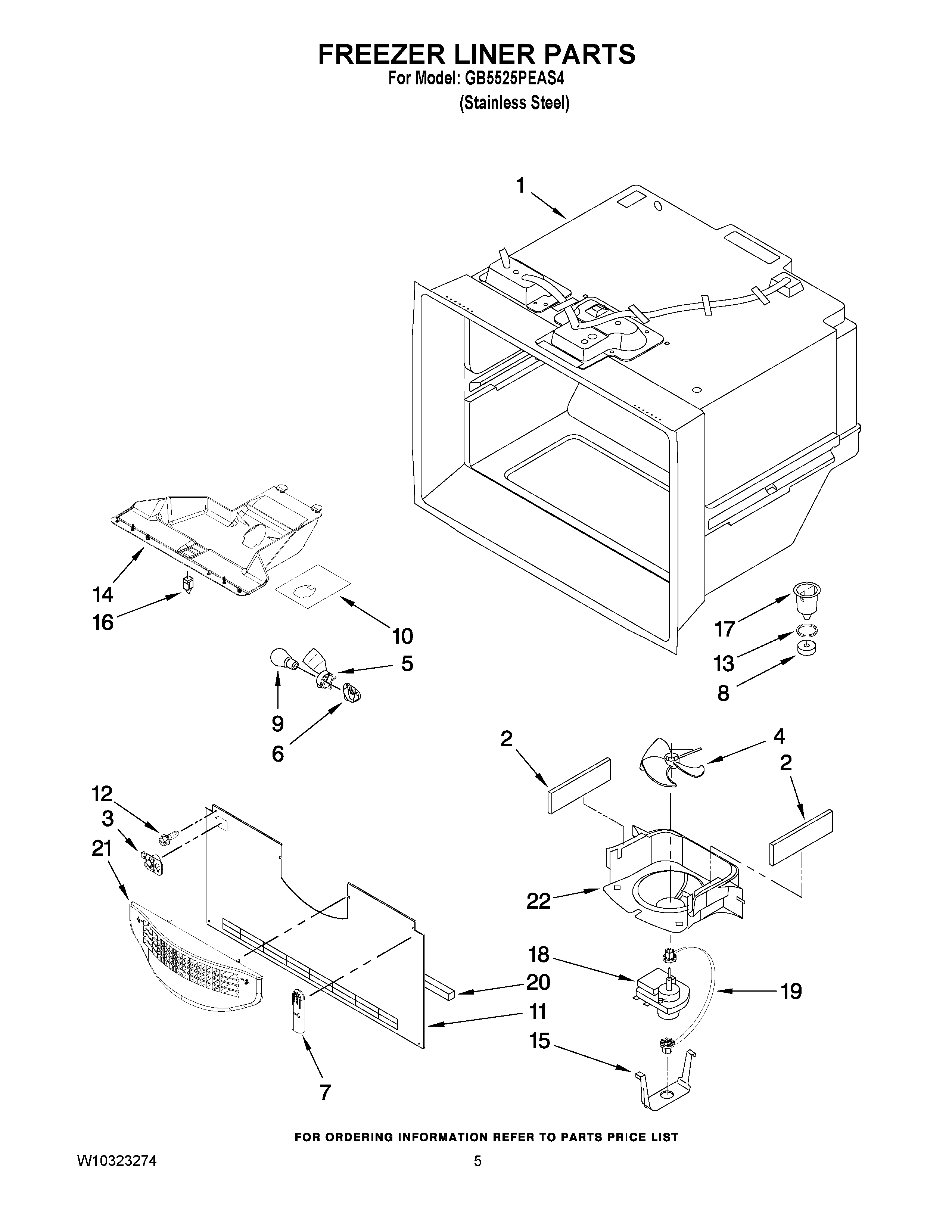

GB5525PEAS4 03 – FREEZER LINER PARTS

GB5525PEAS4 03 – FREEZER LINER PARTS

Written by

in

GB5525PEAS4 03 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	MAY 12932103
4	Blade, Fan (Evaporator)
5	SHROUD-LGHT SOCKET
6	MAY W10134764V
7	MAY 12815301
8	Gasket
9	MAY A0282808V
10	FOIL-FZ LIGHT
11	MAY W10308419
12	MAY 12990101
13	MAY M0500703
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466114
17	MAY D7753903
18	MAY 10449516
19	MAY W10121318
20	MAY 12739111
21	Grille, Fz Air
22	SHROUD, EVAP.FAN
