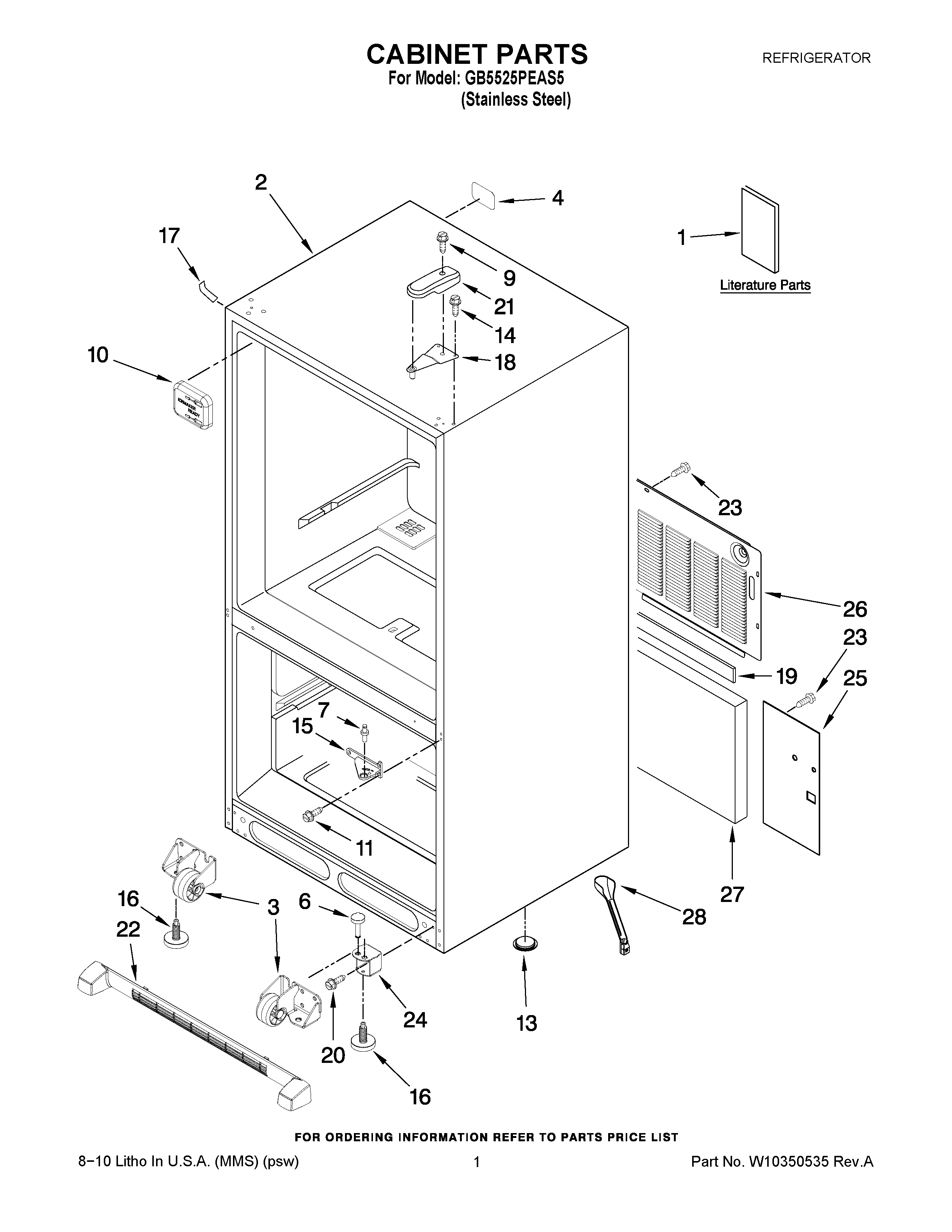

GB5525PEAS5 01 – CABINET PARTS

GB5525PEAS5 01 – CABINET PARTS

Written by

in

GB5525PEAS5 01 – CABINET PARTS

Products

PositionProduct
1MAY 12828189SP
1MAY W10308619
2LINER (NOT A SERVICEABLE PART)
3ROLLER ASSY. (FRONT) (LEFT)
3ROLLER ASSY. (FRONT) (RIGHT)
4LABEL-FILL TUBE
6MAY 10200802
7PIN, CENTER HINGE (REAR)
9MAY 12992602
10COVER-FILL TUBE
11SCREW (6)
13A3076901 Whirlpool Refrigerator Plug
14SCREW (6)
15MAY 12607104ED
16Brake, Foot
17COVER, CORNER (BLACK)
18MAY 12566606ED
19MAY B5759655
20Screw (8)
21COVER, HINGE(BLACK)
22Grille Assembly (Black)
23SCREW (10)
24MAY W10325141
25MAY W10217701
26MAY W10211980
27Insulation, Sound
28MAY W10210987
