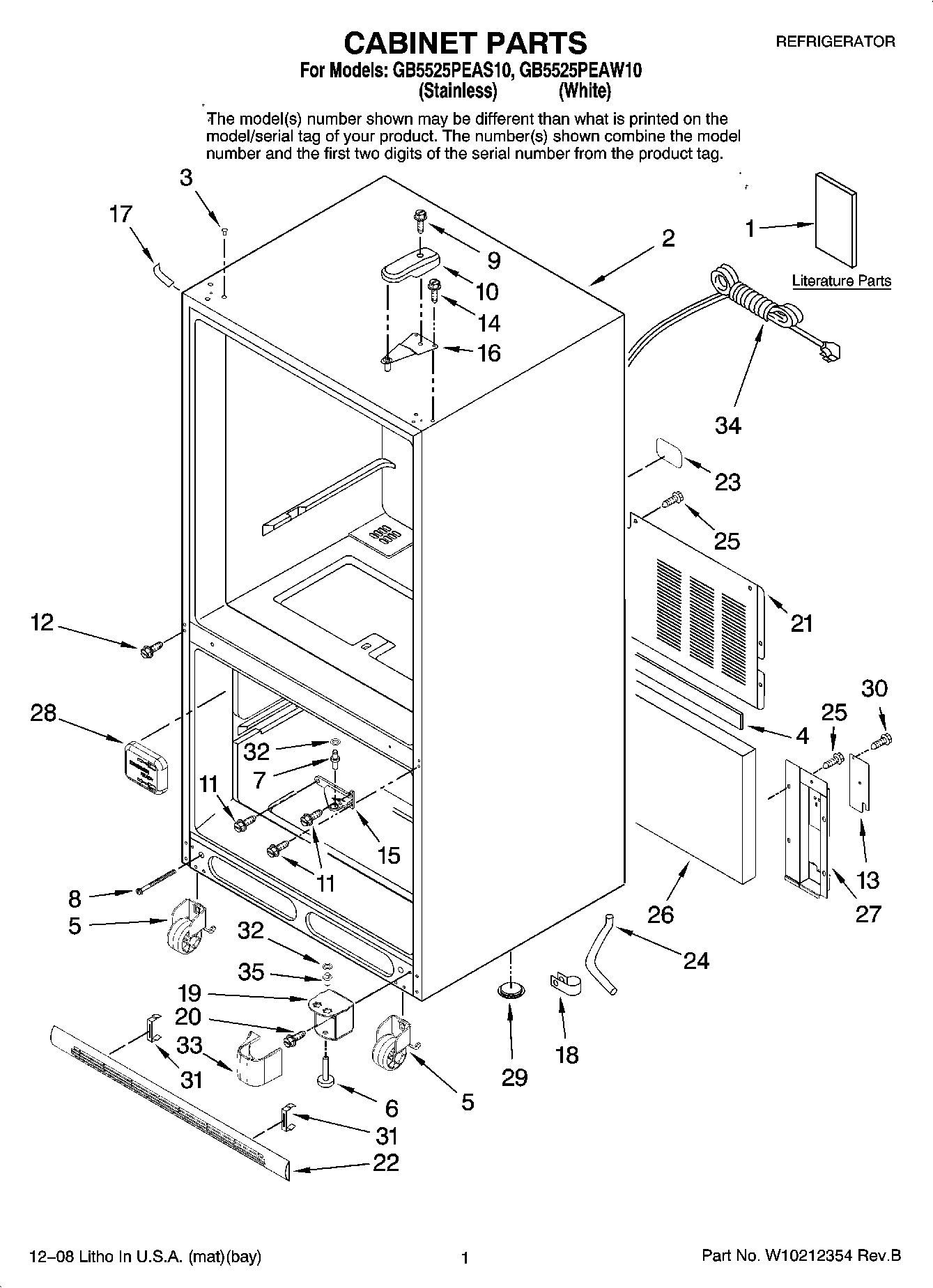

GB5525PEAW10 01 – CABINET PARTS

Products

Position	Product
1	Owners Manual
1	MAY 12827958
3	MAY M0310729
3	MAY M0310731
4	Gasket
5	Roller Assy.(Rear)
6	W11177593 Whirlpool Leveling Feet
7	WP67006744 Whirlpool Refrigerator Center Pin
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	67001014 Whirlpool Refrigerator Top Hinge Cover White
10	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
11	WP67006380 Whirlpool Screw
12	MAY 67005822
13	MAY 12479902
14	WP489349 Whirlpool Refrigerator Screw
15	MAY 12607104ED
15	WP12607103WD Whirlpool Refrigerator Center Hinge
16	Hinge, Top
17	67003484 Whirlpool Refrigerator White Corner Cover
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	MAY W10157973
19	MAY W10215662
19	12465002WD Whirlpool Refrigerator Bottom Hinge
20	MAY 67006564
21	MAY 12575101WD
22	Grille Assembly (Includes Clips) (White)
22	Grille Assembly (Includes Clips) (Black)
23	MAY 67005064
24	MAY W10164397
25	Screw (10)
26	67003796 Whirlpool Refrigerator Fiber Acoustic
27	MAY W10132512
28	WP67001098 Whirlpool Refrigerator Tube Cover
29	A3076901 Whirlpool Refrigerator Plug
30	MAY 67006662
31	Clip, Grille
32	MAY M0274057
32	MAY M0274062
33	Cover, Lw Hinge (Black)
33	MAY 12561901W
34	MAY 13015202
35	67007018 Whirlpool Refrigerator Bottom Hinge PIN
