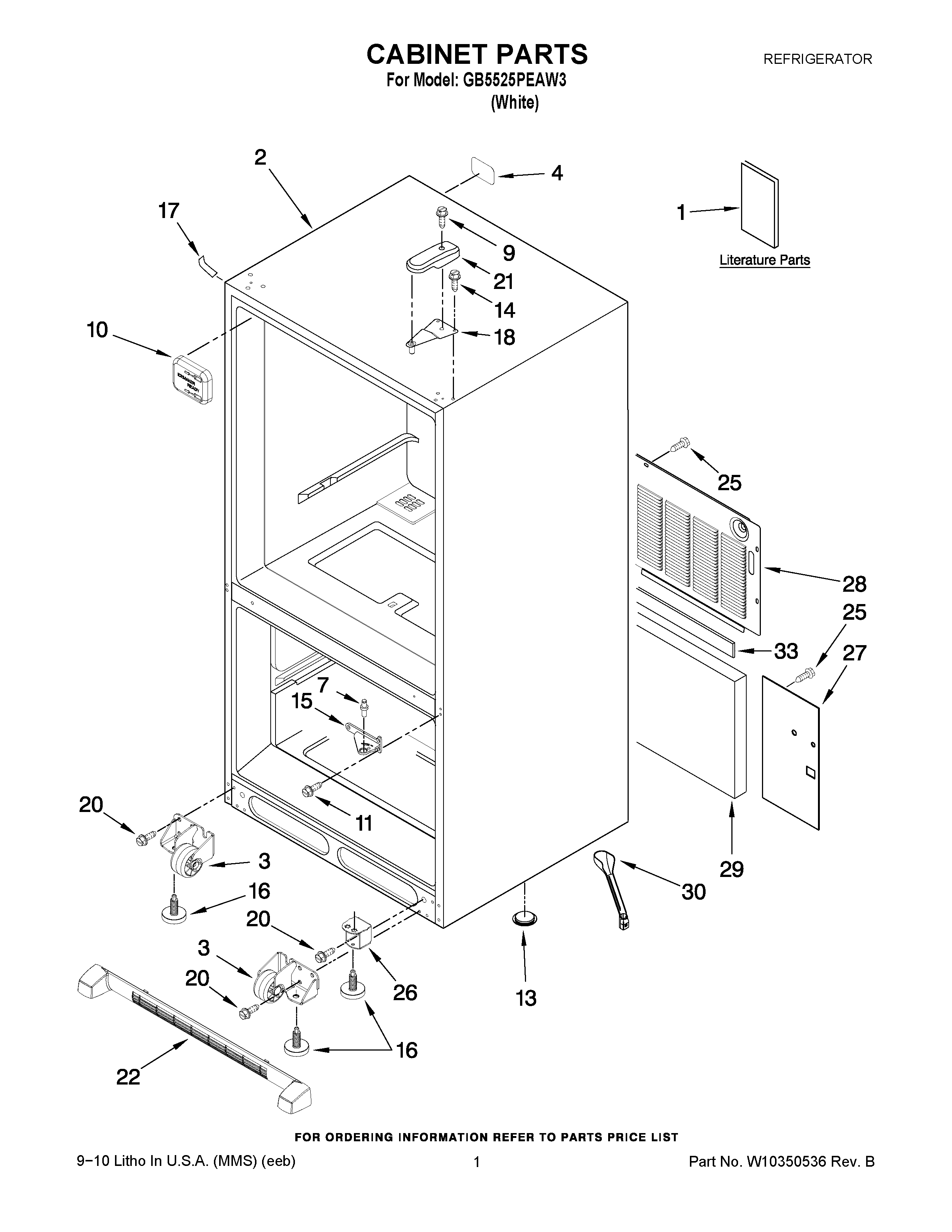

GB5525PEAW3 01 – CABINET PARTS

Products

Position	Product
1	MAY W10308619
1	MAY 12828189SP
2	LINER (NOT A SERVICEABLE PART)
3	ROLLER ASSY. (FRONT) (RIGHT)
3	ROLLER ASSY. (FRONT) (LEFT)
4	LABEL-FILL TUBE
7	PIN, CENTER HINGE (REAR)
9	MAY 12992602
10	COVER-FILL TUBE
11	SCREW (6)
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607103WD
16	Brake, Foot
17	Cover, Corner (2) (White)
18	MAY 12566606ED
20	Screw (8)
21	MAY 12477601W
22	Grille Assembly (White)
25	SCREW (10)
26	MAY W10315062
27	MAY W10217701
28	MAY W10211980
29	Insulation, Sound
30	MAY W10210987
33	MAY B5759655
