GB5525PEAW3 03 – FREEZER LINER PARTS – Aparts

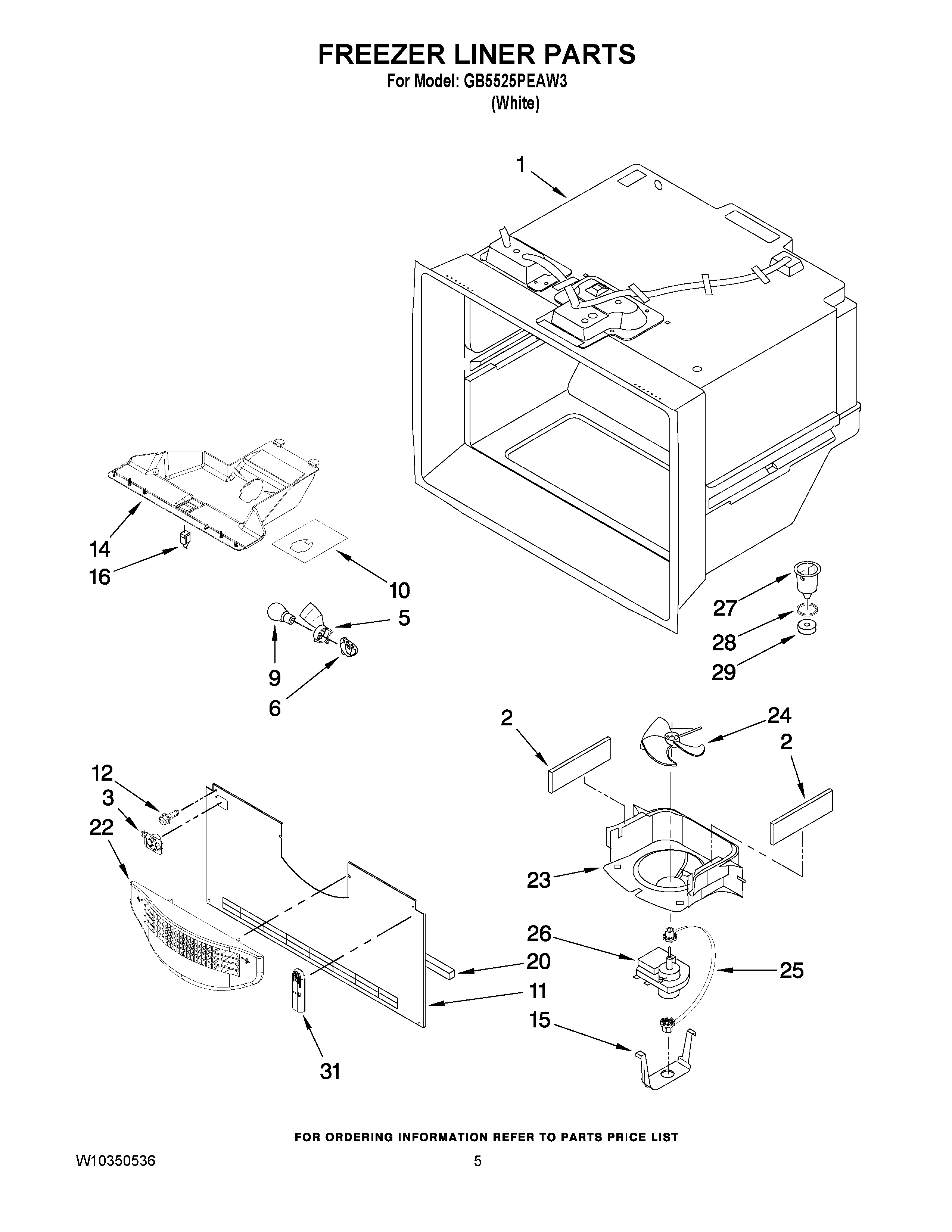

GB5525PEAW3 03 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	MAY 12932103
5	SHROUD-LGHT SOCKET
6	MAY W10134764V
9	MAY A0282808V
10	FOIL-FZ LIGHT
11	MAY 12226115
12	MAY 12990101
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466114
20	MAY 12739111
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY 10449516
27	MAY D7753903
28	MAY M0500703
29	Gasket
31	MAY 12815301
