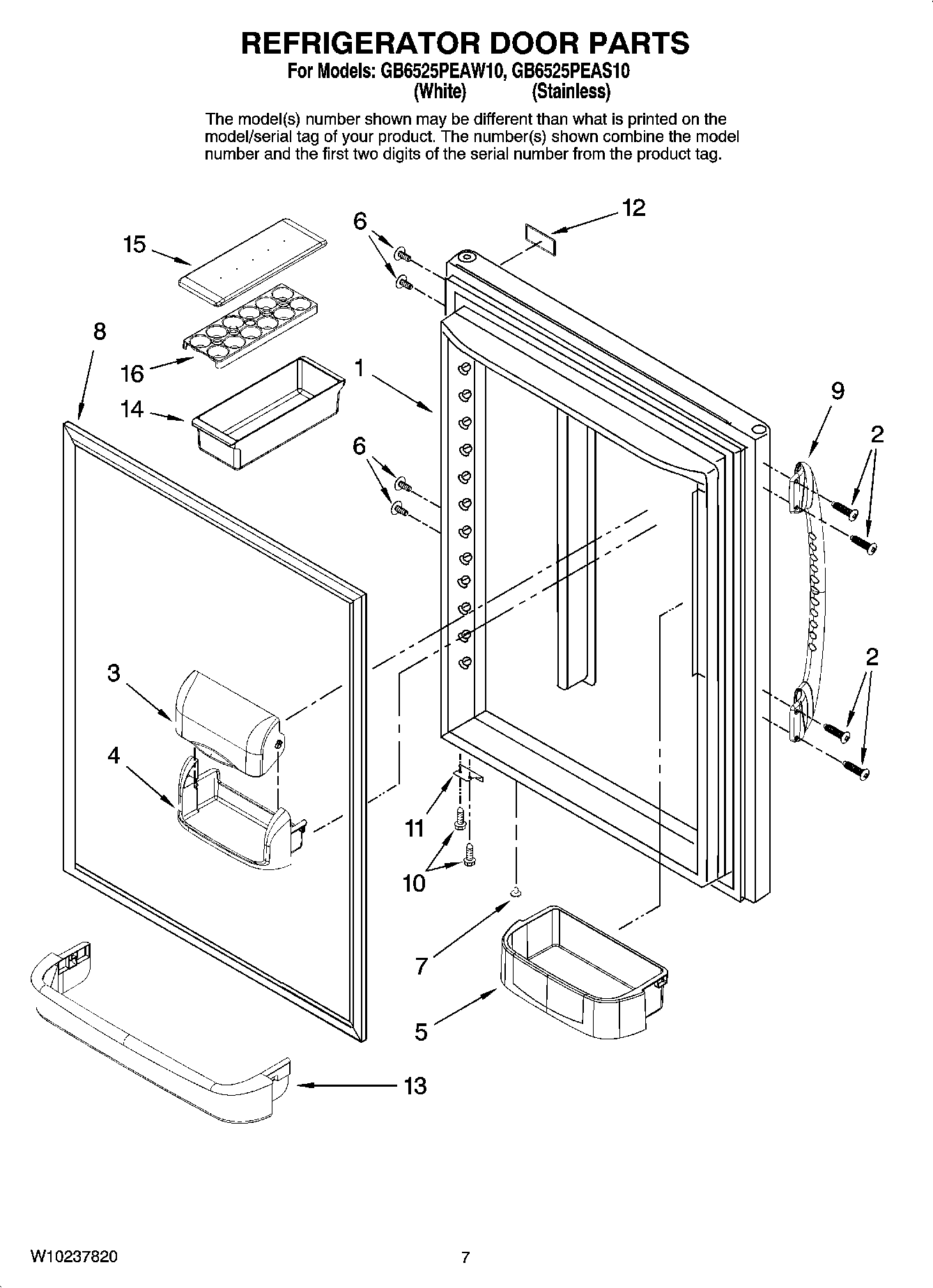

GB6525PEAS10 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR ASSY., REF. FOAM (WHT)
1	MAY 13023841SQ
2	MAY 67007083
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	67004040 Whirlpool Refrigerator Bucket Door
6	12991101 Whirlpool Refrigerator Screw
6	MAY 12991103
7	10712401 Whirlpool Refrigerator Vent Plug (White)
7	67004838 Whirlpool Refrigerator Button Vent Plug
8	GASKET, DOOR MAGNETIC (WHITE)
8	GASKET, DOOR MAGNETIC (BLACK)
9	MAY 12846204S
9	MAY 67006119
10	WP98165 Whirlpool Screw
11	W11708403 Whirlpool Door Stop
11	12968202W Whirlpool Refrigerator Door Stop
12	BEZEL, NAMEPLATE (WHT)
12	BEZEL, NAMEPLATE (BLK)
13	RETAINER, DOOR
14	MAY 10423131
15	MAY 10436404
16	MAY 10436506
