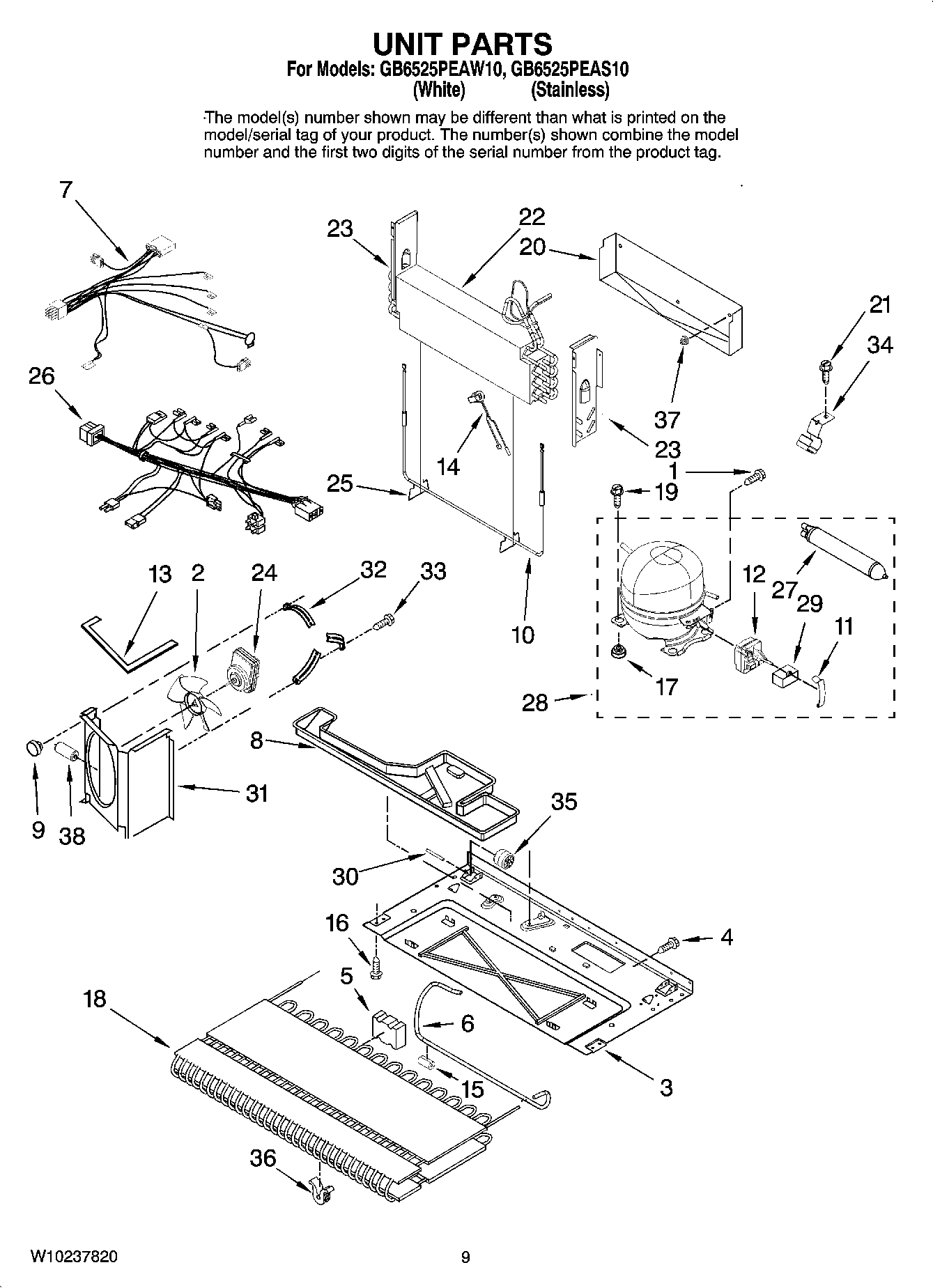

GB6525PEAW10 06 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/16“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
1	MAY 67006433
2	MAY W10162928
3	BASEPAN, MACHINE COMPARTMENT
4	Screw (10)
5	MAY 67005491
6	MAY 67004262
7	MAY W10169651
8	Drain Pan
9	GROMMET, BRACKET
10	MAY 12729119
11	MAY 67007052
12	Overload/Relay (Service)
12	MAY 67006453
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	Thermostat, Def.
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	Screw (4)
17	67003493 Whirlpool Refrigerator Compressor Grommet
18	WP67006132 Whirlpool Refrigerator Condenser
19	MAY 67006432
20	TRAY, DRIP E-CT
21	SCREW
22	Evaporator
23	MAY 67001084
23	MAY 67001083
24	MAY W10211284
25	W11673433 Whirlpool Clip
26	MAY W10169655
27	Drier
28	MAY 12049773
29	MAY 67007162
30	67006434 Whirlpool Axle Pin
31	Shroud, Condenser
32	MAY 67004953
33	WP67004954 Whirlpool Refrigerator Screw
34	MAY 10547003
35	WP67005149 Whirlpool Roller
36	GROMMET, COND (4)
37	MAY 10623002
38	MAY 12689303SP
