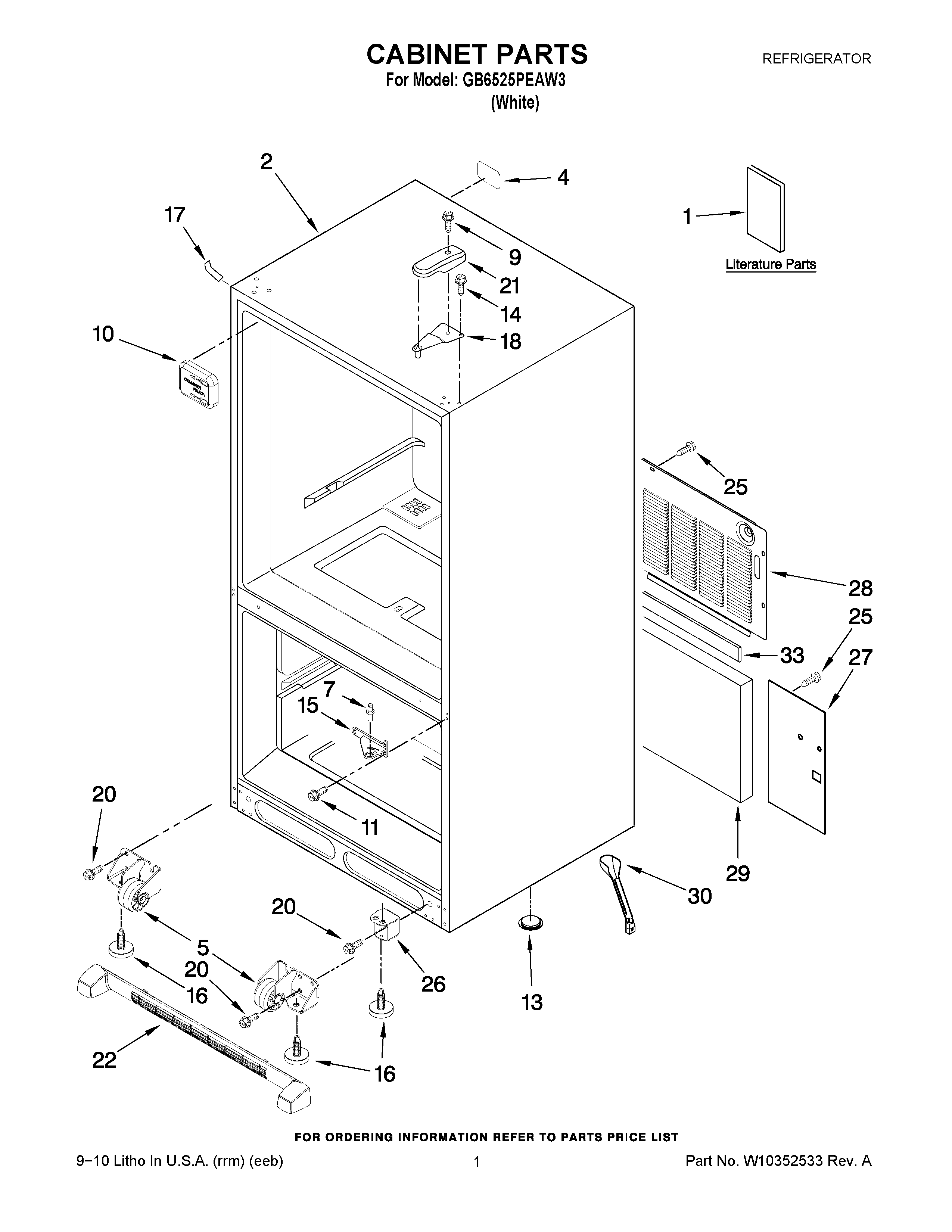

GB6525PEAW3 01 – CABINET PARTS

Products

Position	Product
1	MAY W10308619
1	MAY 12828189SP
2	LINER (NOT A SERVICEABLE PART)
4	LABEL-FILL TUBE
5	ROLLER ASSY. (FRONT) (RIGHT)
5	ROLLER ASSY. (FRONT) (LEFT)
7	PIN, CENTER HINGE (REAR)
9	MAY 12992602
10	COVER-FILL TUBE
11	SCREW (6)
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607103WD
16	Brake, Foot
17	Cover, Corner (2) (White)
18	MAY 12566606ED
20	Screw (8)
21	MAY 12477601W
22	MAY W10236195
25	SCREW (10)
26	MAY W10315062
27	MAY W10217701
28	MAY W10212535
29	Insulation, Sound
30	MAY W10210988
33	MAY B5759655
