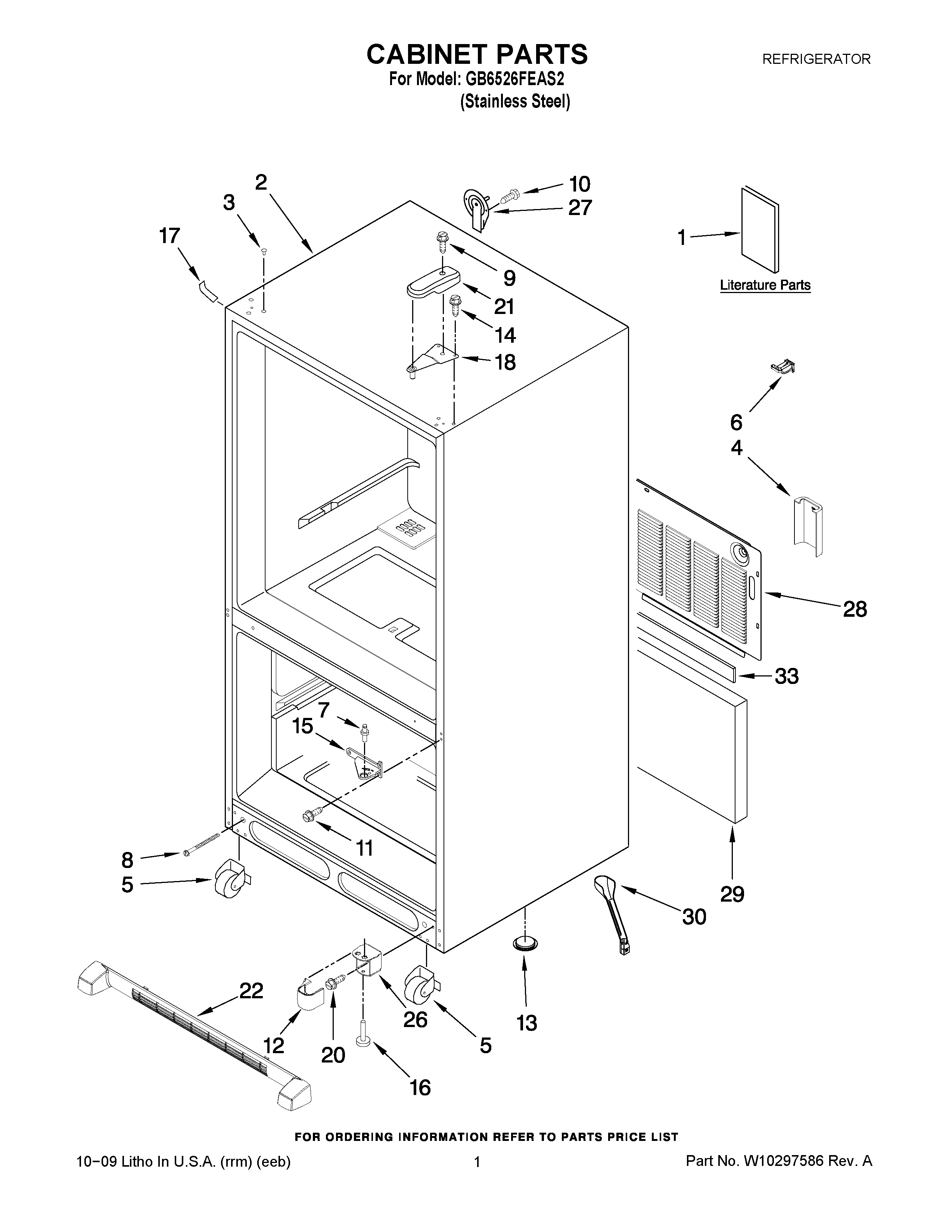

GB6526FEAS2 01 – CABINET PARTS

Products

Position	Product
1	MAY 12828189SP
1	MAY W10239599
2	LINER (NOT A SERVICEABLE PART)
3	MAY M0310731
4	GUARD-WATER VALVE
5	ROLLER ASSY.(REAR)
6	MAY W10216614
7	PIN, CENTER HINGE (REAR)
8	Bolt, Adjusting (Rear)
9	MAY 12992602
10	MAY 12990504
11	SCREW (6)
12	Cover, Lw Hinge (Black)
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607104ED
16	Foot Brake (2)
17	COVER, CORNER (BLACK)
18	MAY 12566606ED
20	Screw (8)
21	COVER, HINGE(BLACK)
22	MAY 12734401B
26	MAY 12465005ED
27	MAY 12726003
28	MAY W10212535
29	Insulation, Sound
30	MAY W10210988
33	MAY B5759655
