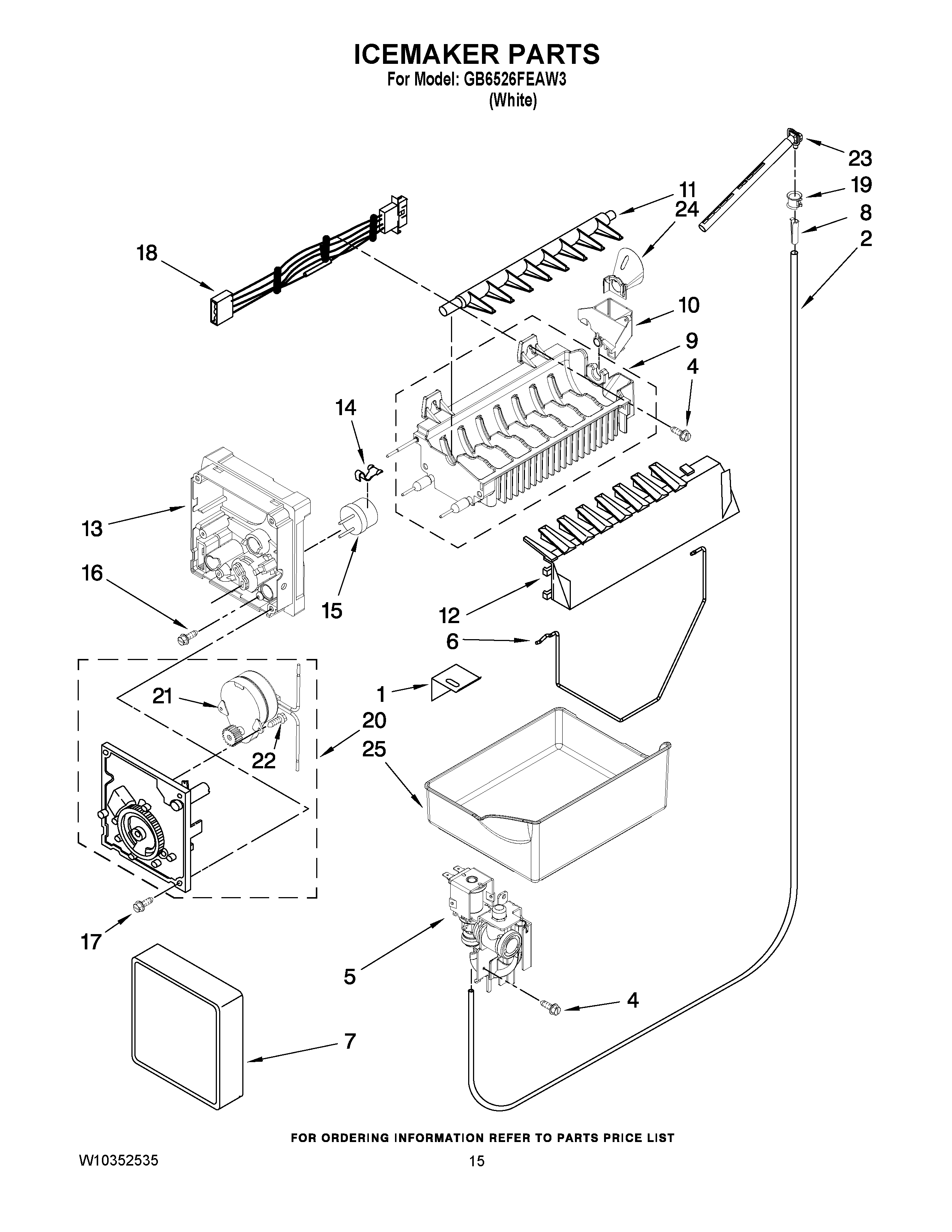

GB6526FEAW3 08 – ICEMAKER PARTS

Products

Position	Product
1	Bracket, Ice Maker
2	TUBING, PLASTIC
5	MAY W10158153
6	ARM-SHUT OFF
7	Cover
8	MAY A3223101SP
9	Mold & Heater Assembly (Also Order 542638 Grease)
10	Cup, Fill
11	MAY 627843
12	ICE STRIPPER
13	MAY 2194712
14	MAY 2315522
15	Thermostat (Also Order 542369 Cement)
16	Screw (2)
17	Screw (3)
18	MAY 12975112
19	CLIP
20	MAY W10122522
21	LINER (NOT A SERVICEABLE PART)
22	MAY W10001220
23	MAY 10463203SP
24	MAY 12918001
25	MAY 12695001N
100	ICEMAKER ASSEMBLY
