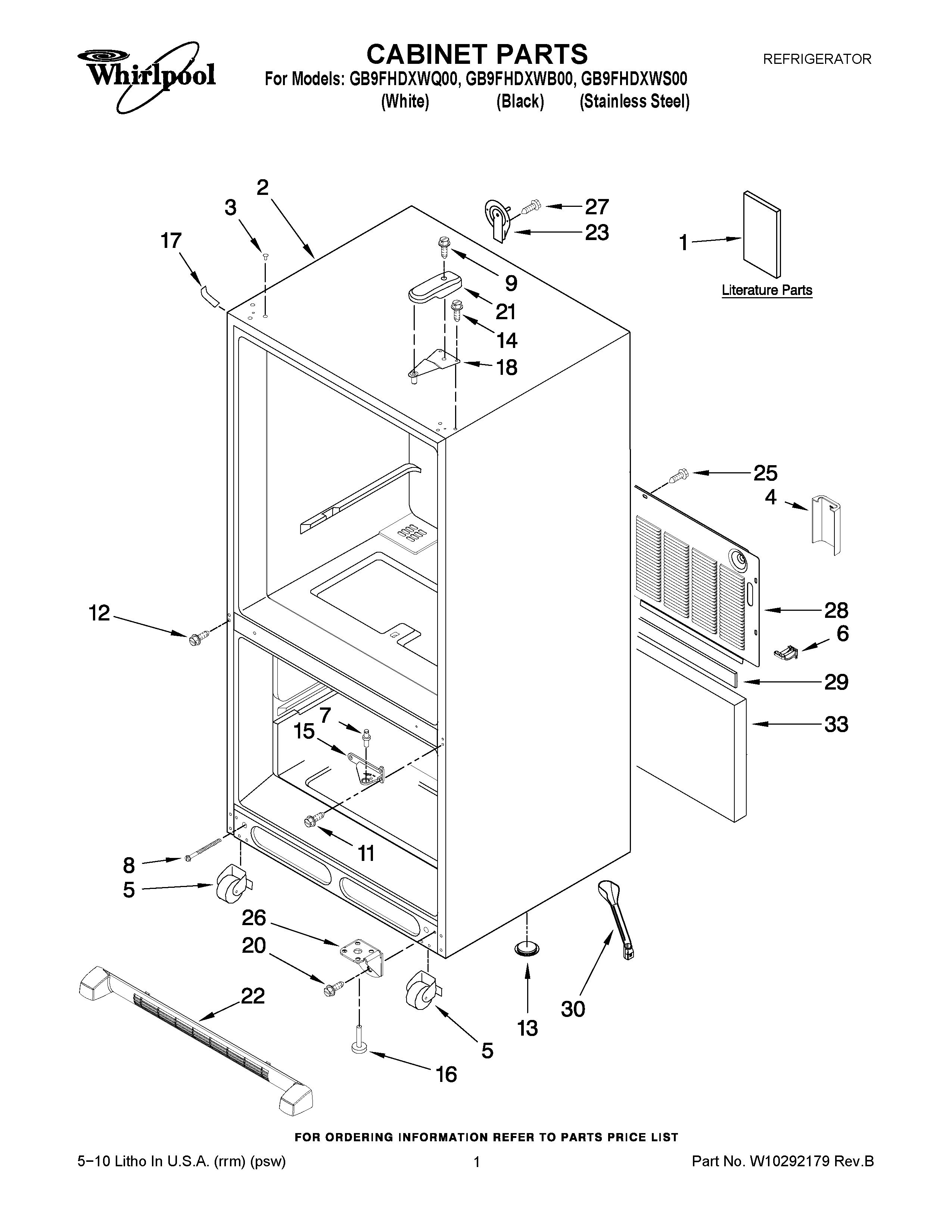

GB9FHDXWS00 01 – CABINET PARTS

Products

Position	Product
1	TECH SHEET
1	ENERGY TAG
1	Use & Care Guide
2	CABINET (NOT A SERVICEABLE PART)
3	WP67001130 Whirlpool Refrigerator White Button Plug
3	Plug, Button (3) (Black)
4	W10208592 Whirlpool Refrigerator Valve Cover
5	ROLLER ASSY.(REAR)
6	SWEEP, WATER VALVE
7	WP67006642 Whirlpool Refrigerator Pin
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
11	WP67006380 Whirlpool Screw
13	A3076901 Whirlpool Refrigerator Plug
14	WP489349 Whirlpool Refrigerator Screw
15	WP12607103WD Whirlpool Refrigerator Center Hinge
15	WP12607104ED Whirlpool Refrigerator Door Hinge
16	W11177593 Whirlpool Leveling Feet
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	12587703W Whirlpool Refrigerator Cover
18	WP12566606ED Whirlpool Refrigerator Door Hinge
20	67006564 Whirlpool Refrigerator Screw
21	67001014 Whirlpool Refrigerator Top Hinge Cover White
21	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
22	WPW10534167 Whirlpool Refrigerator Front Grille
22	WPW10534166 Whirlpool Refrigerator Front Grille
23	12726003 Whirlpool Refrigerator Water Cover
25	67006425 Whirlpool Refrigerator Screw
26	12906303WD Whirlpool Refrigerator Bracket
27	WP98165 Whirlpool Screw
28	W10210978 Whirlpool Refrigerator Back Cover
29	B5759655 Whirlpool Refrigerator Gasket
30	W10619951 Whirlpool Drain Tube with Grommet
33	INSULATION, SOUND
