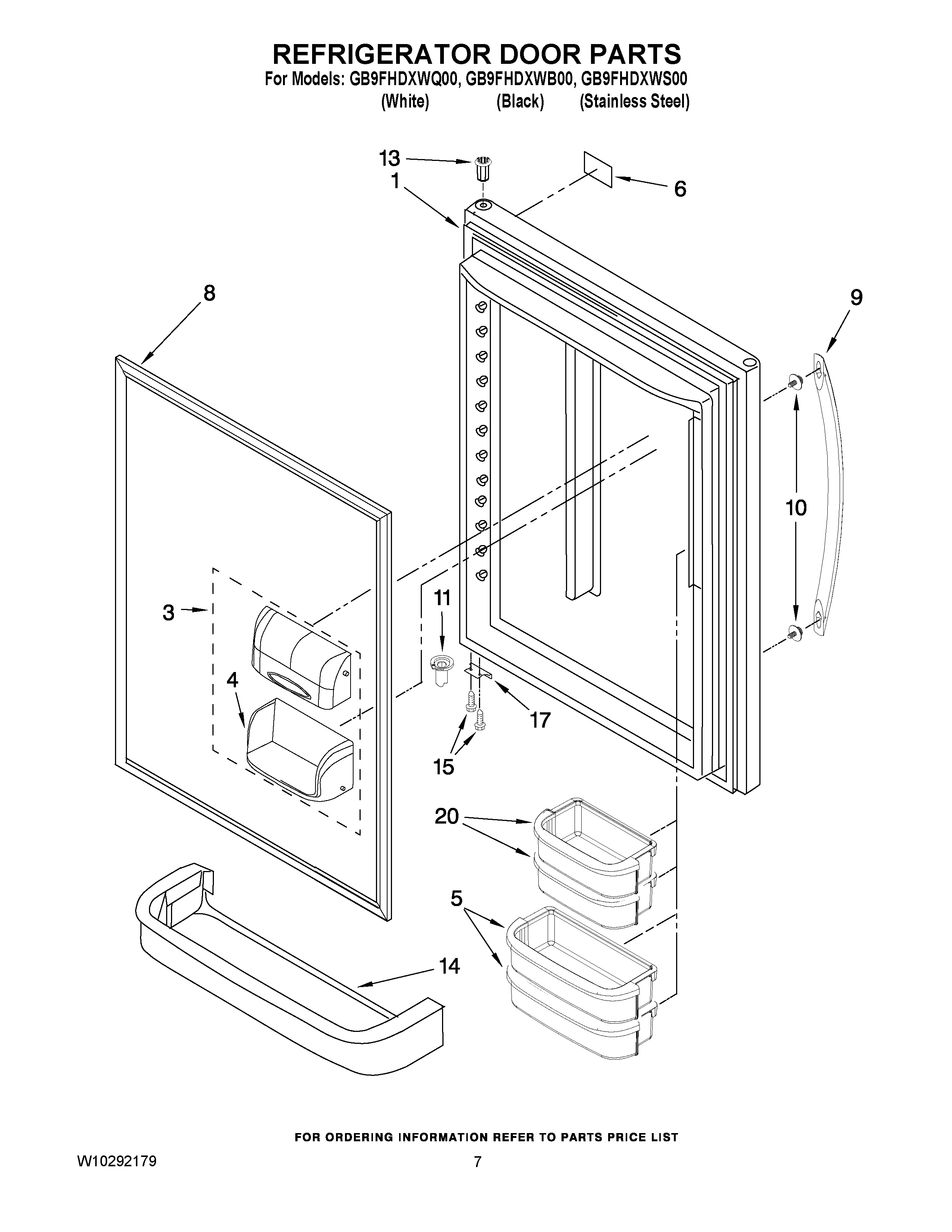

GB9FHDXWS00 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (w/ Insulation) (Stainless)
1	12658573WQ Whirlpool Refrigerator DOR-FIP White
1	Door, Refrigerator (Black)
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	Nameplate
8	WPW10436245 Whirlpool Refrigerator FIP Gasket
8	WPW10443309 Whirlpool Refrigerator Door Gasket
9	W11351147 Whirlpool Refrigerator Handle
9	WPW10222984K Whirlpool Refrigerator Handle Assembly
9	W11351146 Whirlpool Refrigerator Handle
10	WP12992902 Whirlpool Refrigerator Screw
11	WP67003639 Whirlpool Refrigerator Closer
11	WP67003638 Whirlpool Closing Cam
13	67004978 Whirlpool Refrigerator Black Door Bushing
13	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
14	67001139 Whirlpool Refrigerator Shelf Trim
15	WP98165 Whirlpool Screw
17	12968202W Whirlpool Refrigerator Door Stop
17	W11708403 Whirlpool Door Stop
20	WPW10351081 Whirlpool Refrigerator Cantilever Bin
