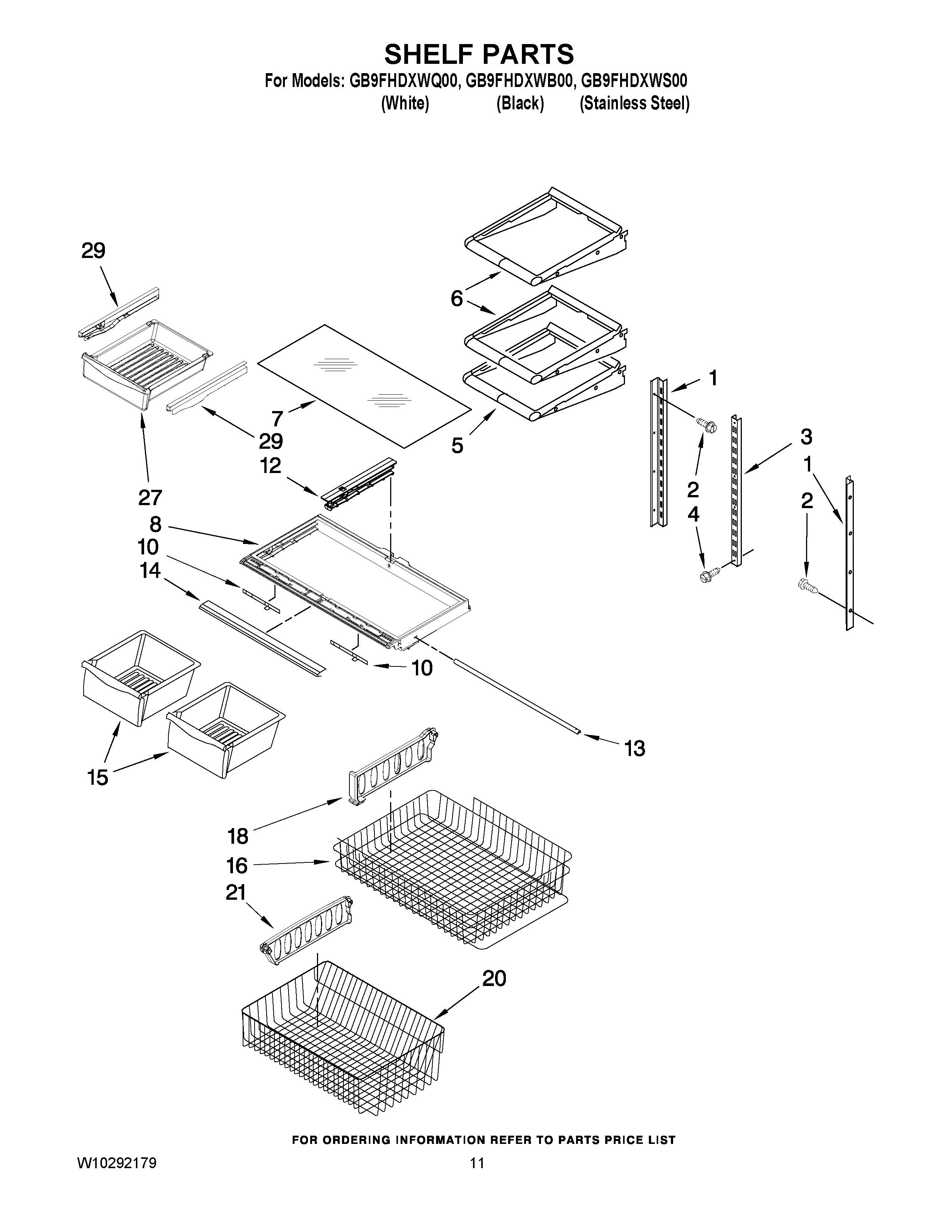

GB9FHDXWS00 06 – SHELF PARTS

Products

Position	Product
1	W10251970 Whirlpool Refrigerator Ladder
2	67006425 Whirlpool Refrigerator Screw
3	W10273463 Whirlpool Refrigerator Ladder
4	W10709795 Whirlpool Refrigerator Screw
6	W11402522 Whirlpool Refrigerator Glass Shelf
7	WP67006877 Whirlpool Refrigerator Glass Shelf
8	WPW10671240 Whirlpool Refrigerator Frame
10	SLIDE
12	RAIL-CENTR CRISPER
13	Whirlpool Refrigerator Shelf Support Liner
14	WPW10231481 Whirlpool Refrigerator Shelf Trim
15	W10833528 Whirpool Refrigerator Crisper Pan
16	BASKET, FREEZER UPPER
18	W10241046 Whirlpool Refrigerator Divider
20	W10503182 Whirlpool Refrigerator Freezer Basket
21	Divider, Basket (Lower)
27	WP67001308 Whirlpool Deli Drawer
29	WP67001054 Whirlpool Left Glide
29	WP67001053 Whirlpool Drawer Glide
