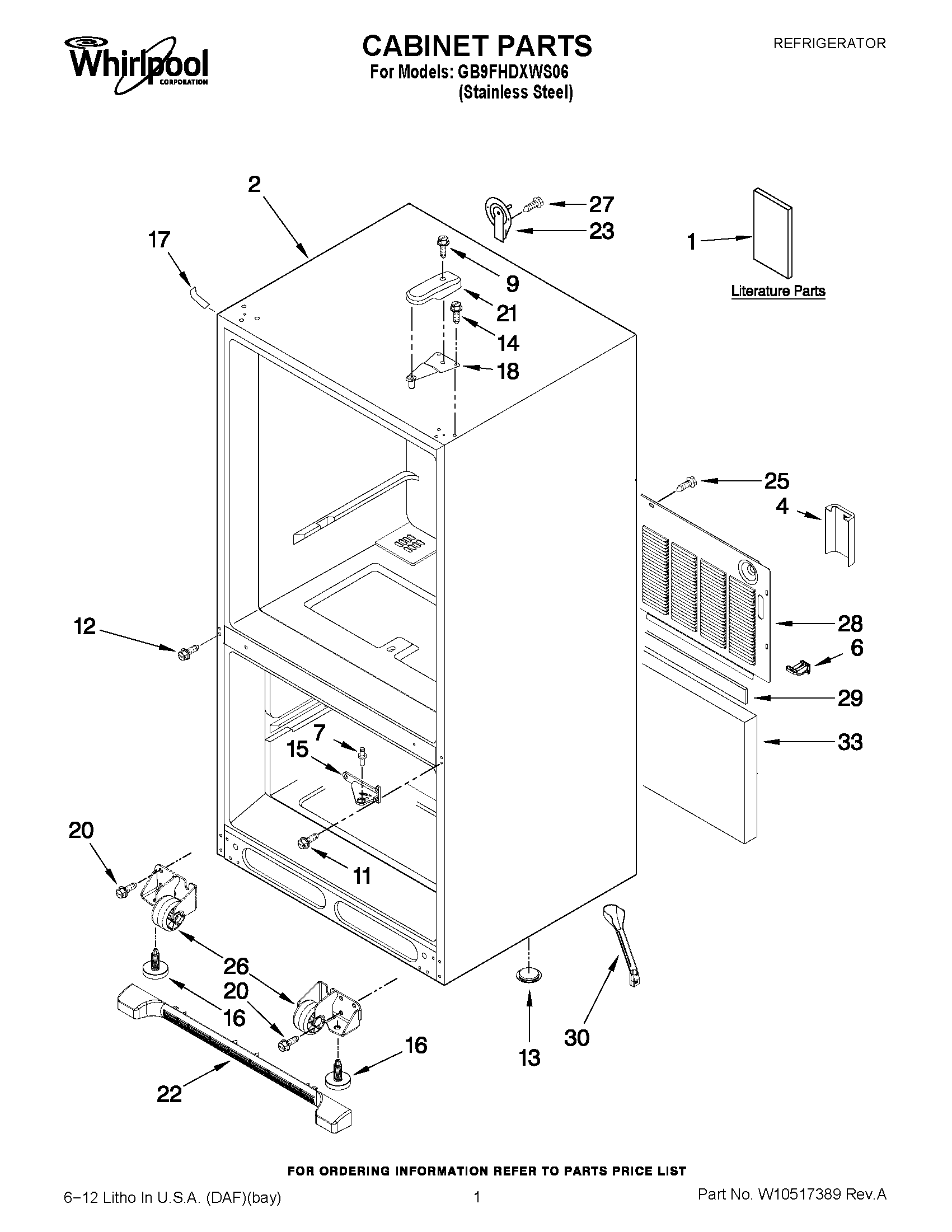

GB9FHDXWS06 01 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1ENERGY TAG
1USE & CARE GUIDE
2CABINET (NOT A SERVICEABLE PART)
4W10208592 Whirlpool Refrigerator Valve Cover
6SWEEP, WATER VALVE
7WP67006642 Whirlpool Refrigerator Pin
9WP8281196 Whirlpool Screw
11WP67006380 Whirlpool Screw
13A3076901 Whirlpool Refrigerator Plug
14WP489349 Whirlpool Refrigerator Screw
15WP12607104ED Whirlpool Refrigerator Door Hinge
16WPW10141622 Whirlpool Leveler
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18WP12566606ED Whirlpool Refrigerator Door Hinge
2067006564 Whirlpool Refrigerator Screw
2167001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
22WPW10534167 Whirlpool Refrigerator Front Grille
2312726003 Whirlpool Refrigerator Water Cover
2567006425 Whirlpool Refrigerator Screw
26WPW10515763 Whirlpool Refrigerator Cabinet Roller
26WPW10515762 Whirlpool Refrigerator Cabinet Roller
27WP98165 Whirlpool Screw
28W10210978 Whirlpool Refrigerator Back Cover
29B5759655 Whirlpool Refrigerator Gasket
30W10619951 Whirlpool Drain Tube with Grommet
33INSULATION, SOUND
