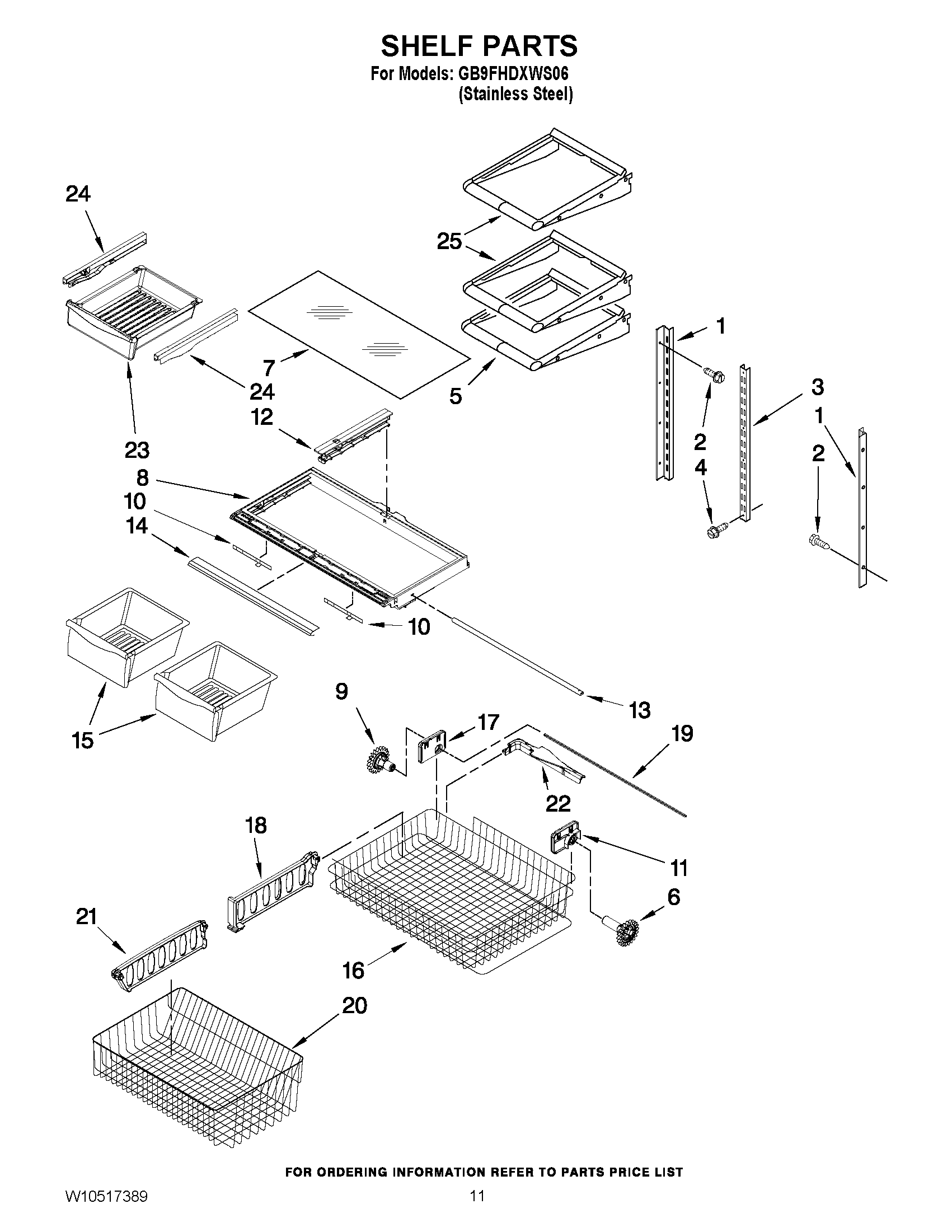

GB9FHDXWS06 06 – SHELF PARTS

Products

Position	Product
1	W10251970 Whirlpool Refrigerator Ladder
2	67006425 Whirlpool Refrigerator Screw
3	W10273463 Whirlpool Refrigerator Ladder
4	W10215666 Whirlpool Refrigerator Screw
6	WPW10474715 Whirlpool Refrigerator Gear
7	WP67006877 Whirlpool Refrigerator Glass Shelf
8	WPW10671240 Whirlpool Refrigerator Frame
9	WPW10474716 Whirlpool Refrigerator Gear
10	SLIDE
11	W10348260 Whirlpool Refrigerator Bracket
12	RAIL-CENTR CRISPER
13	Whirlpool Refrigerator Shelf Support Liner
14	WPW10231481 Whirlpool Refrigerator Shelf Trim
15	W10833528 Whirpool Refrigerator Crisper Pan
16	BASKET, FREEZER (UPPER)
17	W10348259 Whirlpool Refrigerator Bracket Assembly
18	W10241046 Whirlpool Refrigerator Divider
19	SHAFT, RACK
20	W10503182 Whirlpool Refrigerator Freezer Basket
21	W10847995 Whirlpool Divider Assembly
22	W10149389 Whirlpool Refrigerator Handle
23	WP67001308 Whirlpool Deli Drawer
24	WP67001054 Whirlpool Left Glide
24	WP67001053 Whirlpool Drawer Glide
25	W11402522 Whirlpool Refrigerator Glass Shelf
