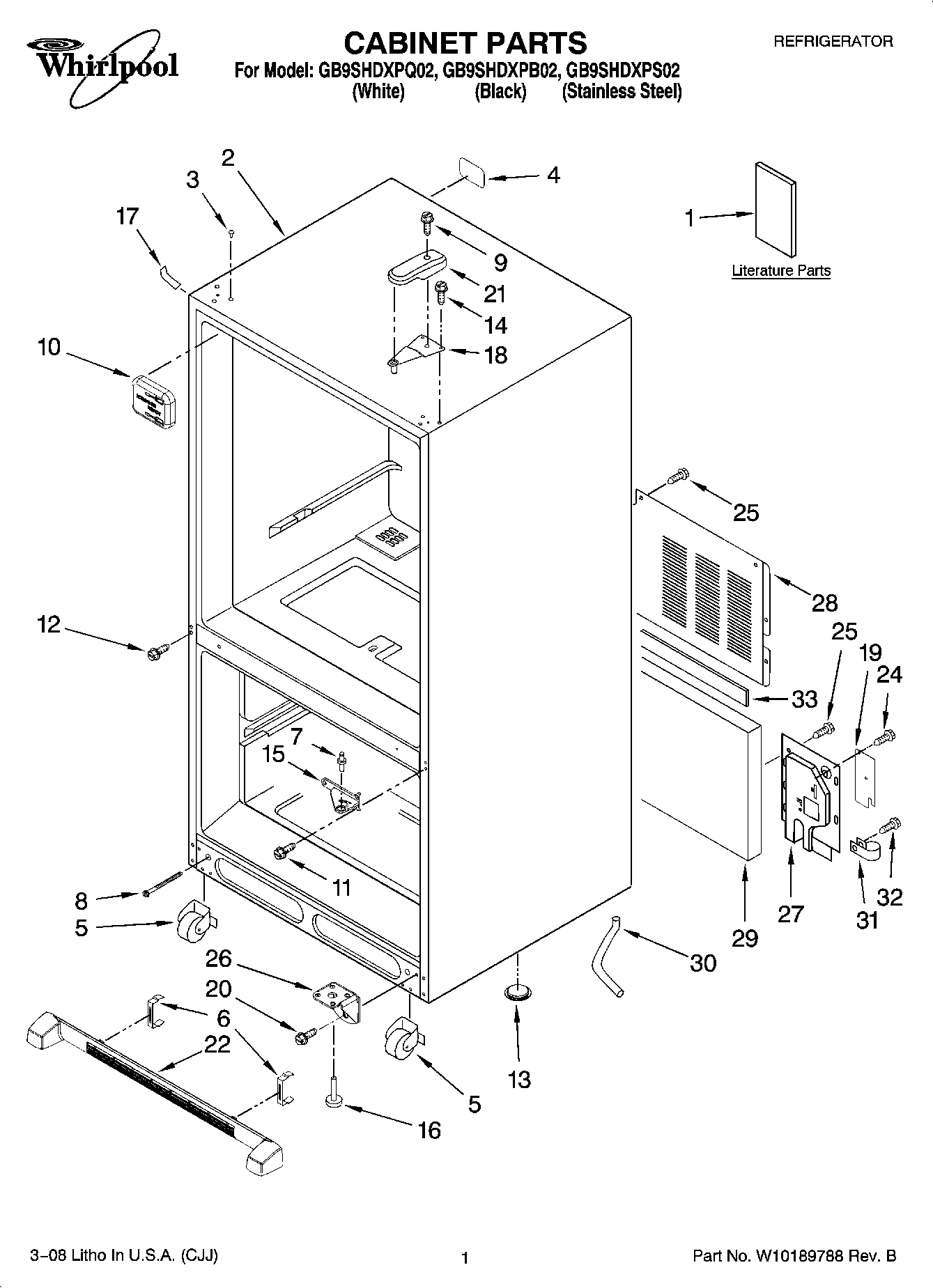

GB9SHDXPB02 01 – CABINET PARTS

Products

Position	Product
1	Owners Manual
1	Energy Tag
1	Tech Sheet
2	Cabinet (Not A Servicable Part)
3	WP67001130 Whirlpool Refrigerator White Button Plug
3	WP12246608 Whirlpool Refrigerator Button
4	Label, Fill Tube
5	Roller Assy.(Rear)
6	Clip, Grille
7	WP67006642 Whirlpool Refrigerator Pin
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	WP67001098 Whirlpool Refrigerator Tube Cover
11	WP67006380 Whirlpool Screw
12	WP98165 Whirlpool Screw
13	A3076901 Whirlpool Refrigerator Plug
14	WP489349 Whirlpool Refrigerator Screw
15	WP12607103WD Whirlpool Refrigerator Center Hinge
15	WP12607104ED Whirlpool Refrigerator Door Hinge
16	W11177593 Whirlpool Leveling Feet
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	67003484 Whirlpool Refrigerator White Corner Cover
18	WP12566606ED Whirlpool Refrigerator Door Hinge
19	Plate, Cover
20	67006564 Whirlpool Refrigerator Screw
21	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
21	67001014 Whirlpool Refrigerator Top Hinge Cover White
22	WPW10534166 Whirlpool Refrigerator Front Grille
22	WPW10534167 Whirlpool Refrigerator Front Grille
24	WP489128 Whirlpool Refrigerator Screw
25	67006425 Whirlpool Refrigerator Screw
26	Bracket, Foot
27	Cover, Water Valve
28	Cover, Unit
29	67003796 Whirlpool Refrigerator Fiber Acoustic
30	W10164397 Whirlpool Refrigerator Drain Tube
31	67001067 Whirlpool Refrigerator Drain Tube Clip
32	WP33001882 Whirlpool Screw
33	Gasket
