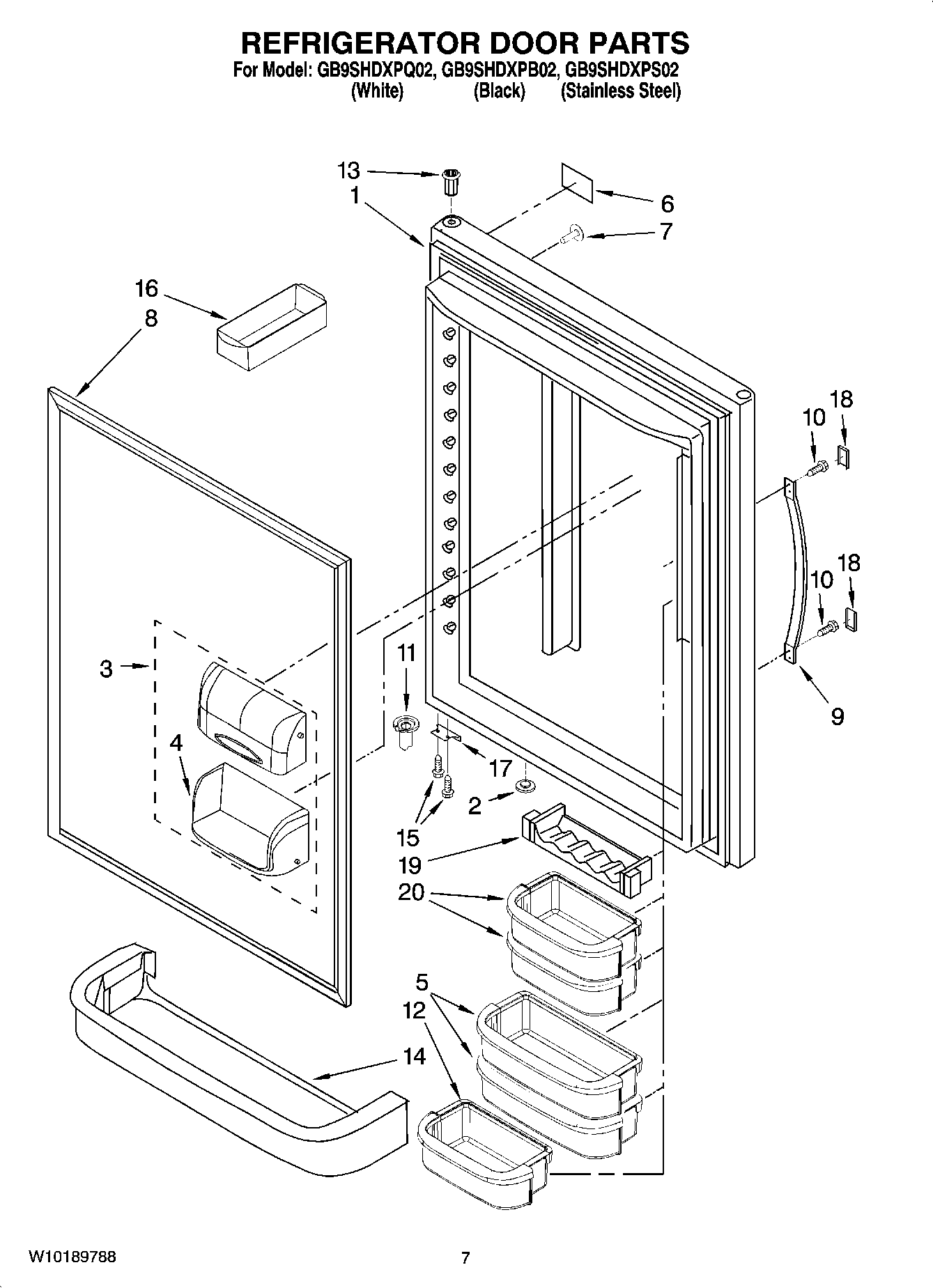

GB9SHDXPB02 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (w/ Insulation) (White)
1	Refrigerator Door (w/ Insulation) (Stainless Steel)
1	12658501BQ Whirlpool Refrigerator Foam In Place Bottom Line Door
2	10712401 Whirlpool Refrigerator Vent Plug (White)
2	67004838 Whirlpool Refrigerator Button Vent Plug
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	Nameplate
7	WP67001130 Whirlpool Refrigerator White Button Plug
7	WP12246608 Whirlpool Refrigerator Button
8	WPW10436245 Whirlpool Refrigerator FIP Gasket
8	WPW10443309 Whirlpool Refrigerator Door Gasket
9	WP2217185B Whirlpool Refrigerator Handle
9	Handle, Door (White)
10	W10709784 Whirlpool Refrigerator Handle Plug
11	WP67003638 Whirlpool Closing Cam
11	WP67003639 Whirlpool Refrigerator Closer
12	Bucket (1) (Short)
13	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
13	67004978 Whirlpool Refrigerator Black Door Bushing
14	Retainer, Door
15	WP98165 Whirlpool Screw
16	W10136387A Whirlpool Refrigerator Egg Container
17	12968202W Whirlpool Refrigerator Door Stop
17	W11708403 Whirlpool Door Stop
18	Trim, Handle (Black)
18	Trim, Handle (White)
19	WP67005626 Whirlpool Refrigerator Can Caddy
20	WPW10351081 Whirlpool Refrigerator Cantilever Bin
