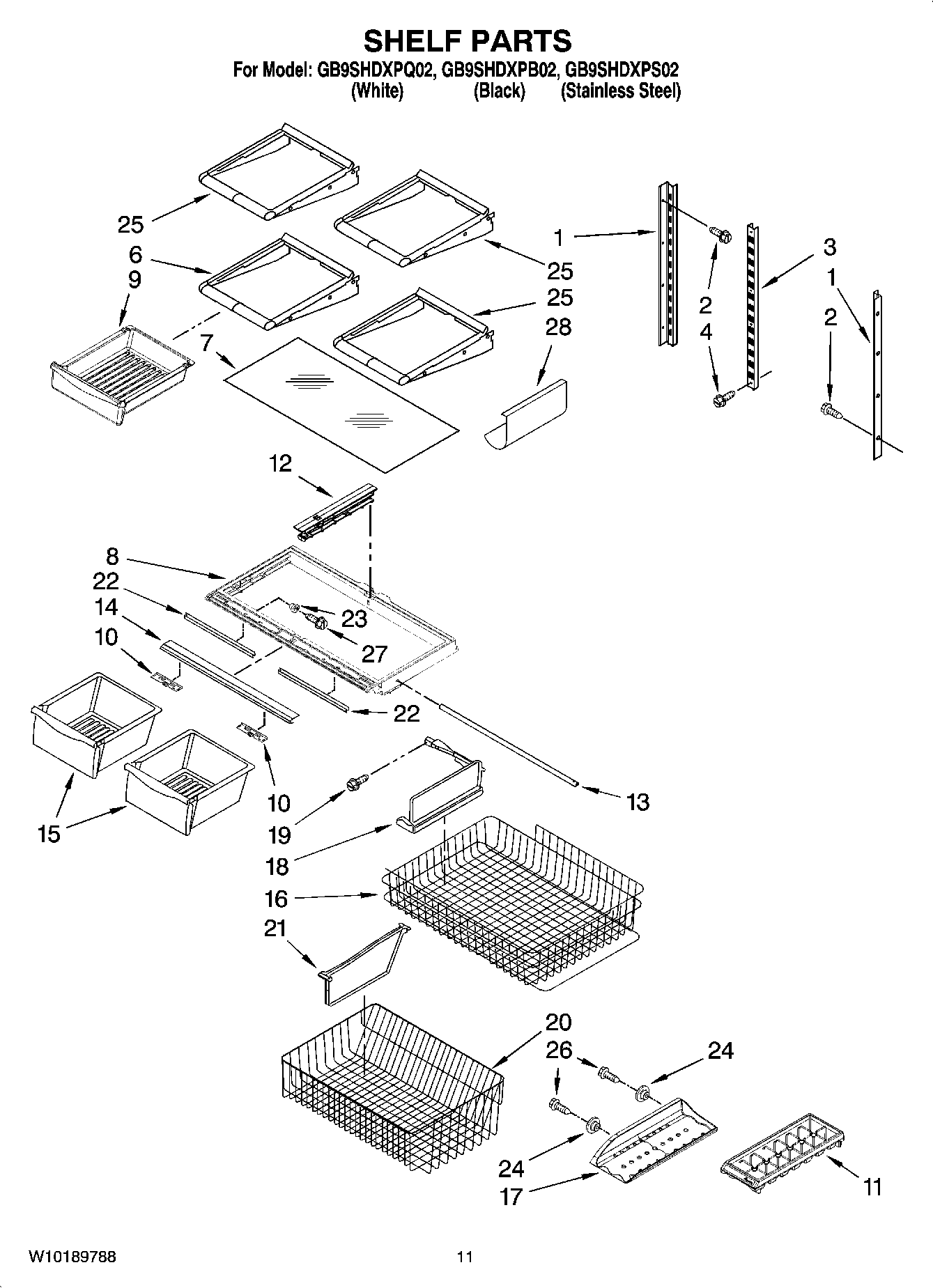

GB9SHDXPB02 06 – SHELF PARTSadmin2025-04-26T11:27:50+00:00GB9SHDXPB02 06 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | Ladder, Side |
| 2 | 67006425 Whirlpool Refrigerator Screw |
| 3 | Ladder, Center |
| 4 | W10709795 Whirlpool Refrigerator Screw |
| 7 | Glass, Crisper |
| 8 | Frame, Crisper |
| 9 | Pan, Meatkeeper |
| 10 | Knob, Control |
| 11 | WP841180A Whirlpool Microwave Glass Turntable Tray |
| 12 | RAIL-CENTR CRISPER |
| 13 | Whirlpool Refrigerator Shelf Support Liner |
| 14 | Trim, Crisper |
| 15 | Pan, Crisper (2) |
| 16 | Basket, Freezer (Upper) |
| 17 | Rack, Ice |
| 18 | Divider, Upper Basket |
| 19 | Screw |
| 20 | W10503182 Whirlpool Refrigerator Freezer Basket |
| 21 | Divider, Lower Basket |
| 22 | Seal, Crisper (2) |
| 23 | Roller (4) |
| 24 | WP10972101 Whirlpool Refrigerator Spacer |
| 25 | Shelf, Glide (3) |
| 26 | WP67006908 Whirlpool Refrigerator Screw |
| 27 | 67006692 Whirlpool Refrigerator Screw |
| 28 | Rack, Wine |
