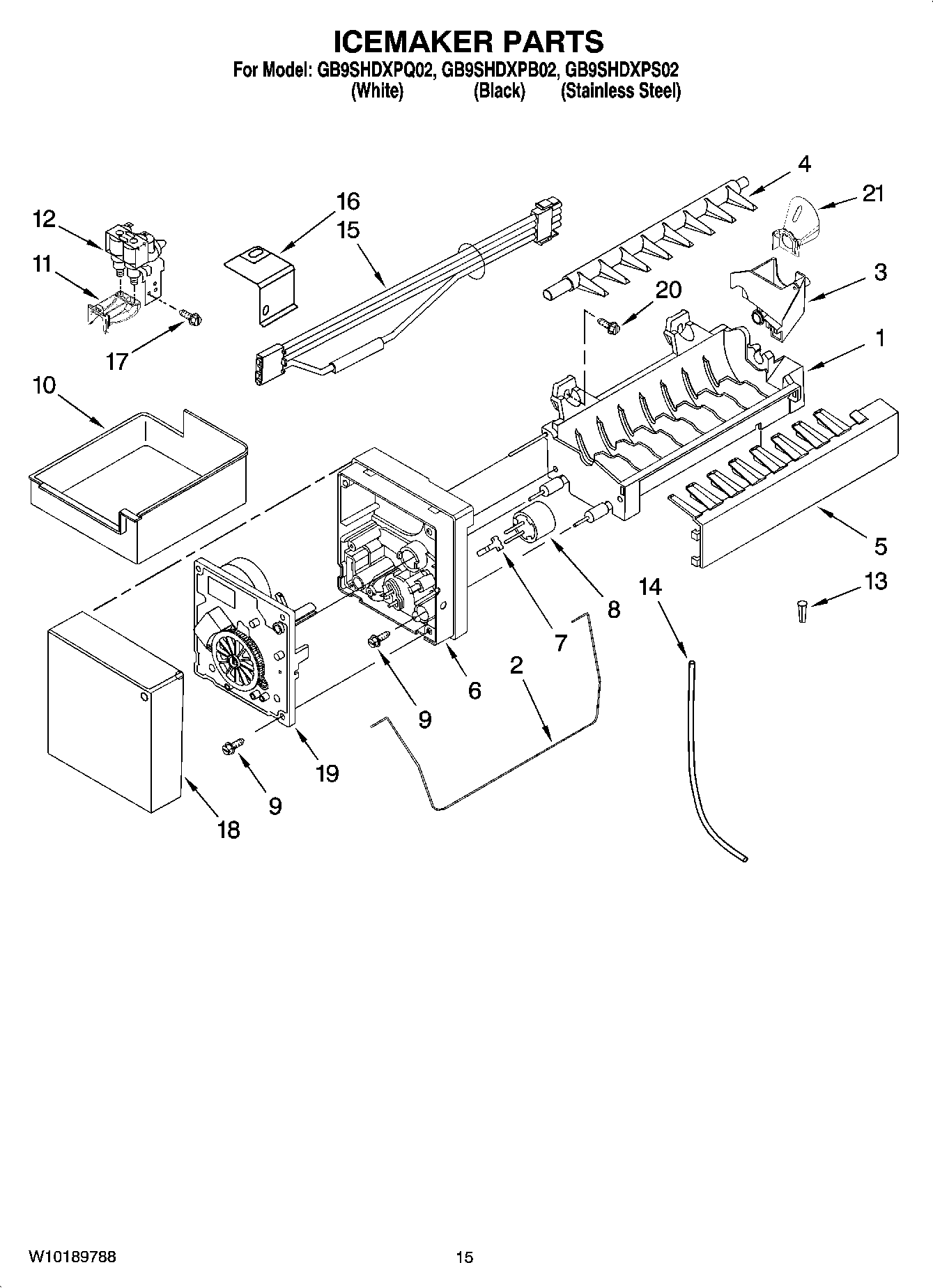

GB9SHDXPB02 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

GB9SHDXPB02 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GB9SHDXPB02 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
72032 Whirlpool Touch Up Paint Black
8003RP Whirlpool Refrigerator 25' 1/4" Copper Water Supply Line Kit
833938 Whirlpool Refrigerator Terminal
Following Parts Not Illustrated
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL ARI147760A
WPL ARI147759A
350942 Whirlpool Spray Paint
WPL ARI147758A
Important: The spray paint is not
ACCESSORY PARTS, STAINLESS STEEL CLEANER & POLISH
212643 Whirlpool Refrigerator Permagum Sealer
285006 Whirlpool Spray
1Mold & Heater Assembly (Not Available Order D7824706Q)
2ARM-SHUT
3WP628356 Whirlpool Refrigerator Fill Cup
4WP627843 Whirlpool Refrigerator Ejector Arm
5WP2182124 Whirlpool Refrigerator Stripper Arm
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7WP2315522 Whirlpool Refrigerator Clip
8Thermostat (Not Available Order D7824706Q)
9WP681249 Whirlpool Screw Assembly
10WP67001255 Whirlpool Ice Bucket
1112831101 Whirlpool Refrigerator Tube Clamp
12WP67006531 Whirlpool Water Inlet Valve
13WPA3223101 Whirlpool Refrigerator Insert PL
14WPB5705307 Whirlpool Refrigerator Tube
15WPD7813010 Whirlpool Refrigerator Wire Harness
16WP2256087 Whirlpool Refrigerator Bracket
17WP489128 Whirlpool Refrigerator Screw
18WPW10289690 Whirlpool Ice Maker Cover
19Module Assembly (Not Available Order D7824706Q)
20WP98165 Whirlpool Screw
2112918001 Whirlpool Refrigerator Funnel
100D7824706Q Whirlpool Refrigerator Ice Maker Assembly
