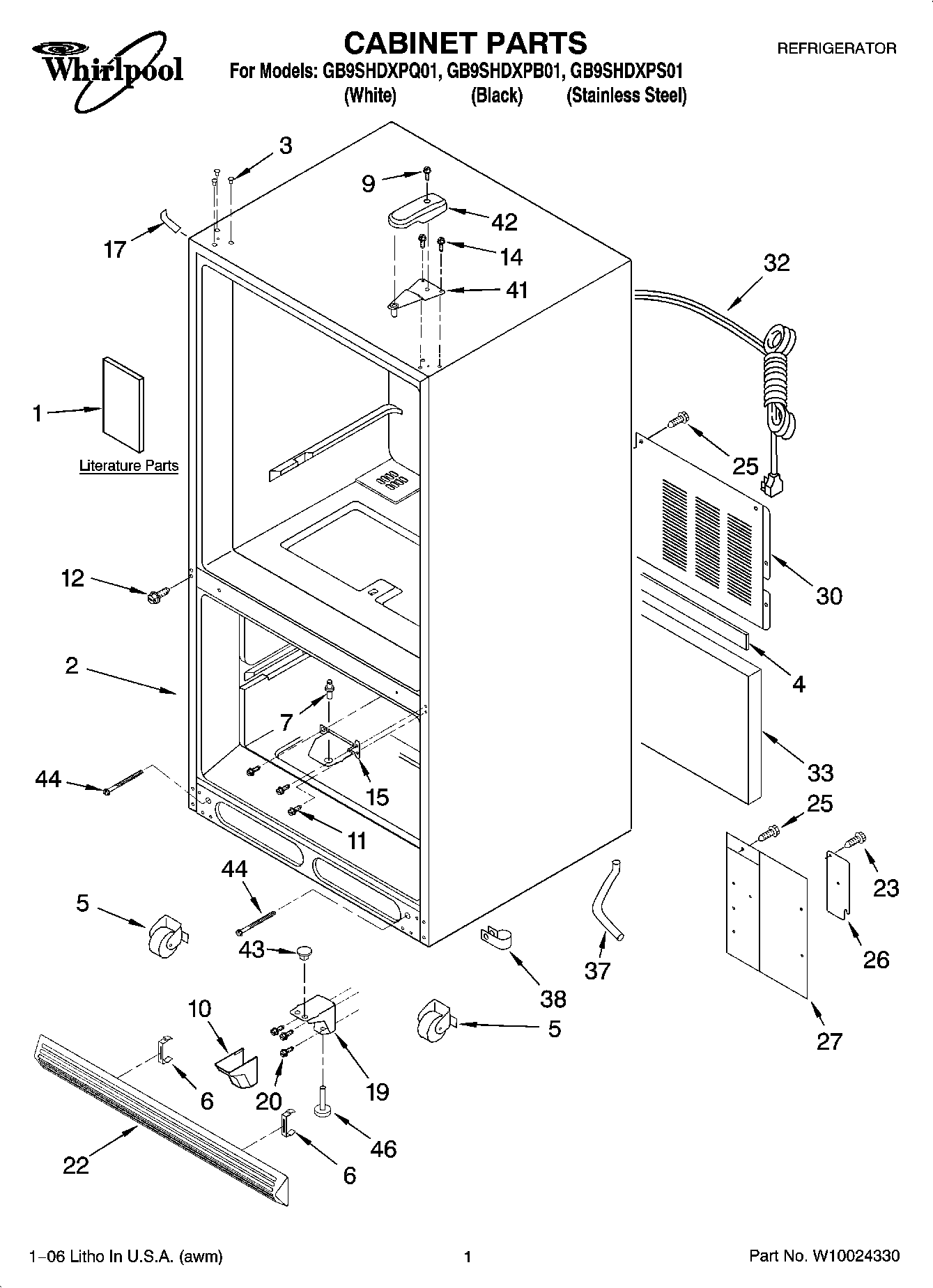

GB9SHDXPQ01 01 – CABINET PARTS

Products

Position	Product
1	Energy Tag
1	Tech Sheet
1	Use & Care Guide
2	Cabinet (Not A Servicable Part)
3	WP2189000 Whirlpool Refrigerator Handle Plug
3	WP2189009 Whirlpool Refrigerator Handle Plug
4	GASKET
5	Roller Assembly
6	Clip, Grille
7	WP67006744 Whirlpool Refrigerator Center Pin
9	WP8281196 Whirlpool Screw
10	Hinge Cover, Bottom (White)
10	Hinge Cover, Bottom (Black)
11	WP67006380 Whirlpool Screw
14	WP489349 Whirlpool Refrigerator Screw
15	WP12607104ED Whirlpool Refrigerator Door Hinge
15	WP12607103WD Whirlpool Refrigerator Center Hinge
17	67003484 Whirlpool Refrigerator White Corner Cover
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
19	Hinge Bottom (White)
19	Hinge Bottom (Black)
20	Screw
22	Grille Assembly (Includes Clips) (Black)
23	681390 Whirlpool Refrigerator Screw
25	WPL 4344167
26	Plate, Cover
27	Cover, Water Valve
30	Cover, Unit
32	WP67006506 Whirlpool Refrigerator Power Cord
33	67003796 Whirlpool Refrigerator Fiber Acoustic
37	Tube, Drain
38	67001067 Whirlpool Refrigerator Drain Tube Clip
41	WP12566606ED Whirlpool Refrigerator Door Hinge
42	67001014 Whirlpool Refrigerator Top Hinge Cover White
42	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
43	M0310343 Whirlpool Button Plug
44	71003131 Whirlpool Oven Screw
46	W11177593 Whirlpool Leveling Feet
