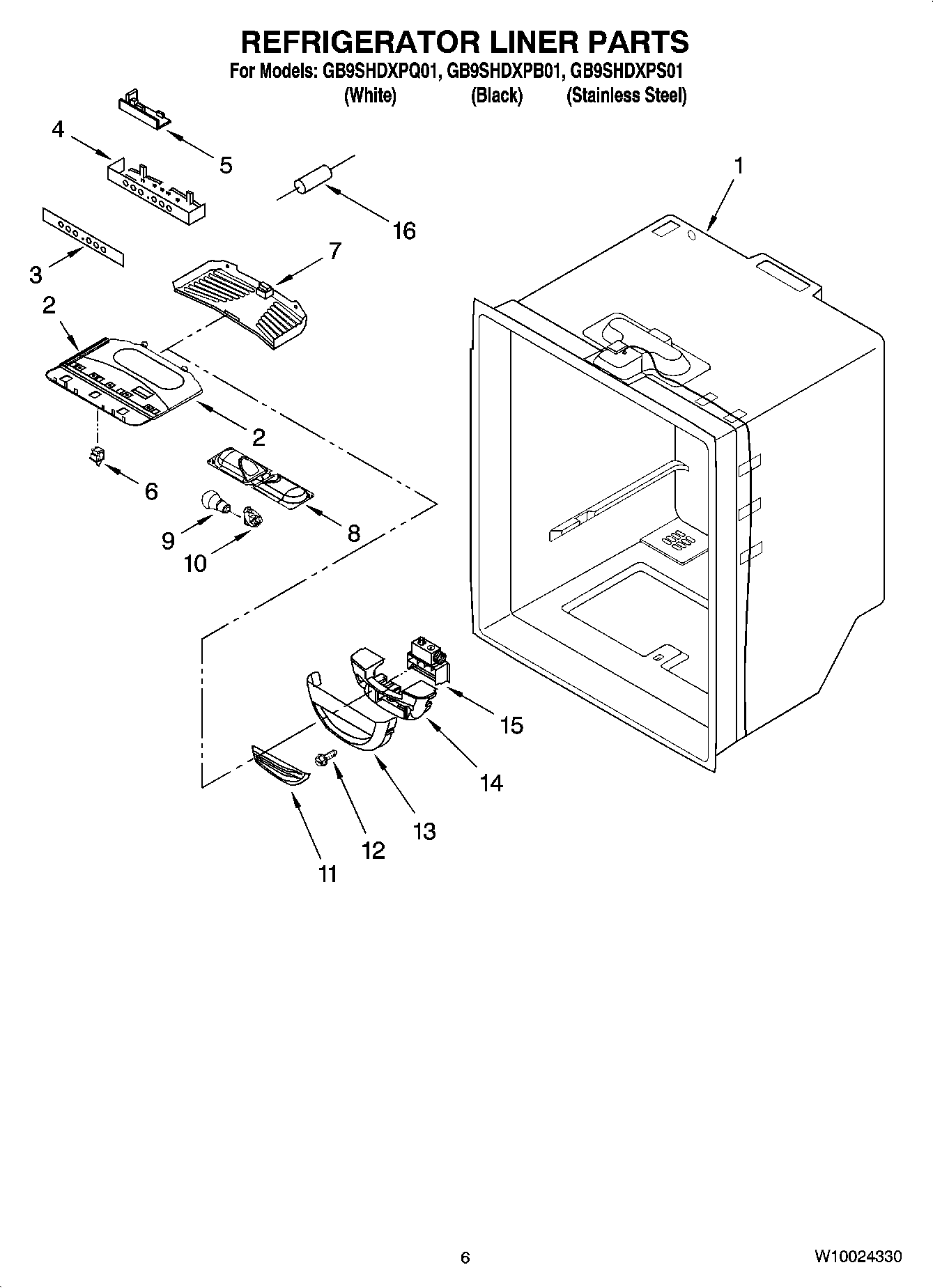

GB9SHDXPQ01 04 – REFRIGERATOR LINER PARTS

GB9SHDXPQ01 04 – REFRIGERATOR LINER PARTS

Written by

in

GB9SHDXPQ01 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Bracket, Control and Lights
3Overlay
4WPW10464769 Whirlpool Refrigerator Housing
5WPW10503278 Whirlpool Refrigerator Electronic Control Board
6W11384469 Whirlpool Door Switch
7W11284721 Whirlpool Refrigerator Cover
812806601 Whirlpool Refrigerator Light Housing
9RANGE ONLY 40W 120V APPL BULB
10W11447232 Whirlpool Refrigerator Socket
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14WP67003904 Whirlpool Refrigerator Insulation
15WP67003903 Whirlpool Refrigerator Damper Control
16W11619328 Whirlpool Wire Harness
1612002355 Whirlpool Refrigerator Thermistor Kit
16Harness, Damper Control
16Following Parts Not Illustrated
