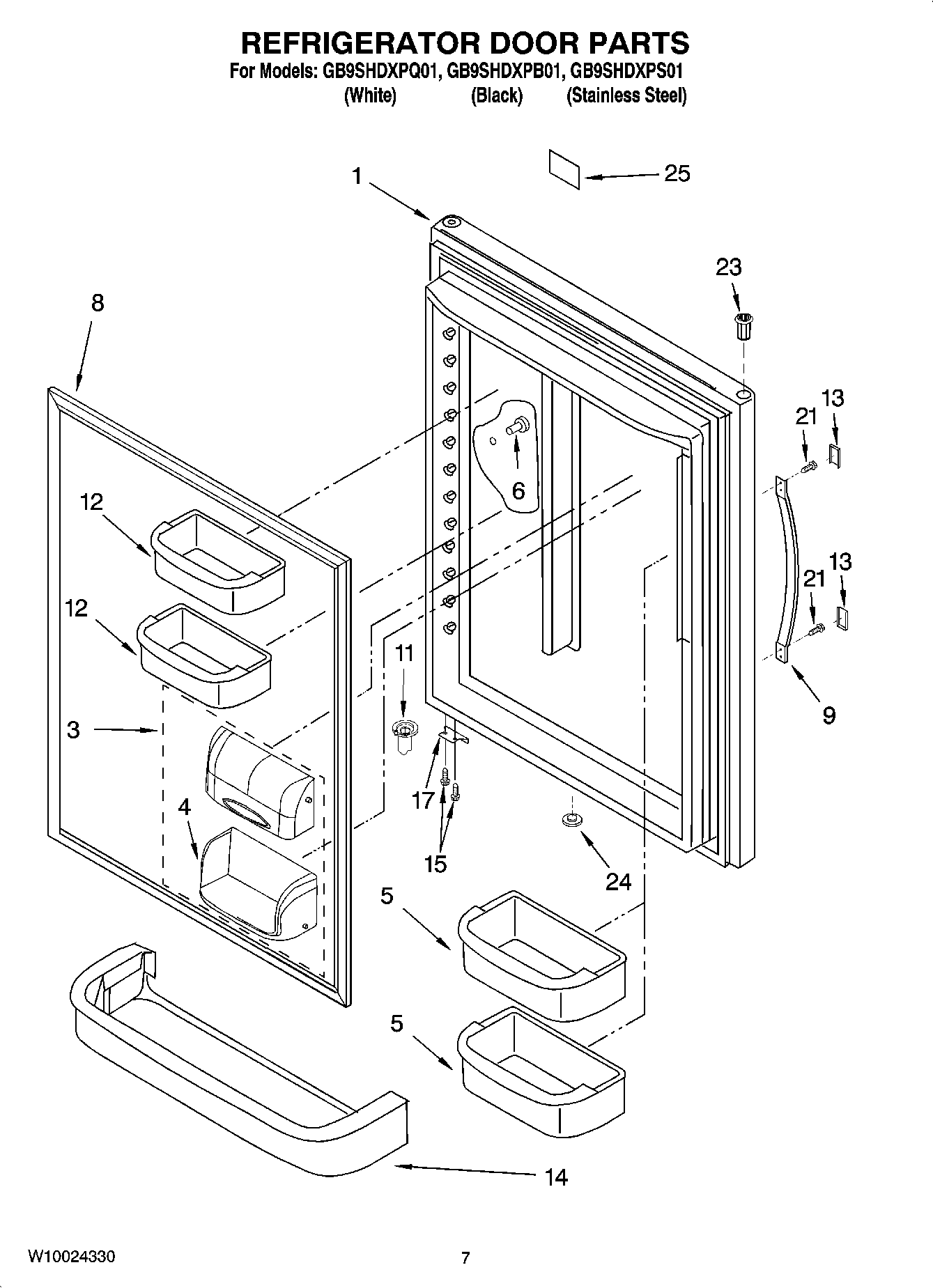

GB9SHDXPQ01 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (w/ Insulation) (White)
1	12658501BQ Whirlpool Refrigerator Foam In Place Bottom Line Door
1	Refrigerator Door (w/ Insulation) (Stainless Steel)
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	WP12246608 Whirlpool Refrigerator Button
6	WP67001130 Whirlpool Refrigerator White Button Plug
8	WPW10436245 Whirlpool Refrigerator FIP Gasket
8	WPW10443309 Whirlpool Refrigerator Door Gasket
9	Handle (Stainless)
9	Handle (White)
11	WP67003639 Whirlpool Refrigerator Closer
12	WPW10351081 Whirlpool Refrigerator Cantilever Bin
13	Trim, Handle (Black)
13	Trim, Handle (White)
14	Trim, Door Shelf
15	WP98165 Whirlpool Screw
17	W11708403 Whirlpool Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
21	R9800670 Whirlpool Refrigerator Screw Kit
23	67004978 Whirlpool Refrigerator Black Door Bushing
23	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
24	Plug, Button (White)
24	Plug, Button
25	NAMEPLATE
