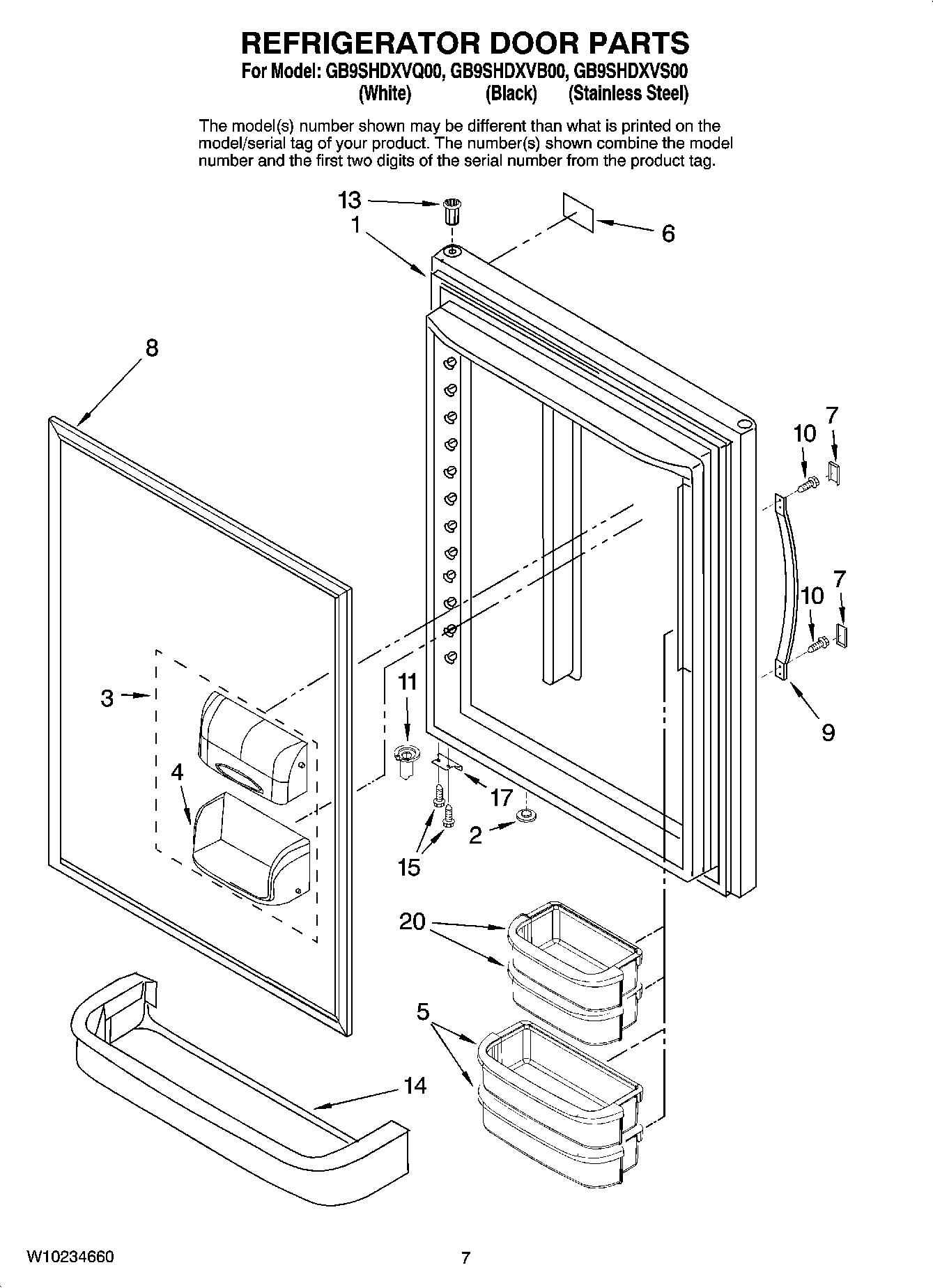

GB9SHDXVB00 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (w/ Insulation) (White)
1	Refrigerator Door (w/ Insulation) (Stainless)
1	12658501BQ Whirlpool Refrigerator Foam In Place Bottom Line Door
2	10712401 Whirlpool Refrigerator Vent Plug (White)
2	67004838 Whirlpool Refrigerator Button Vent Plug
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	Nameplate
7	Trim, Handle (White)
7	Trim, Handle (Black)
8	WPW10436245 Whirlpool Refrigerator FIP Gasket
8	WPW10443309 Whirlpool Refrigerator Door Gasket
9	WP2217185B Whirlpool Refrigerator Handle
9	Handle, Door (White)
10	W10709784 Whirlpool Refrigerator Handle Plug
11	WP67003638 Whirlpool Closing Cam
11	WP67003639 Whirlpool Refrigerator Closer
13	67004978 Whirlpool Refrigerator Black Door Bushing
13	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
14	Retainer, Door
15	WP98165 Whirlpool Screw
17	12968202W Whirlpool Refrigerator Door Stop
17	W11708403 Whirlpool Door Stop
20	WPW10351081 Whirlpool Refrigerator Cantilever Bin
