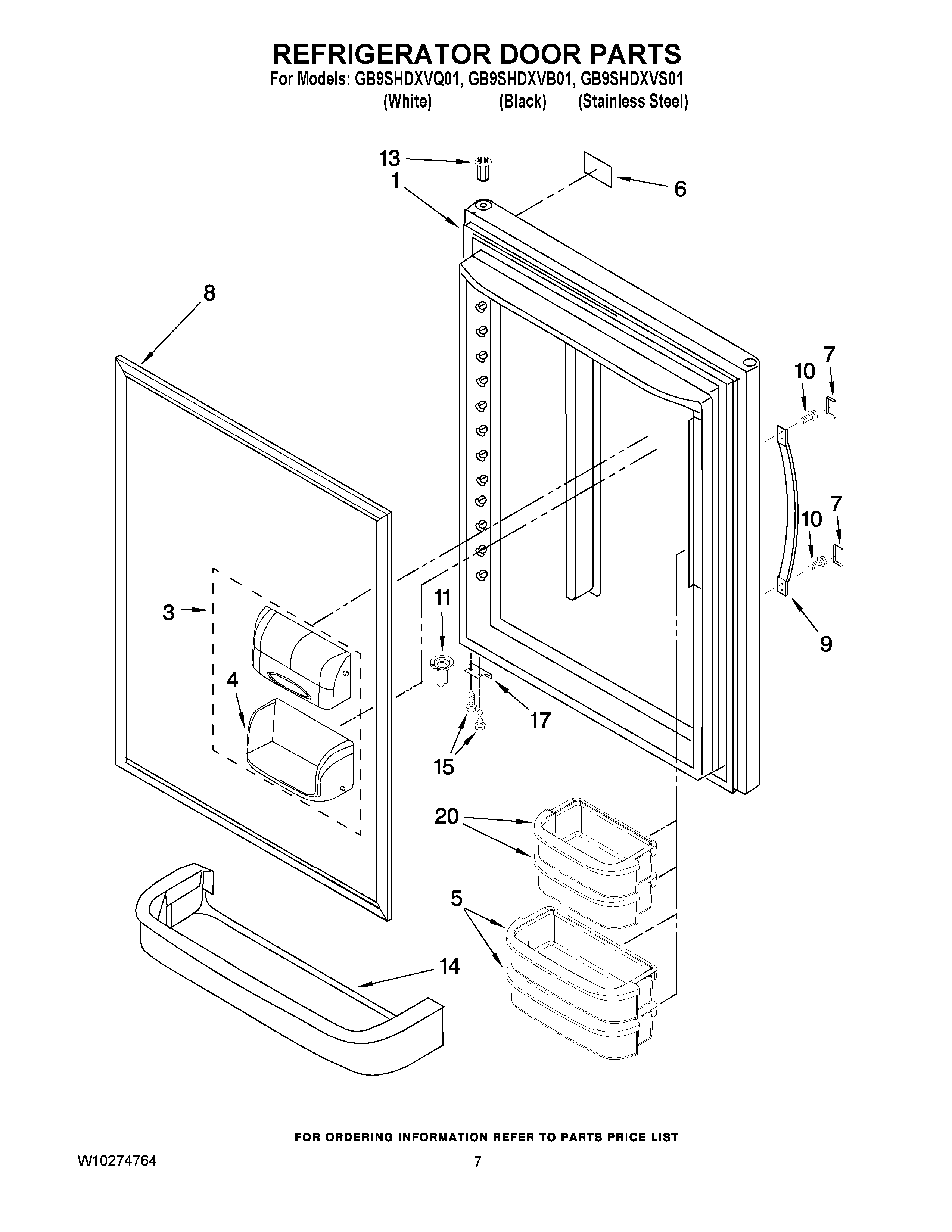

GB9SHDXVB01 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (W/ INSULATION) (STAINLESS)
1	REFRIGERATOR DOOR (W/ INSULATION) (WHITE)
1	12658501BQ Whirlpool Refrigerator Foam In Place Bottom Line Door
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	Nameplate
7	TRIM, HANDLE (BLACK)
7	TRIM,HANDLE (WHITE)
8	WPW10443309 Whirlpool Refrigerator Door Gasket
8	WPW10436245 Whirlpool Refrigerator FIP Gasket
9	HANDLE, DOOR (WHITE)
9	WP2217185B Whirlpool Refrigerator Handle
10	60001022 Whirlpool Oven Screw
11	WP67003639 Whirlpool Refrigerator Closer
11	WP67003638 Whirlpool Closing Cam
13	67004978 Whirlpool Refrigerator Black Door Bushing
13	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
14	Retainer, Door
15	WP98165 Whirlpool Screw
17	12968202W Whirlpool Refrigerator Door Stop
17	W11708403 Whirlpool Door Stop
20	WPW10351081 Whirlpool Refrigerator Cantilever Bin
