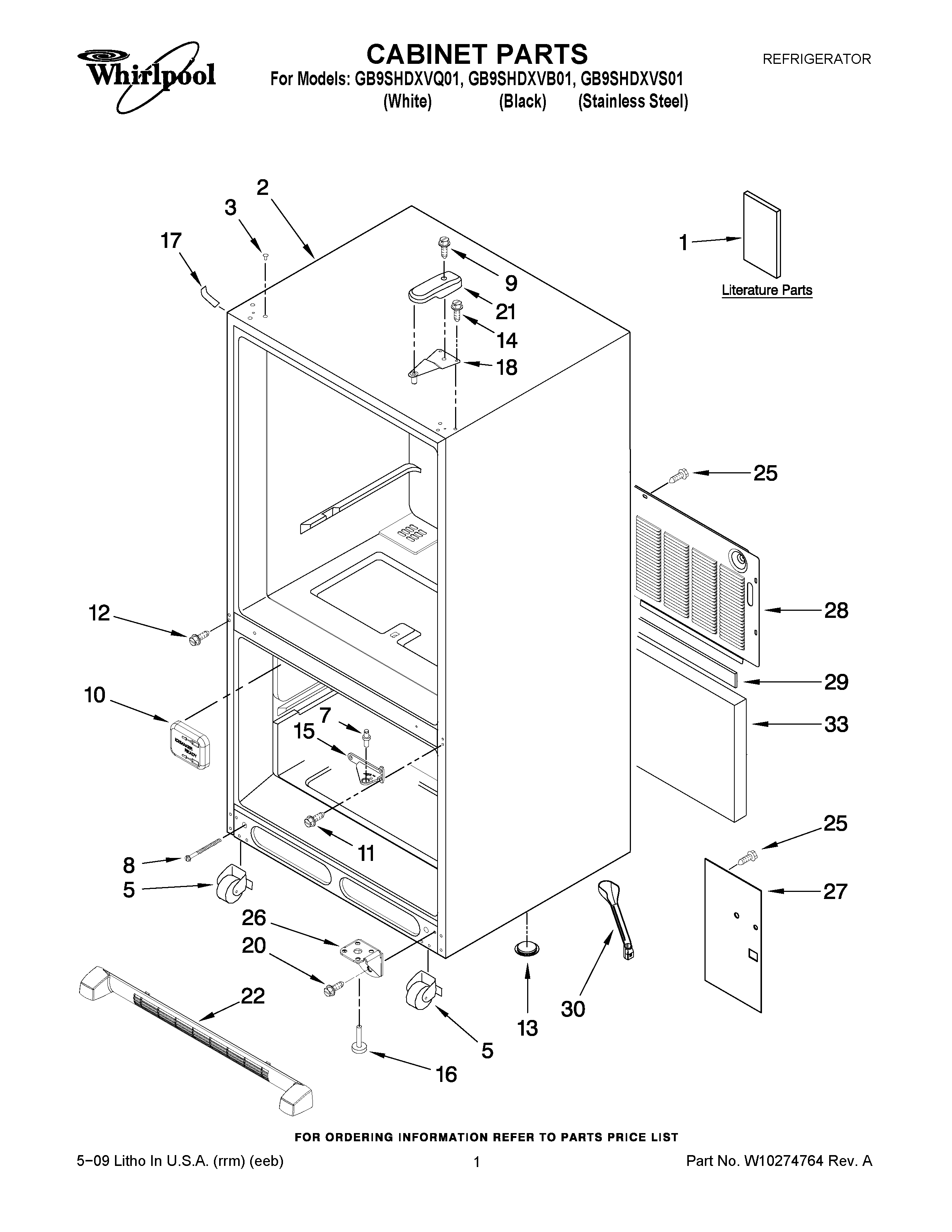

GB9SHDXVQ01 01 – CABINET PARTS

GB9SHDXVQ01 01 – CABINET PARTS

Written by

in

GB9SHDXVQ01 01 – CABINET PARTS

Products

PositionProduct
1Energy Tag
1Use & Care Guide
1TECH SHEET
2Cabinet (Not A Servicable Part)
3Plug, Button (3) (Black)
3WP67001130 Whirlpool Refrigerator White Button Plug
5ROLLER ASSY.(REAR)
7WP67006642 Whirlpool Refrigerator Pin
871003131 Whirlpool Oven Screw
9WP8281196 Whirlpool Screw
10WP67001098 Whirlpool Refrigerator Tube Cover
11WP67006380 Whirlpool Screw
12WP98165 Whirlpool Screw
13A3076901 Whirlpool Refrigerator Plug
14WP489349 Whirlpool Refrigerator Screw
15WP12607104ED Whirlpool Refrigerator Door Hinge
15WP12607103WD Whirlpool Refrigerator Center Hinge
16W11177593 Whirlpool Leveling Feet
1712587703W Whirlpool Refrigerator Cover
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18WP12566606ED Whirlpool Refrigerator Door Hinge
2067006564 Whirlpool Refrigerator Screw
2167001014 Whirlpool Refrigerator Top Hinge Cover White
2167001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
22WPW10534167 Whirlpool Refrigerator Front Grille
22WPW10534166 Whirlpool Refrigerator Front Grille
2567006425 Whirlpool Refrigerator Screw
2612906303WD Whirlpool Refrigerator Bracket
27W11684617 Whirlpool Valve Cover
28W10210978 Whirlpool Refrigerator Back Cover
29B5759655 Whirlpool Refrigerator Gasket
30W10619951 Whirlpool Drain Tube with Grommet
33INSULATION, SOUND
