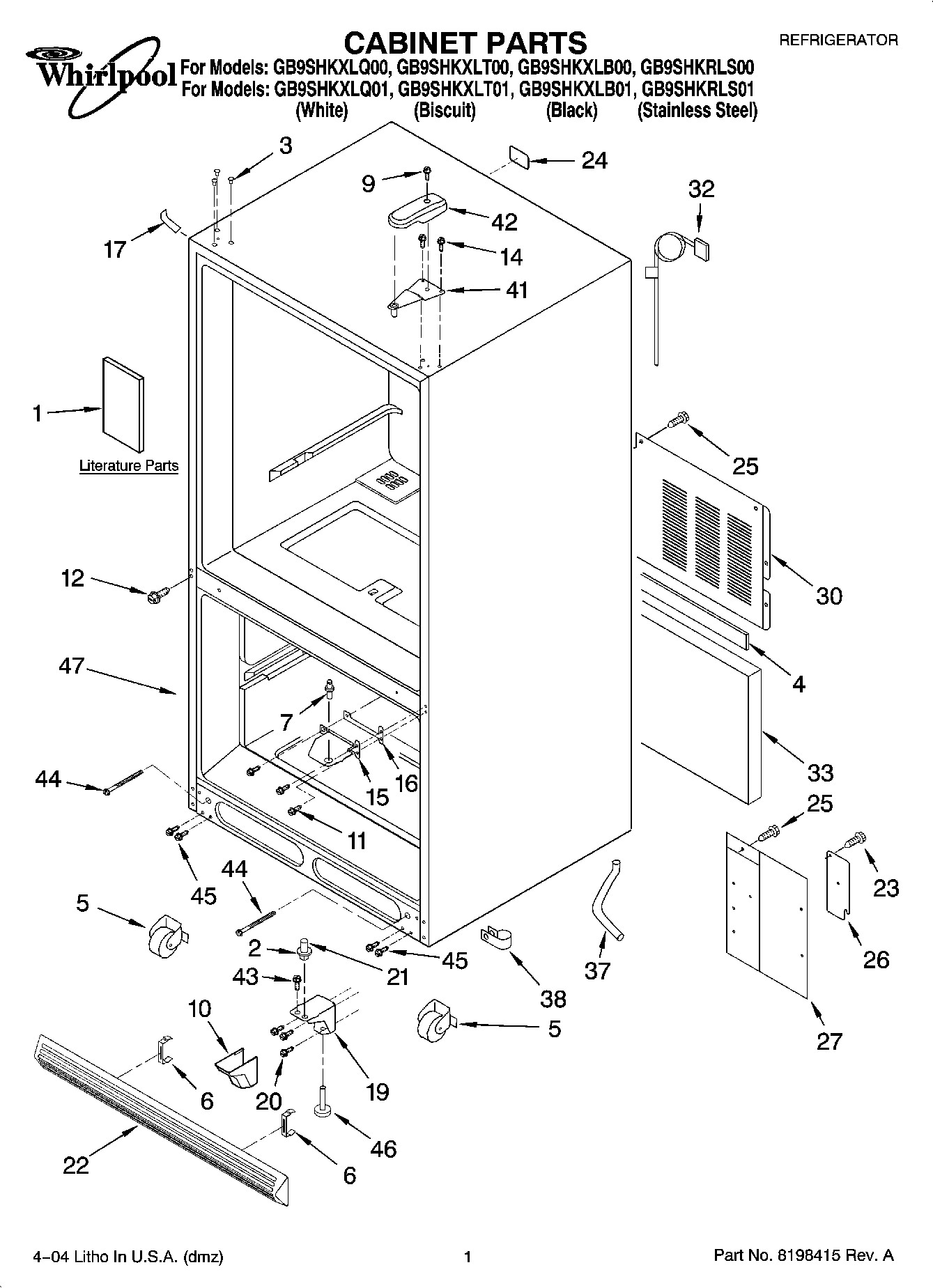

GB9SHKXLB01 01 – CABINET PARTS

GB9SHKXLB01 01 – CABINET PARTS

Written by

in

GB9SHKXLB01 01 – CABINET PARTS

Products

Position	Product
1	Literature Parts (Energy Tag)
1	Literature Parts (Tech Sheet)
1	Literature Parts (Use & Care Guide)
2	Shim ()
2	Shim (Black)
3	WP2189000 Whirlpool Refrigerator Handle Plug
3	WP2189009 Whirlpool Refrigerator Handle Plug
3	W10709784 Whirlpool Refrigerator Handle Plug
4	GASKET
5	Roller Assembly
6	Clip, Grille
7	WP67006744 Whirlpool Refrigerator Center Pin
9	Screw
10	Hinge Cover, Bottom (White)
10	Hinge Cover, Bottom (Biscuit)
10	Hinge Cover, Bottom (Black)
11	WP67006380 Whirlpool Screw
14	WP489349 Whirlpool Refrigerator Screw
15	WP12607104ED Whirlpool Refrigerator Door Hinge
15	WP12607103WD Whirlpool Refrigerator Center Hinge
16	WPM0274062 Whirlpool Refrigerator Shim
16	WPM0274057 Whirlpool Refrigerator Shim
17	67003484 Whirlpool Refrigerator White Corner Cover
17	Cover, Corner (Biscuit)
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
19	Hinge Bottom (Black)
19	12465002WD Whirlpool Refrigerator Bottom Hinge
21	67007018 Whirlpool Refrigerator Bottom Hinge PIN
22	Grille Assembly (Includes Clips) (White)
22	Grille Assembly (Includes Clips) (Biscuit)
22	Grille Assembly (Includes Clips) (Black)
23	681390 Whirlpool Refrigerator Screw
24	WP628356 Whirlpool Refrigerator Fill Cup
25	WPL 4344167
26	Plate, Cover
27	Cover, Water Valve
30	Cover, Unit
32	WP67006506 Whirlpool Refrigerator Power Cord
33	67003796 Whirlpool Refrigerator Fiber Acoustic
37	Tube, Drain
38	67001067 Whirlpool Refrigerator Drain Tube Clip
41	WP12566606ED Whirlpool Refrigerator Door Hinge
42	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
42	67001014 Whirlpool Refrigerator Top Hinge Cover White
42	Cover, Hinge (Biscuit)
43	M0310343 Whirlpool Button Plug
44	71003131 Whirlpool Oven Screw
45	WP67006715 Whirlpool Refrigerator Screw
46	W11177593 Whirlpool Leveling Feet
47	Cabinet (Not A Serviceable Part)
