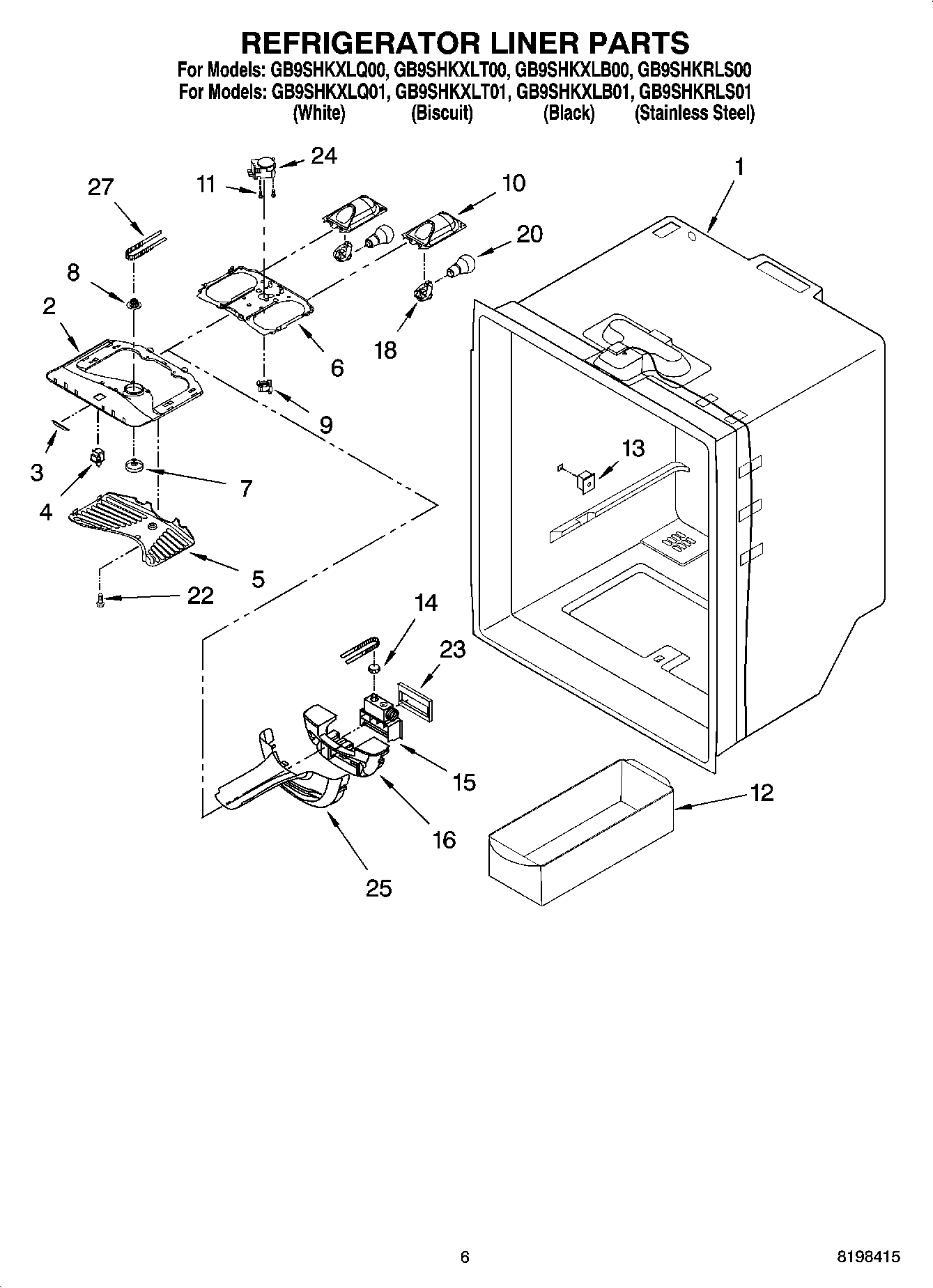

GB9SHKXLB01 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Housing, Ref. Light
3	WP67002085 Whirlpool Refrigerator Housing
4	W11384469 Whirlpool Door Switch
5	Cover, Ref. Light
7	Knob, Damper
8	67001033 Whirlpool Refrigerator Knob Gear
9	67001034 Whirlpool Refrigerator Tensioner Belt
10	Housing, Light
11	Screw (2)
12	W10136387A Whirlpool Refrigerator Egg Container
13	Grommet, Screw
14	Gear, Damper
15	Control, Damper
16	Insulation, Damper
18	W11447232 Whirlpool Refrigerator Socket
20	W11679940 Whirlpool Refrigerator Light Bulb Assembly
22	WP98165 Whirlpool Screw
23	Gasket, Damper
24	WP67001036 Whirlpool Refrigerator Defrost Timer
25	Cover, Control
27	Belt, Damper
