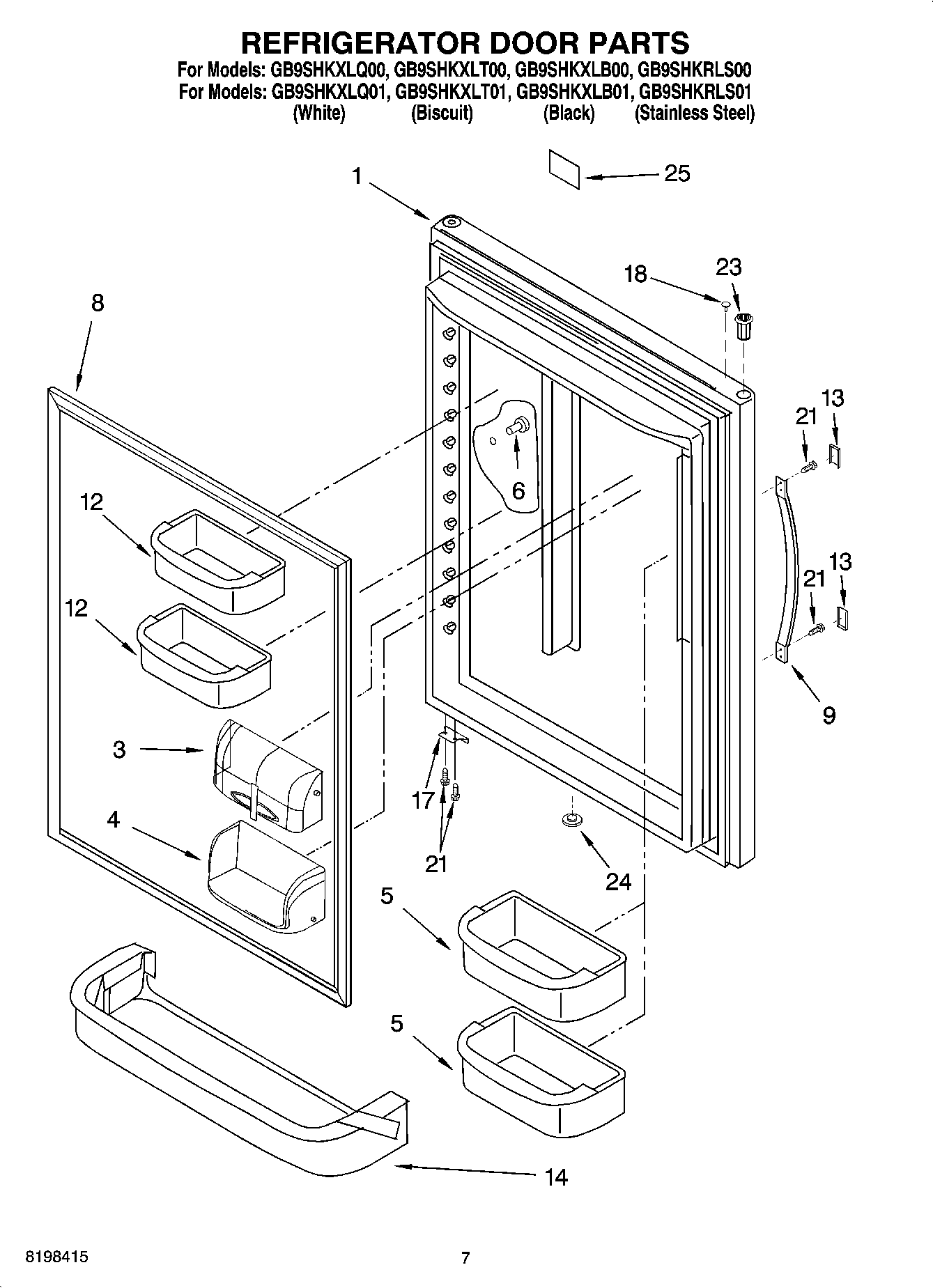

GB9SHKXLB01 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door Panel (Includes Insulation) (Biscuit)
1	Refrigerator Door Panel (Includes Insulation) (Stainless Steel)
1	Refrigerator Door (w/ Insulation) (White)
1	12658501BQ Whirlpool Refrigerator Foam In Place Bottom Line Door
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	WP67001130 Whirlpool Refrigerator White Button Plug
6	W10709784 Whirlpool Refrigerator Handle Plug
6	WP12246608 Whirlpool Refrigerator Button
8	WPW10443309 Whirlpool Refrigerator Door Gasket
8	WPW10436245 Whirlpool Refrigerator FIP Gasket
9	Door Handle (Biscuit)
9	Handle (White)
9	Handle (Stainless)
12	WPW10351081 Whirlpool Refrigerator Cantilever Bin
13	Trim, Handle (White)
13	Trim, Handle (Black)
13	Trim, Handle (Biscuit)
14	Trim, Door Shelf
17	W11708403 Whirlpool Door Stop
17	67003781 Whirlpool Refrigerator Door Stop (BSQ)
17	12968202W Whirlpool Refrigerator Door Stop
18	10712401 Whirlpool Refrigerator Vent Plug (White)
18	67004838 Whirlpool Refrigerator Button Vent Plug
21	WPW10348409 Whirlpool Screw
23	Bushing (Black)
23	WPL 4344362
24	Plug, Button (White)
24	Plug, Button
25	NAMEPLATE
