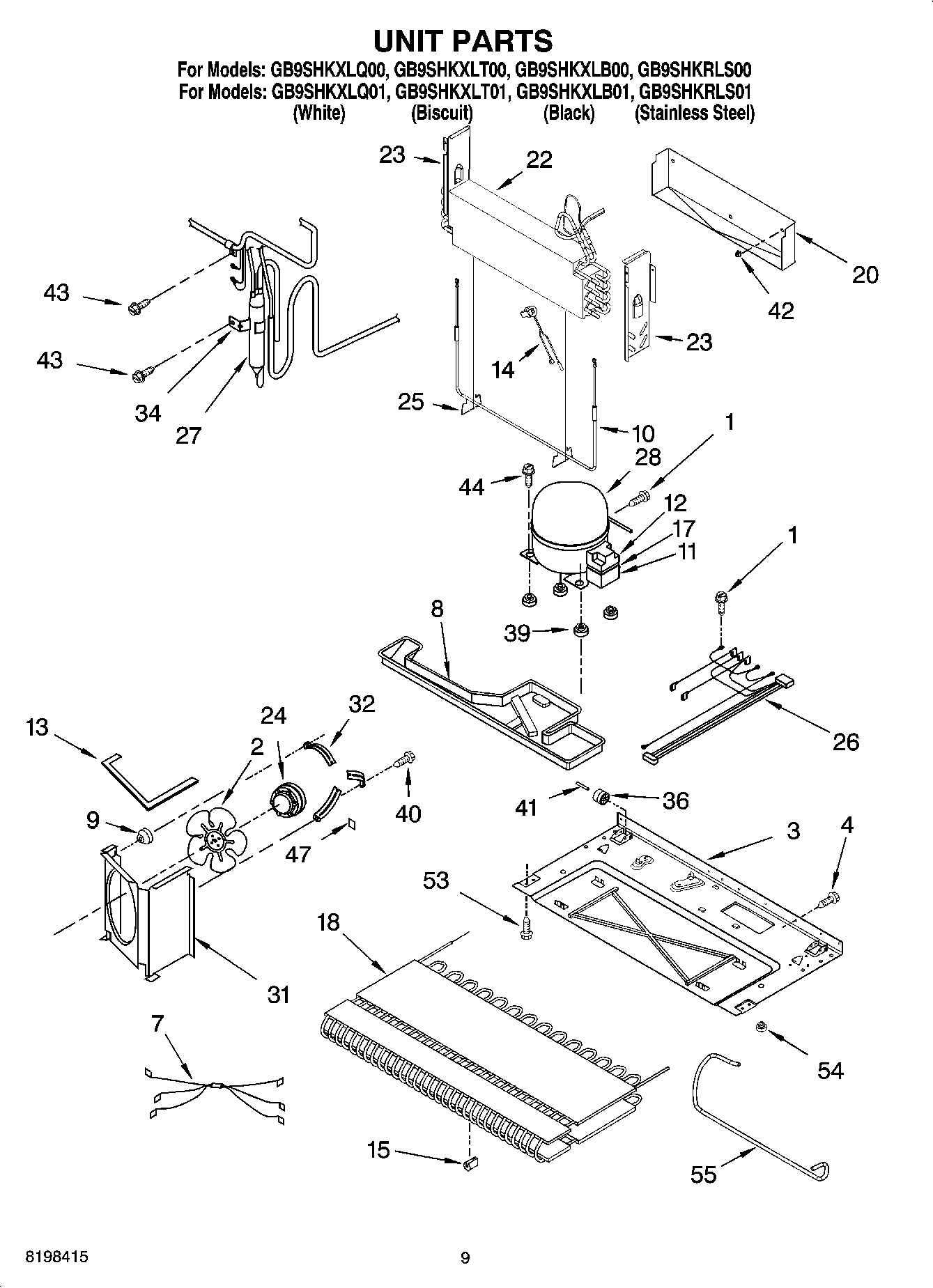

GB9SHKXLB01 06 – UNIT PARTS

GB9SHKXLB01 06 – UNIT PARTS

Written by

in

GB9SHKXLB01 06 – UNIT PARTS

Products

PositionProduct
112992301 Whirlpool Refrigerator Screw
2WP12587601 Whirlpool Refrigerator Condenser Blade
3Base
4WPL 4344167
7Harness, Evap. Heater
8Drain Pan
9Grommet (3)
10WP67002135 Whirlpool Refrigerator Defrost Heater
11Clip
12WP12555902 Whirlpool Refrigerator Overload
13WP854334 Whirlpool Air Conditioner Sealing Strip
1412001937 Whirlpool Refrigerator 42-Degree Defrost Thermostat
1567005680 Whirlpool Refrigerator Condenser Grommet
17WP65889-4 Whirlpool Refrigerator Capacitor
1867006133 Whirlpool Refrigerator 30" Condenser BM
20Tray, Drip
22EVAPORATOR
23Dam (Left Side)
23Dam (Right Side)
24833697 Whirlpool Condenser Fan Motor
25W11673433 Whirlpool Clip
26Harness, Unit
27W10843121 Whirlpool Refrigerator Tube
28W10309990 Whirlpool Refrigerator Compressor
31SHROUD
32Bracket, Fan Motor
34Clip, Drier
36WP67005149 Whirlpool Roller
39WPL 4343845
40Screw
4167006434 Whirlpool Axle Pin
42Clip, Evap Motor
43W10709801 Whirlpool Refrigerator Screw
44WPL 4343847
47Gasket (3)
53WPL 4344292
54A3076901 Whirlpool Refrigerator Plug
55VALVE, ACCESS (1/2“)
55REFRIGERANT CHARGE 5.00 Ozs. (R-134A)
55and Optional Parts Not Included
55FOLLOWING PARTS NOT ILLUSTRATED
55Tube, Drain
55978030 Whirlpool Refrigerator Valve
55WP978025 Whirlpool Refrigerator Valve
55978027 Whirlpool Refrigerator Primary Valve
55VALVE, ACCESS (5/8“)
55978026 Whirlpool Refrigerator Primary Valve
55876764 Whirlpool Refrigerator Primary Valve
