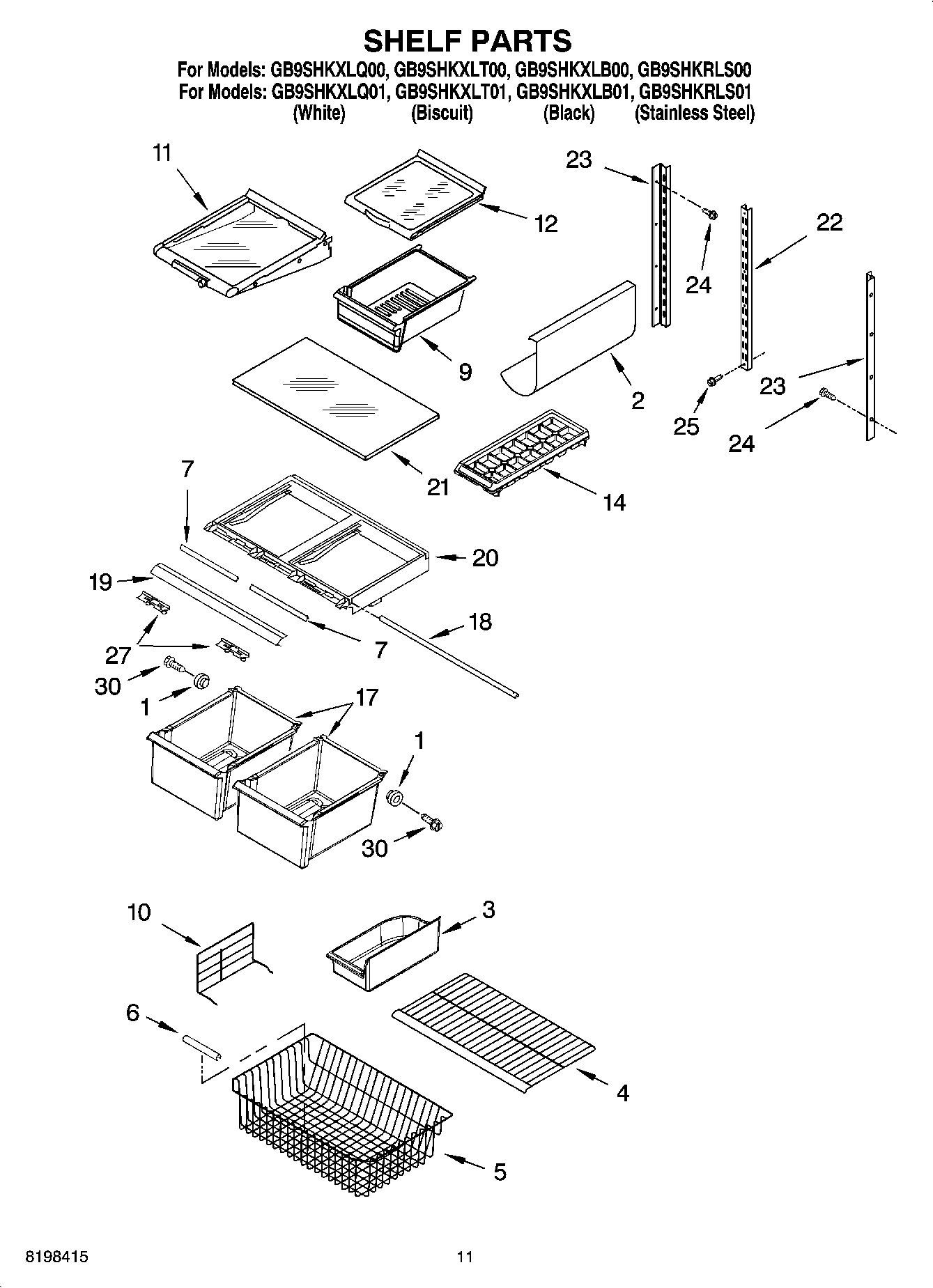

GB9SHKXLB01 07 – SHELF PARTS, LITERATURE AND OPTIONAL PARTS

Products

Position	Product
	WPL ARI147959A
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799833
	WPL 876029
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	Ice Container Assembly
	4396418 Whirlpool Ice Maker
	WPL ARI147956A
	WPL ARI147954A
	WPL ARI147955A
	WPL ARI147957A
	WPL ARI147958A
	Torx Key
	WP542638 Whirlpool Refrigerator Grease
	350930 Whirlpool White Spray Paint
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	212643 Whirlpool Refrigerator Permagum Sealer
	Almond (Uncut)
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	833938 Whirlpool Refrigerator Terminal
	WP503695 Whirlpool Refrigerator Sealer
	876370 Whirlpool Refrigerator Insulation
	606755 Whirlpool Refrigerator Bag
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	WP505587 Whirlpool Refrigerator Sealer
1	Roller
2	Rack, Wine
3	WP67001255 Whirlpool Ice Bucket
4	Shelf, Frz. Wire
5	WP12754803 Whirlpool Refrigerator Freezer Basket
6	Handle, Basket
7	Seal, Front Crisper
9	PAN-MEAT
10	Divider, Shelf
11	Shelf Assembly (3)
12	Shelf, S/G, S/O
14	WP841180A Whirlpool Microwave Glass Turntable Tray
17	W10833528 Whirpool Refrigerator Crisper Pan
18	Whirlpool Refrigerator Shelf Support Liner
19	Trim, Crisper
20	WPW10671240 Whirlpool Refrigerator Frame
21	WP67006877 Whirlpool Refrigerator Glass Shelf
22	Ladder, Center
23	Ladder, Side
24	67006425 Whirlpool Refrigerator Screw
25	Screw
27	Slide, Humidity Control
30	Screw
