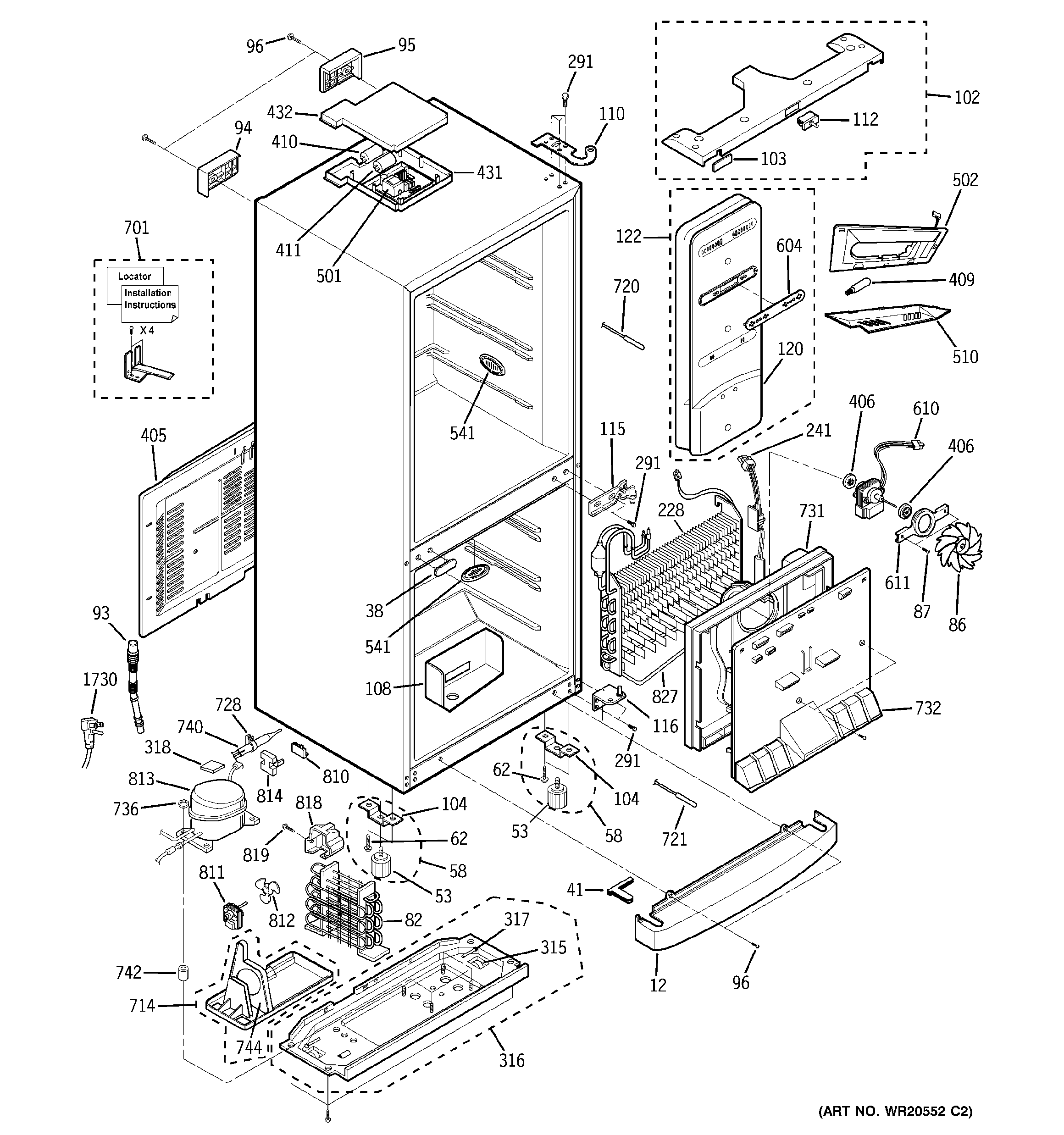

GBC12IAXBLSS CABINET

Products

Position	Product
12	GEN WR13X10700
38	GEN WR02X13073
41	GEN WR02X13074
53	GEN WR02X13344
58	GEN WR02X13081
62	GEN WR02X13130
82	GEN WR84X10094
86	GEN WR60X10288
87	GEN WR01X10894
93	GEN WR02X13079
94	GEN WR02X13069
95	GEN WR02X13068
96	GEN WR01X10893
102	GEN WR13X10699
103	COVER, FRONT
104	GEN WR02X13345
108	TRAY ASSEMBLY, DRAIN
110	HINGE ASSEMBLY, UPPER
112	GEN WR23X10643
115	HINGE ASSEMBLY, CENTER
116	GEN WR13X10837
120	CASE, CONTROL FF
122	CASE ASM, FF CONTROL
228	GEN WR85X10119
241	GEN WR09X10184
291	GEN WR01X10412
315	GEN WR02X13346
316	BASE ASM, COMPRESSOR
317	GEN WR02X11741
318	GEN WR01X10896
405	ACCESS PANEL
406	GEN WR02X11359
409	GEN WR02X13089
410	GEN WR62X10092
411	GEN WR62X10074
431	CASE, PCB BOTTOM
432	COVER, PCB
501	GEN WR55X10932
502	DISPLAY CASE ASM
510	COVER, LAMP
541	COVER, SENSOR
604	COVER, DEODORIZER
610	GEN WR60X10286
611	GEN WR02X11303
701	GEN WR02X13083
714	TRAY, DRIP
720	GEN WR50X10099
721	GEN WR50X10100
728	HOLDER, DRIER
731	SHROUD ASM, FREEZER
732	GEN WR17X12814
736	GEN WR02X11306
740	GEN WR86X10056
742	DAMPER, COMPRESSOR
744	GUIDE, FAN
810	GEN WR08X10114
811	GEN WR60X10287
812	GEN WR60X10289
813	COMPRESSOR ASM
814	PTCR, RELAY
818	COVER, PTC
819	GEN WR01X10895
827	HEATER, DEFROST
1730	POWER CORD ASM
