GBC12IAXBRSS DOORS & DRAWERS

GBC12IAXBRSS DOORS & DRAWERS

Written by

in

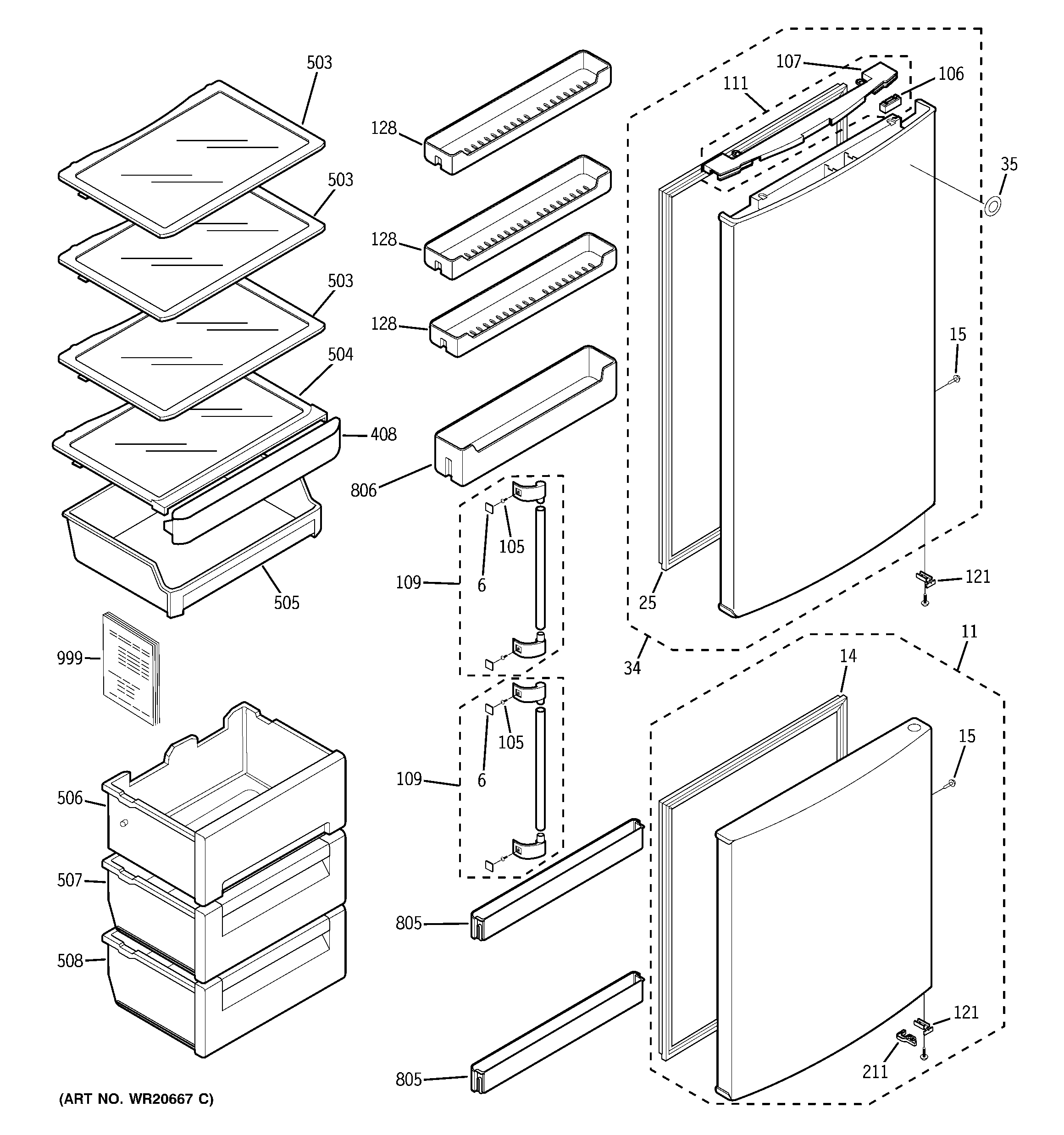

GBC12IAXBRSS DOORS & DRAWERS

Products

PositionProduct
6GEN WR02X13077
11DOOR FOAM ASM, FZ
14GASKET FZ DOOR
15PLUG BUTTON DOOR HANDLE
25GASKET FF DOOR
34DOOR FOAM ASM, REF
35GEN WR04X10171
105SCREW, CUSTOMIZED
106COVER, HINGE
107GEN WR13X10703
109GEN WR12X10954
111DECOR ASSEMBLY, DOOR
121GEN WR02X13070
128BASKET, DOOR
211GEN WR01X10899
408GEN WR32X10733
503SHELF ASSEMBLY, FF
504COVER ASM, VEG TRAY
505TRAY, VEGETABLE
506GEN WR30X10135
507TRAY ASSEMBLY DRAWER
508TRAY ASSEMBLY, DRAWER
805BASKET, DOOR
806BASKET, DOOR
999GEN 31-51772
999GEN 49-60570
