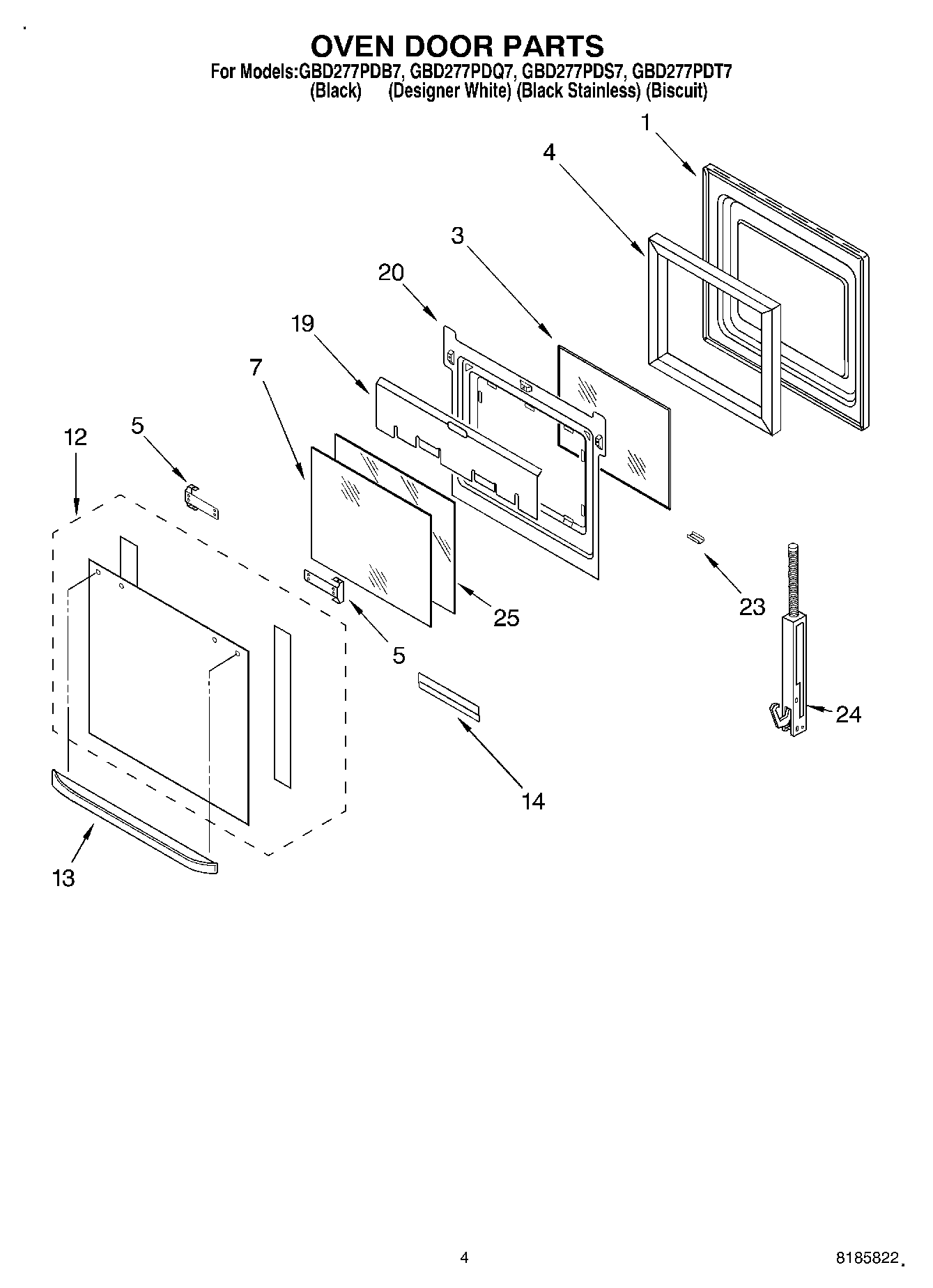

GBD277PDB7 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Bracket, Handle
5	Screw
7	WP4449257 Whirlpool Door Glass
12	Door Glass Assy (Black Model)
12	Door Glass, Assy (White Model)
12	Door Glass, Assy (Black, Stainless Model)
12	Door Glass Assy (Biscuit)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
13	Door Handle (Biscuit Model)
14	Retainer, Glass
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
24	WP9760572 Whirlpool Door Hinge
24	Hinge-Door
24	WP4449743 Whirlpool Screw
24	WP9760571 Whirlpool Door Hinge
24	9760570 Whirlpool Door Hinge
24	9760569 Whirlpool Door Hinge
25	Glass, Inner
