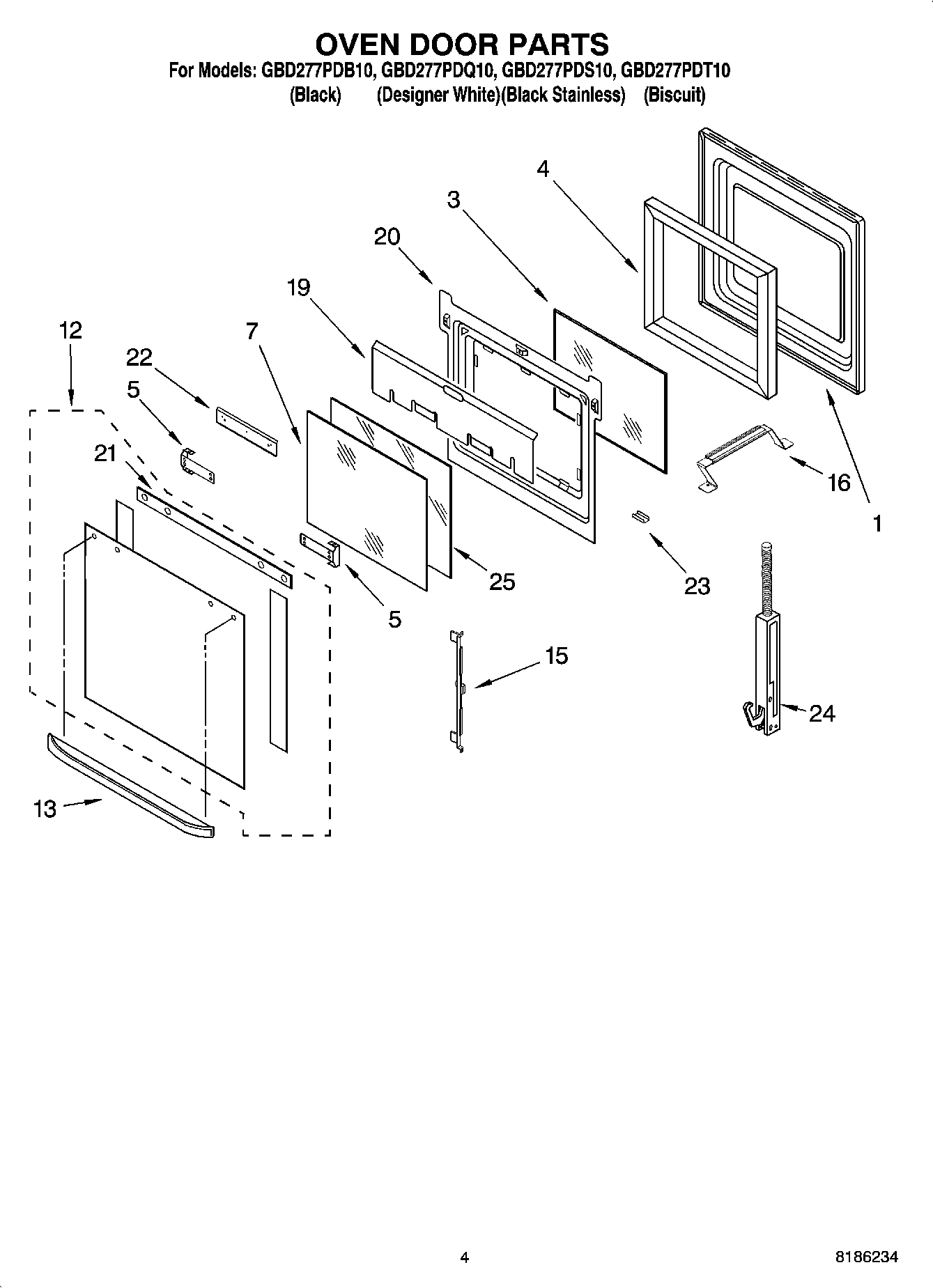

GBD277PDQ10 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Screw
5	Bracket, Handle
7	Glass, Inner
12	Door Glass, Assy (Black Model)
12	Door Glass, Assy (Black, Stainless Model)
12	Door Glass, Assy (White Model)
12	Door Glass Assy (Biscuit)
13	Handle, Door (Black Model)
13	Handle, Door (White Model)
13	Door Handle (Biscuit Model)
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
22	Shield, Heat (Bottom)
23	RETAINER,GLASS CLIP (BISCUIT)
23	WP3400832 Whirlpool Screw
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
24	WP4449743 Whirlpool Screw
24	WP9760572 Whirlpool Door Hinge
24	9760570 Whirlpool Door Hinge
24	9760569 Whirlpool Door Hinge
24	WP9760571 Whirlpool Door Hinge
25	WP9759227 Whirlpool Glass Door
