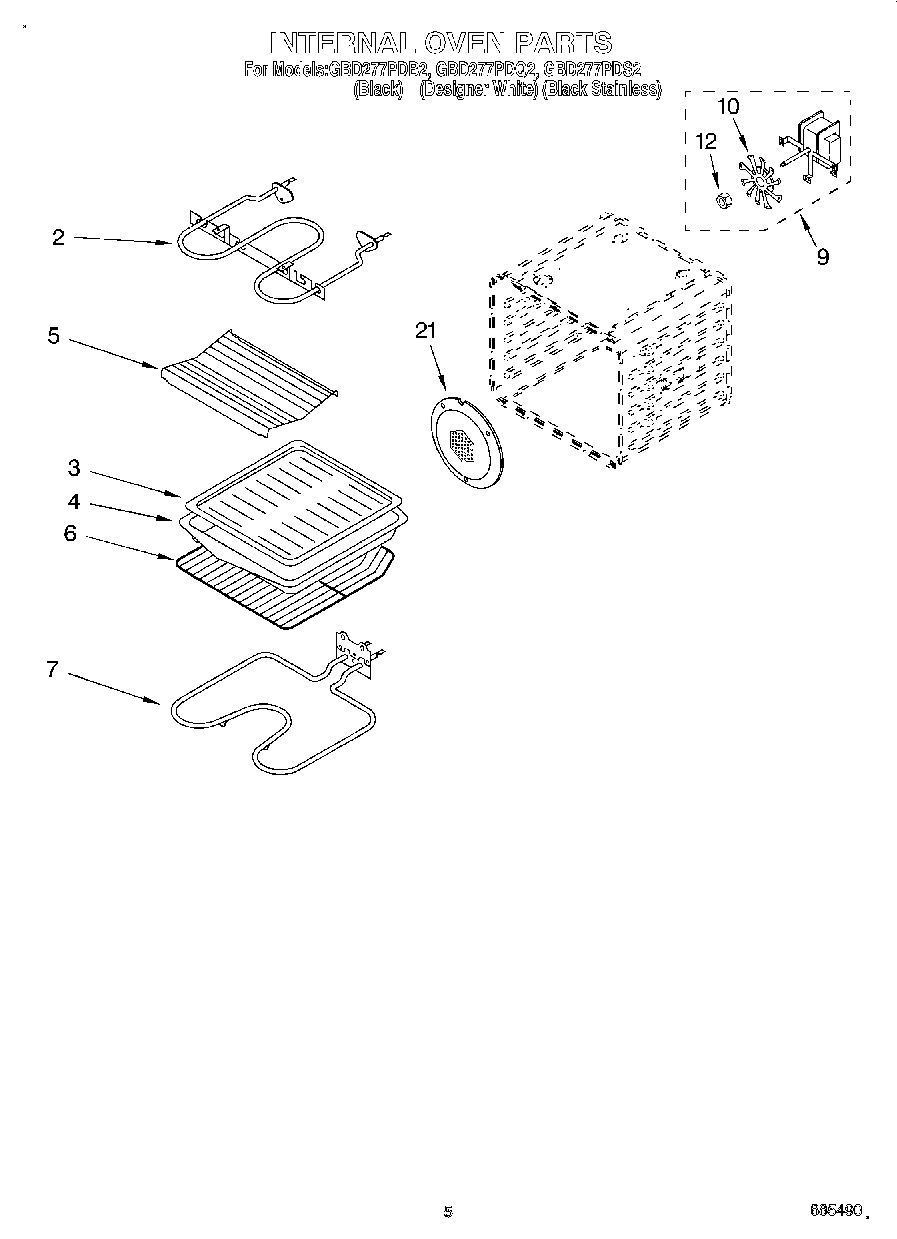

GBD277PDQ2 04 – INTERNAL OVEN

GBD277PDQ2 04 – INTERNAL OVEN

Written by

in

GBD277PDQ2 04 – INTERNAL OVEN

Products

PositionProduct
2WP9760767 Whirlpool Range Wall Oven Broil Element
34396923 Whirlpool Broil Pan Set Gray Porcelain
5Rack, Roasting
6Rack, Oven
7WPW10207397 Whirlpool Oven Bake Element
9Motor Convection
10WP4452226 Whirlpool Convection Fan
12Nut
21WP4449154 Whirlpool Screw
21WPW10160821 Whirlpool Fan Cover
