GBD277PDQ4 05 – TOP VENTING

GBD277PDQ4 05 – TOP VENTING

Written by

in

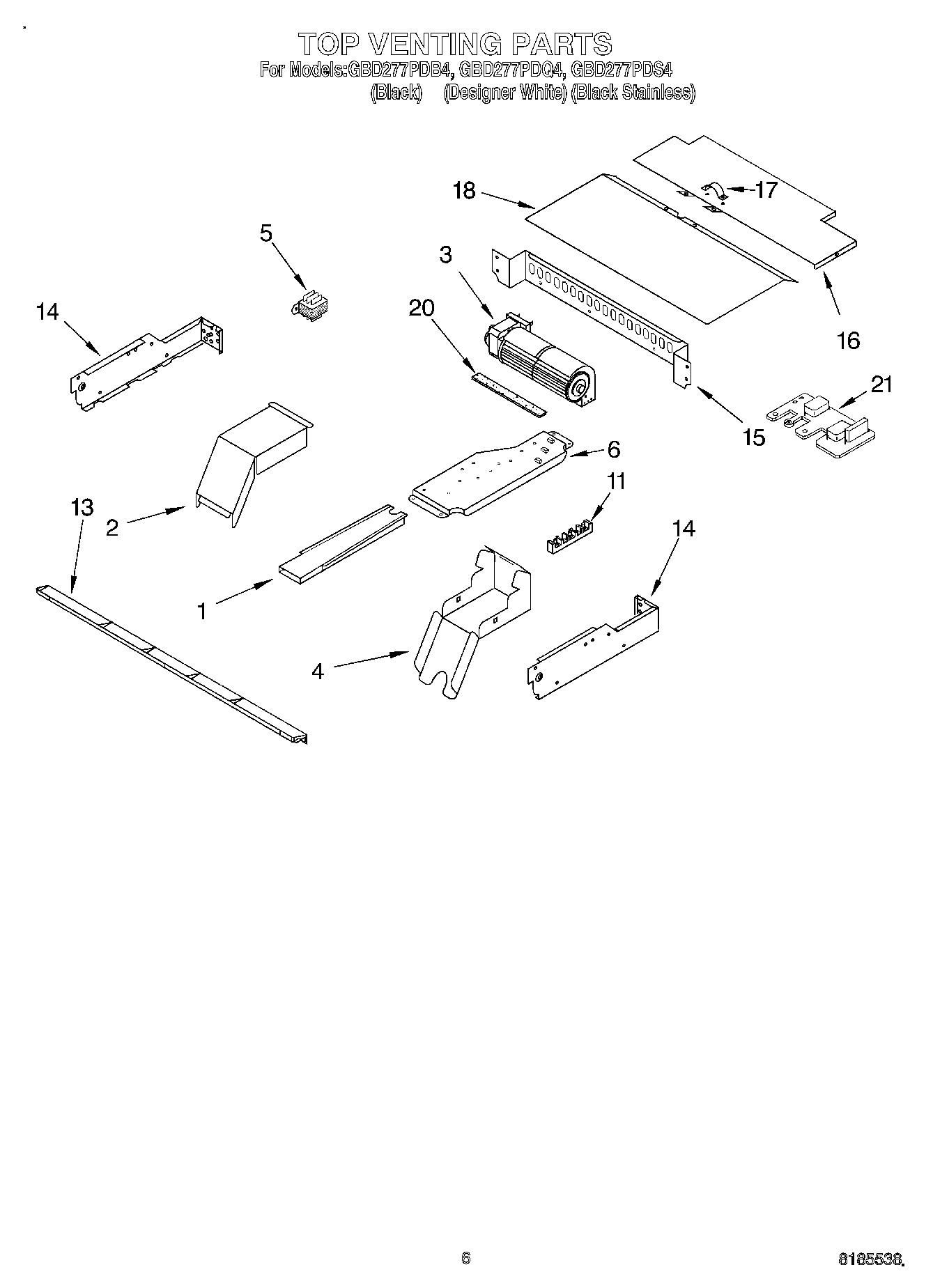

GBD277PDQ4 05 – TOP VENTING

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3WPW10016550 Whirlpool Blower Cooling Fan
3Blower
3WP4455352 Whirlpool Mounting Bracket
44455177 Whirlpool Oven Bottom Elbow
5Transformer, Control
6Plate, Mounting
11WP3400016 Whirlpool Screw Assembly
11WP8203546 Whirlpool Terminal Block
13Vent, (Control Panel)
13WP4450038 Whirlpool Screw
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
14WP4449154 Whirlpool Screw
15Back, Control
16Cover, Top Rear
18Cover, Top Front
20W10491987 Whirlpool Foam Seal
21261900 Whirlpool Microwave Spray
21Wire (12 Ga. 150 c Black)
2118 Ga. 80~c Rating (Red)
21Harness, Wire (Latch)
21Wire (14 Ga. 200 c Brown)
211
21WP4451985 Whirlpool Noise Filter Board
21WPL 591014
21Wire, 25` Roll (Red 14 Ga.)
214451761 Whirlpool Oven Support Bracket
21Harness, Wi
21Wire (14 Ga. 150 c Yellow)
2172032 Whirlpool Touch Up Paint Black
21285006 Whirlpool Spray
21WPW10339879 Whirlpool Wire Tie
214450800 Whirlpool Oven Screw
214448664 Whirlpool Oven Mounting Bracket
21Wire, 25“ Roll (White 14 GA.)
21Wire, 25` Roll (Black 14 Ga.)
21WP112432 Whirlpool Nut Assembly
21WP4449809 Whirlpool Screw
2172017 Whirlpool Appliance Touch-Up Paint White
21WP482338 Whirlpool Refrigerator Adhesive
21814381 Whirlpool Pin
21Wire (14 Ga. 150 c Orange)
21Wire (14 Ga. 150 c Green)
21Wire (14 Ga. 150 c Brown)
21Wire (14 Ga. 150 c Blue)
21WP261869 Whirlpool Microwave Paint
21242831 Whirlpool Oven Wire
21Spacer, Harness
21Conduit, Double
21Spacer, Foam
21WP4448950 Whirlpool Screw
21350930 Whirlpool White Spray Paint
