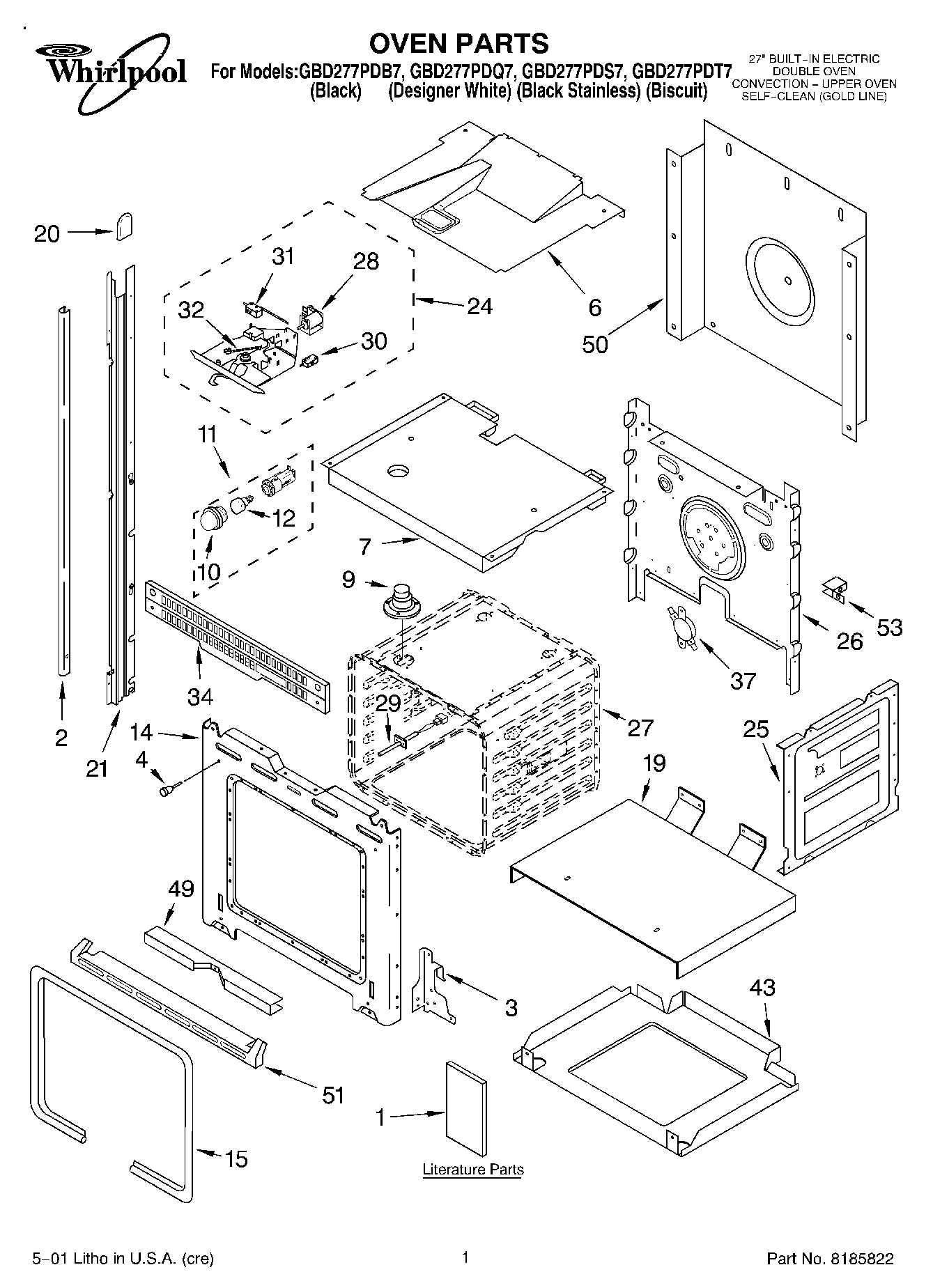

GBD277PDQ7 01 – OVEN, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Installation Instructions)
1	Literature Parts (Tech Sheet)
1	Literature Parts (Use & Care Guide)
2	Trim, Side (LH Biscuit)
2	Trim, Side (Right Hand) (White Model)
2	Trim, Side (LH Black)
2	Trim, Side (White)
2	WP8281236 Whirlpool Screw
2	Trim, Side (Left Hand)) (White Model)
2	Trim, Side (RH Biscuit)
2	WP694091 Whirlpool Screw
2	Trim, Side (RH Black)
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	4448520 Whirlpool Oven Bumper
6	Divider, Vent
7	Top, Chassis
9	SCREW
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
14	WP4450118 Whirlpool Nut
14	Screw
14	Frame, Front
15	WP4455381 Whirlpool Door Gasket
19	Support, Insulation
20	Cap, Spacer
21	814373 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
21	814374 Whirlpool Oven Rail Mount
24	Latch Assembly
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
28	Solenoid
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Microswitch N.C.
31	Microswitch
32	Spring, Latch
34	Vent, Center
37	WP9759243 Whirlpool Thermostat
37	WP9759242 Whirlpool Thermostat
43	Base, Chassis
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	WP4451747 Whirlpool Rear Cover
51	WPL 4448476
51	Screw, (2)
51	WPL 4452414
51	Tri
53	WPL 4449315
53	WPL 4450364
53	WPL 4449845
53	WP4449809 Whirlpool Screw
