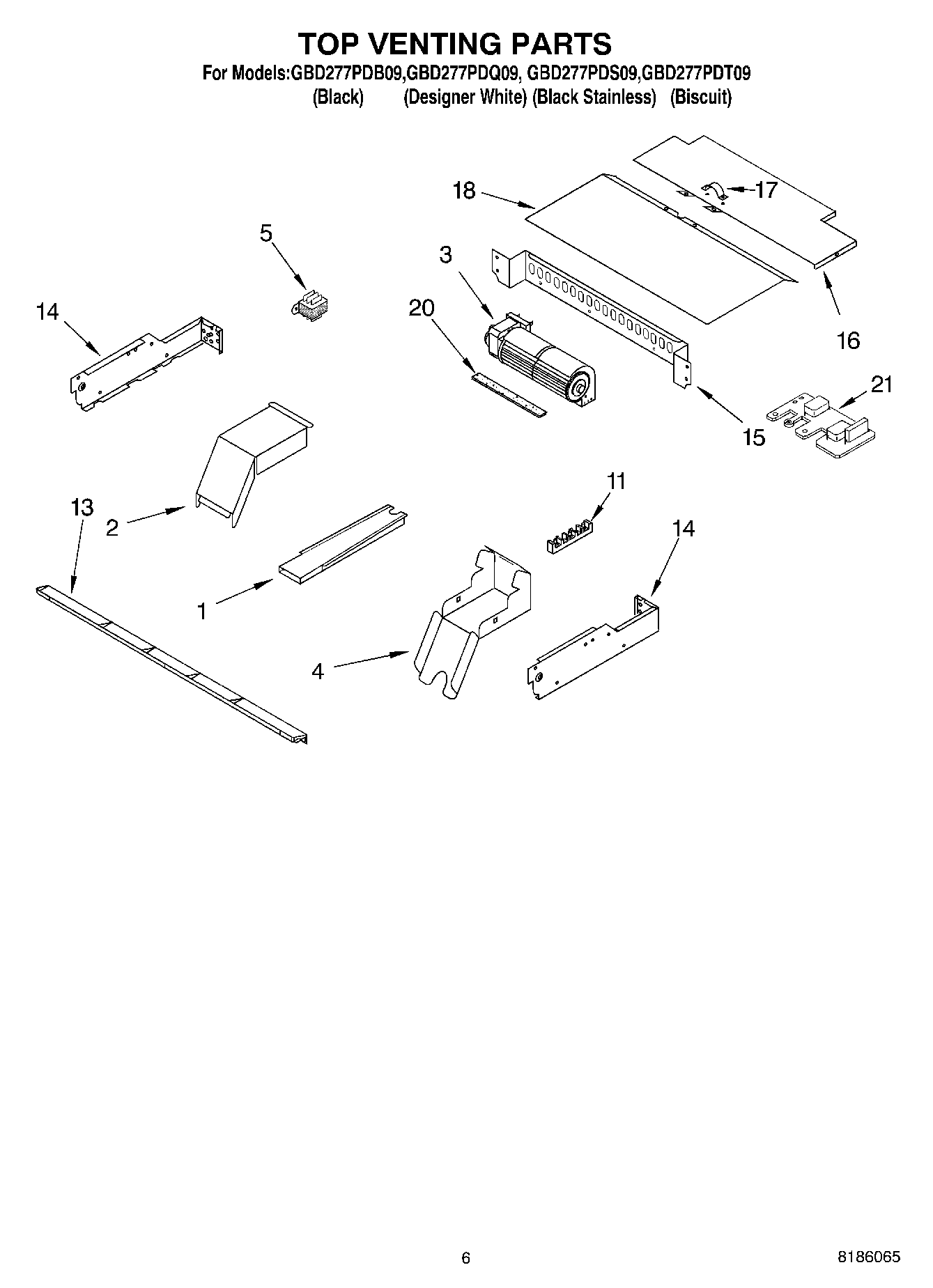

GBD277PDS09 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI58443A4
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	8301909 Whirlpool Oven Wire Harness
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 200 c Brown)
	1
	WPL ARI58442A8
	WPL ARI58441A8
	WPL ARI58440A1
	WPL 8301777
	261900 Whirlpool Microwave Spray
	WPL ARI58444A9
	4451761 Whirlpool Oven Support Bracket
	WPL 591014
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	Spacer, Harness
	4450800 Whirlpool Oven Screw
	72017 Whirlpool Appliance Touch-Up Paint White
	4448664 Whirlpool Oven Mounting Bracket
	WP4449809 Whirlpool Screw
	WP112432 Whirlpool Nut Assembly
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	WPW10339879 Whirlpool Wire Tie
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WP482338 Whirlpool Refrigerator Adhesive
	814381 Whirlpool Pin
	WP4448950 Whirlpool Screw
	Conduit, Double
	350930 Whirlpool White Spray Paint
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	WPW10016550 Whirlpool Blower Cooling Fan
3	Blower
3	WP4455352 Whirlpool Mounting Bracket
4	4455177 Whirlpool Oven Bottom Elbow
5	Transformer, Control
11	WP8203546 Whirlpool Terminal Block
11	Screw
13	WP4450038 Whirlpool Screw
13	Vent, (Control Panel)
14	WP4449154 Whirlpool Screw
14	W10755214 Whirlpool Side Complete
14	W10790240 Whirlpool Side Assembly Complete
15	Back, Control
16	Cover, Top Rear
18	Cover, Top Front
20	W10491987 Whirlpool Foam Seal
21	Spacer, Foam
21	SUPPRESSOR
