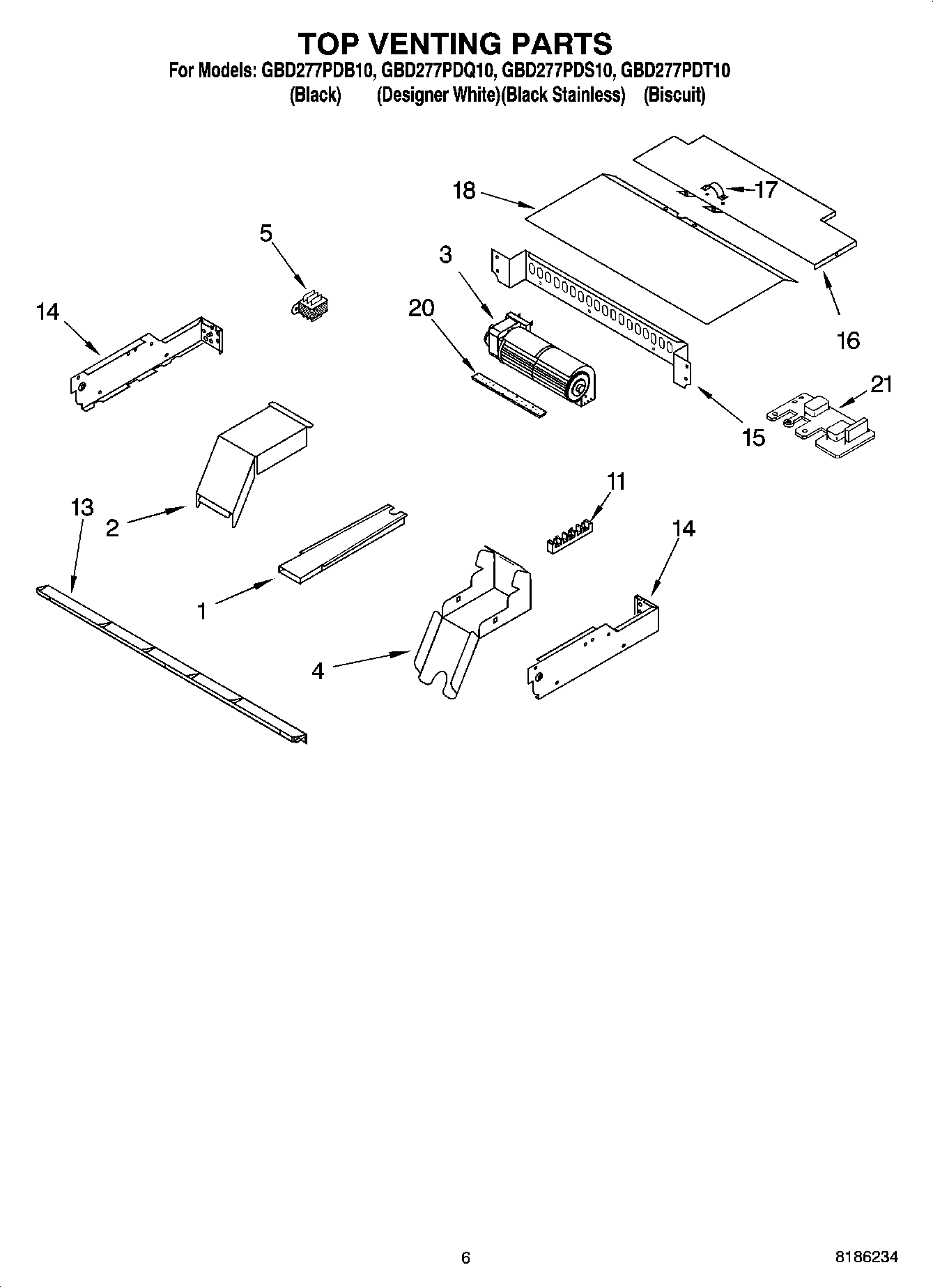

GBD277PDS10 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	242831 Whirlpool Oven Wire
	WP261869 Whirlpool Microwave Paint
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	WPL 8301777
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	8301909 Whirlpool Oven Wire Harness
	WPL 591014
	261900 Whirlpool Microwave Spray
	WPL ARI58451A7
	Spacer, Harness
	Conduit, Double
	WPL ARI58448A6
	72017 Whirlpool Appliance Touch-Up Paint White
	WP4449809 Whirlpool Screw
	WPL ARI58450A8
	WP112432 Whirlpool Nut Assembly
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	4448664 Whirlpool Oven Mounting Bracket
	4450800 Whirlpool Oven Screw
	WPW10339879 Whirlpool Wire Tie
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WP482338 Whirlpool Refrigerator Adhesive
	814381 Whirlpool Pin
	WP4448950 Whirlpool Screw
	WPL ARI58449A1
	4451761 Whirlpool Oven Support Bracket
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	WPW10016550 Whirlpool Blower Cooling Fan
3	WPW10176670 Whirlpool Blower
4	4455177 Whirlpool Oven Bottom Elbow
5	Transformer, Control
11	WP8203546 Whirlpool Terminal Block
11	Screw
13	Vent, (Control Panel)
13	WP4450038 Whirlpool Screw
14	WP4449154 Whirlpool Screw
14	W10790240 Whirlpool Side Assembly Complete
14	W10755214 Whirlpool Side Complete
15	Back, Control
16	Cover, Top Rear
18	Cover, Top Front
20	W10491987 Whirlpool Foam Seal
21	SUPPRESSOR
21	Spacer, Foam
