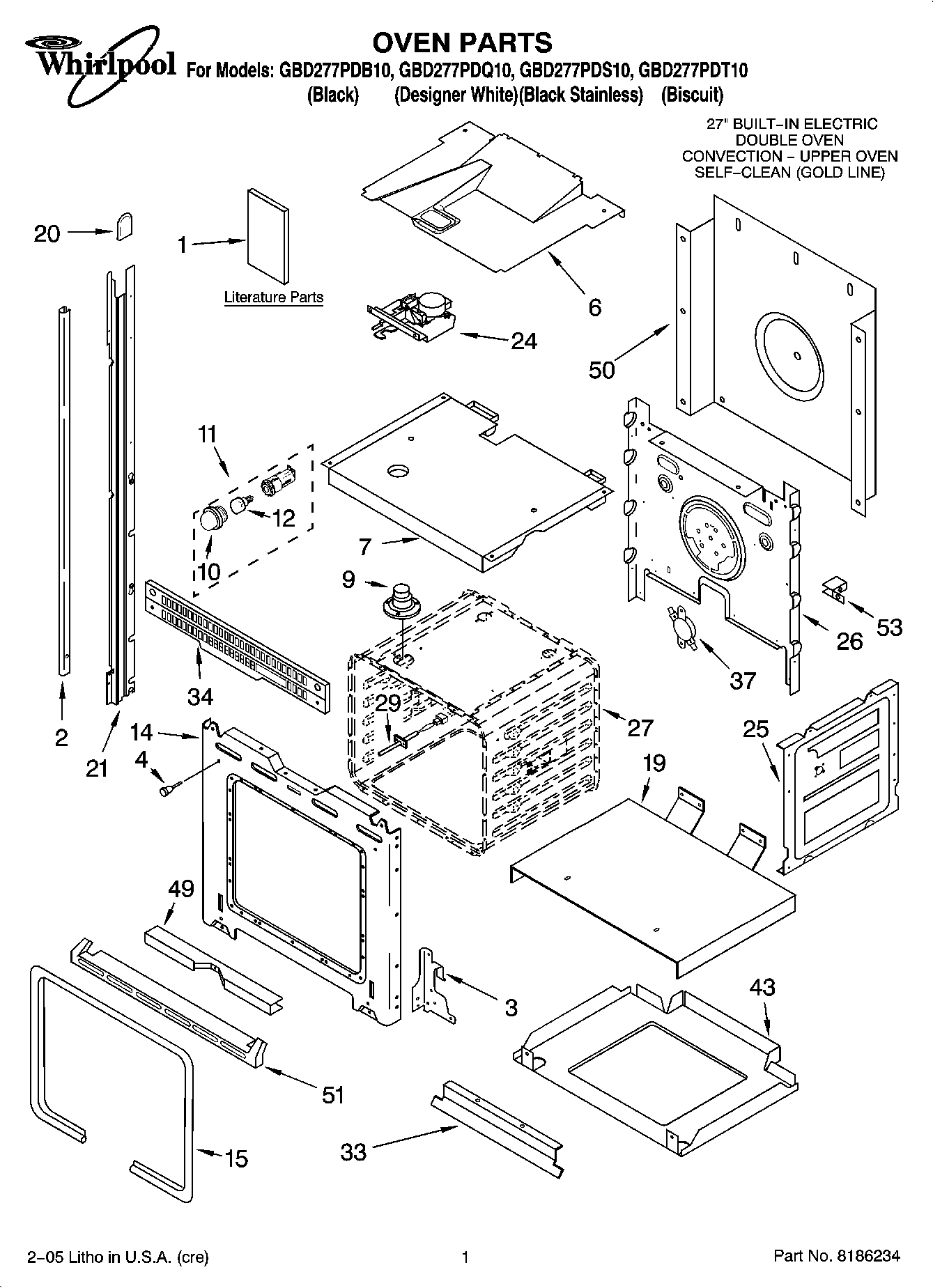

GBD277PDT10 01 – OVEN PARTS

GBD277PDT10 01 – OVEN PARTS

Written by

in

GBD277PDT10 01 – OVEN PARTS

Products

PositionProduct
1Installation Instructions
1Tech Sheet (Oven)
1Safe Cooking Tips
1Use & Care Guide
2Trim, Side (LH Black)
2Trim, Side (Right Hand) (White Model)
2Trim, Side (LH Biscuit)
2Trim, Side (RH Black)
2Trim, Side (Left Hand)) (White Model)
2WP694091 Whirlpool Screw
2Trim, Side (RH Biscuit)
2Trim, Side (White)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Top, Chassis
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14Screw
14Frame, Front
14WP4450118 Whirlpool Nut
15WP4455381 Whirlpool Door Gasket
19Support, Insulation
20Cap, Spacer
21WP4448444 Whirlpool Grommet
21814374 Whirlpool Oven Rail Mount
21814373 Whirlpool Oven Rail Mount
24WP9760889 Whirlpool Door Latch
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
33Deflector, Vent
34Vent, Center
37WP9759242 Whirlpool Thermostat
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51WPL 4452414
51WPL 4448476
51Tri
51WP3400832 Whirlpool Screw
53WPL 4449315
53WPL 4450364
53WPL 4449845
53WP4449809 Whirlpool Screw
53WPL ARI58472A3
