GBD277PDT7 02 – CONTROL PANEL

GBD277PDT7 02 – CONTROL PANEL

Written by

in

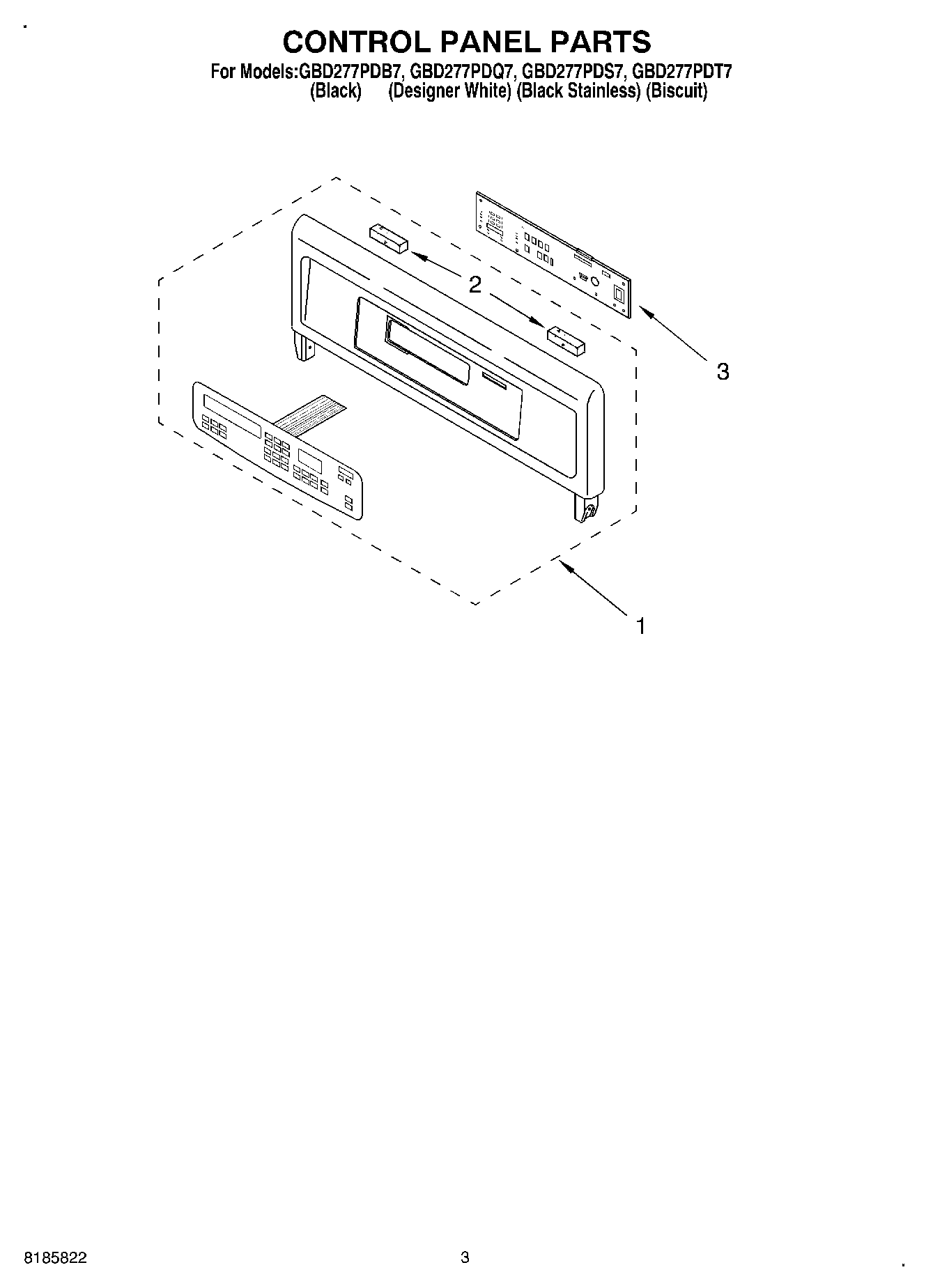

GBD277PDT7 02 – CONTROL PANEL

Products

PositionProduct
1WP3400832 Whirlpool Screw
1Insulator, Switch Membrane
1Control Panel Assy. W/Membrane, Switch (Black & Stainless Model)
1Control Panel Assy. W/Membrane, Switch (White Model)
1Control Panel Assy. W/Membrane, Switch (Biscuit Model)
2Gasket, Control Panel
3WP4449745 Whirlpool Screw
3Microcomputer
