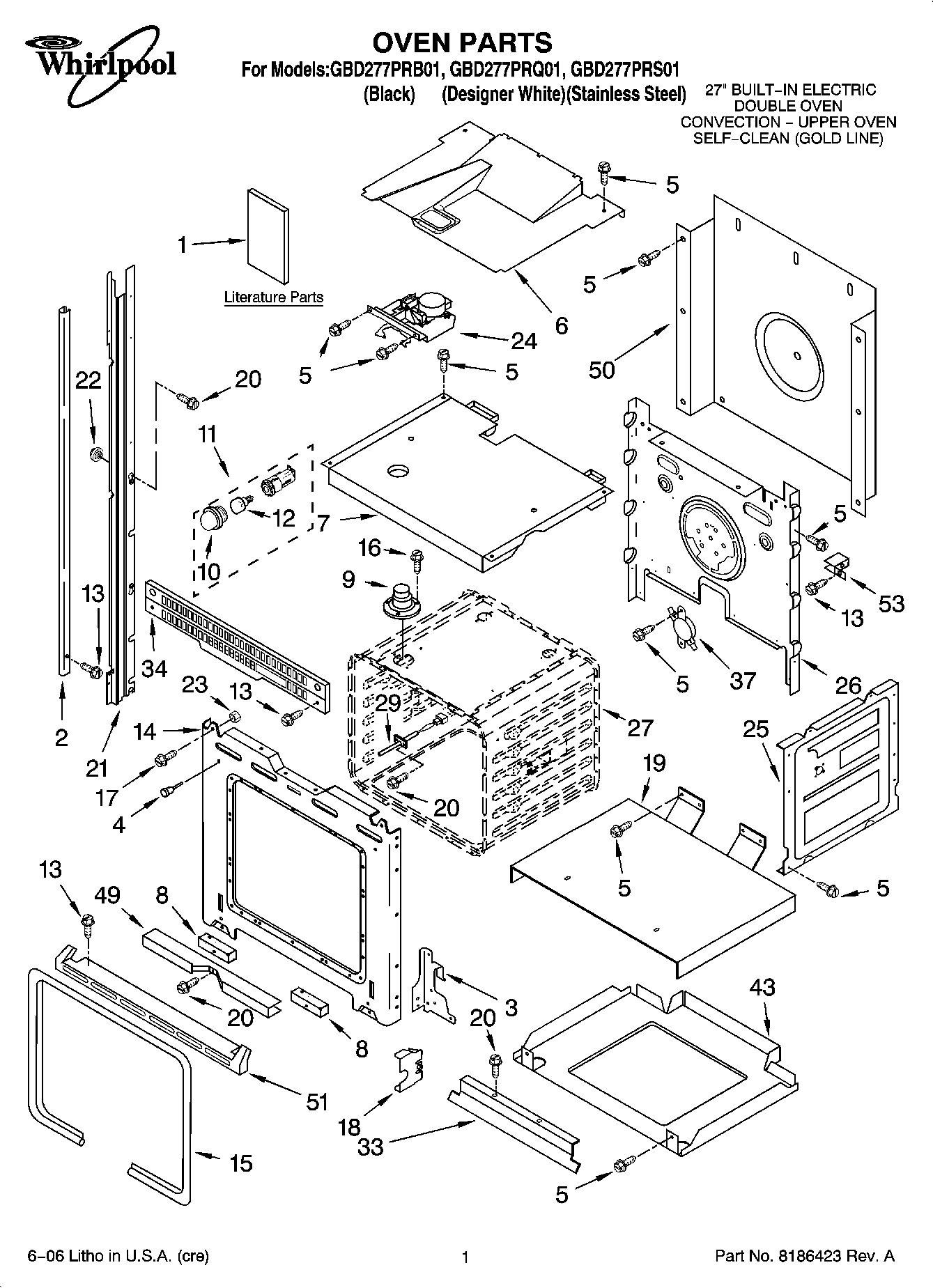

GBD277PRB01 01 – OVEN PARTS

GBD277PRB01 01 – OVEN PARTS

Written by

in

GBD277PRB01 01 – OVEN PARTS

Products

PositionProduct
1Safe Cooking Tips (French)
1Safe Cooking Tips
1Tech Sheet (Oven)
1English
1French
1Installation Instructions
2Trim, Side (RH White)
2WPW10339499 Whirlpool Trim Assembly
2WPW10339500 Whirlpool Trim
2WPW10339502 Whirlpool Trim Kit
2Trim, Side (LH S.Steel)
2Trim, Side (RH S.Steel)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5WP4449809 Whirlpool Screw
6Divider, Vent
7Top, Chassis
8Spacer, Foam
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13WP3400832 Whirlpool Screw
14Frame, Front
15WP4455381 Whirlpool Door Gasket
16SCREW
17Screw
184452152 Whirlpool Oven Mounting Bracket
19Support, Insulation
20WP4449154 Whirlpool Screw
21WP8302793 Whirlpool Mounting Rail
21Rail, Side (Left)
22WP4448444 Whirlpool Grommet
23WP4450118 Whirlpool Nut
24WP9760889 Whirlpool Door Latch
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
33Deflector, Vent
34Vent, Center
37WP9759243 Whirlpool Thermostat
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51Trim, Bottom (Black Model)
51Trim,
51WPL 8302940
53WPL 4449845
53WPL 4449315
53WPL 4450364
53FOLLOWING PARTS NOT ILLUSTRATED INSULATION
