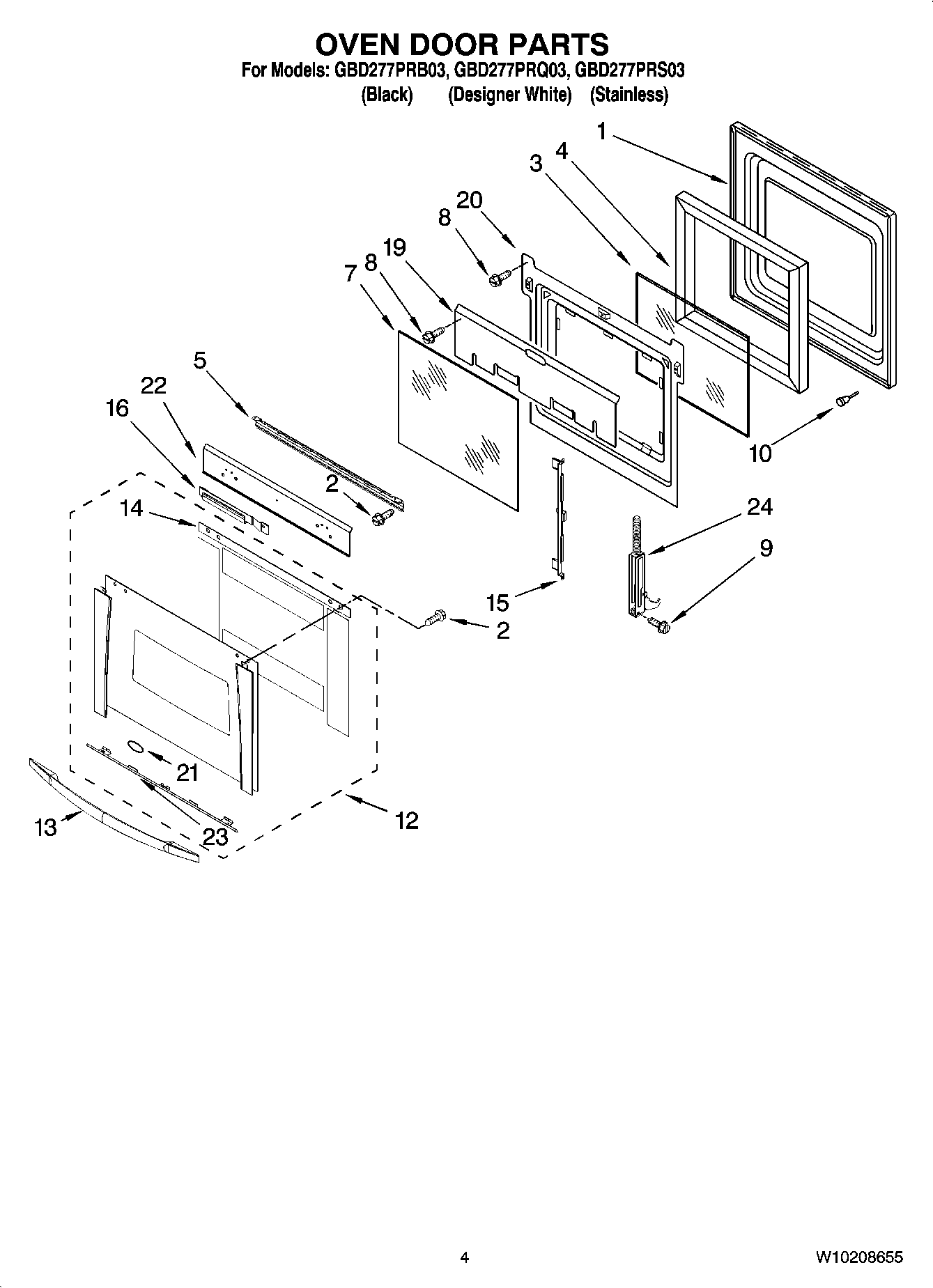

GBD277PRB03 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	Screw
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Bracket, Handle
7	Glass, Inner
8	WP4449809 Whirlpool Screw
9	WP4449743 Whirlpool Screw
10	4448520 Whirlpool Oven Bumper
12	Assy., Door Glass (White Model)
12	Assy., Door Glass (S.Steel Model)
12	Door Glass, Assy (Upper) (S.Steel)
12	Door Glass, Assy (Upper) (Black)
12	Door Glass, Assy (Upper) (White)
12	Assy., Door Glass (Black Model)
13	Handle, Door (Black Model)
13	Handle, Door (White Model)
13	Handle, Door (S.Steel Model)
14	Seal-Door
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	Shield, Heat
20	Retainer, Glass
21	Name Plate
22	Shield, Heat (Bottom)
23	Clip, Door (Black)
23	Clip, Door (White)
24	WP9760576 Whirlpool Door Hinge (Left)
24	HINGE-DOOR
