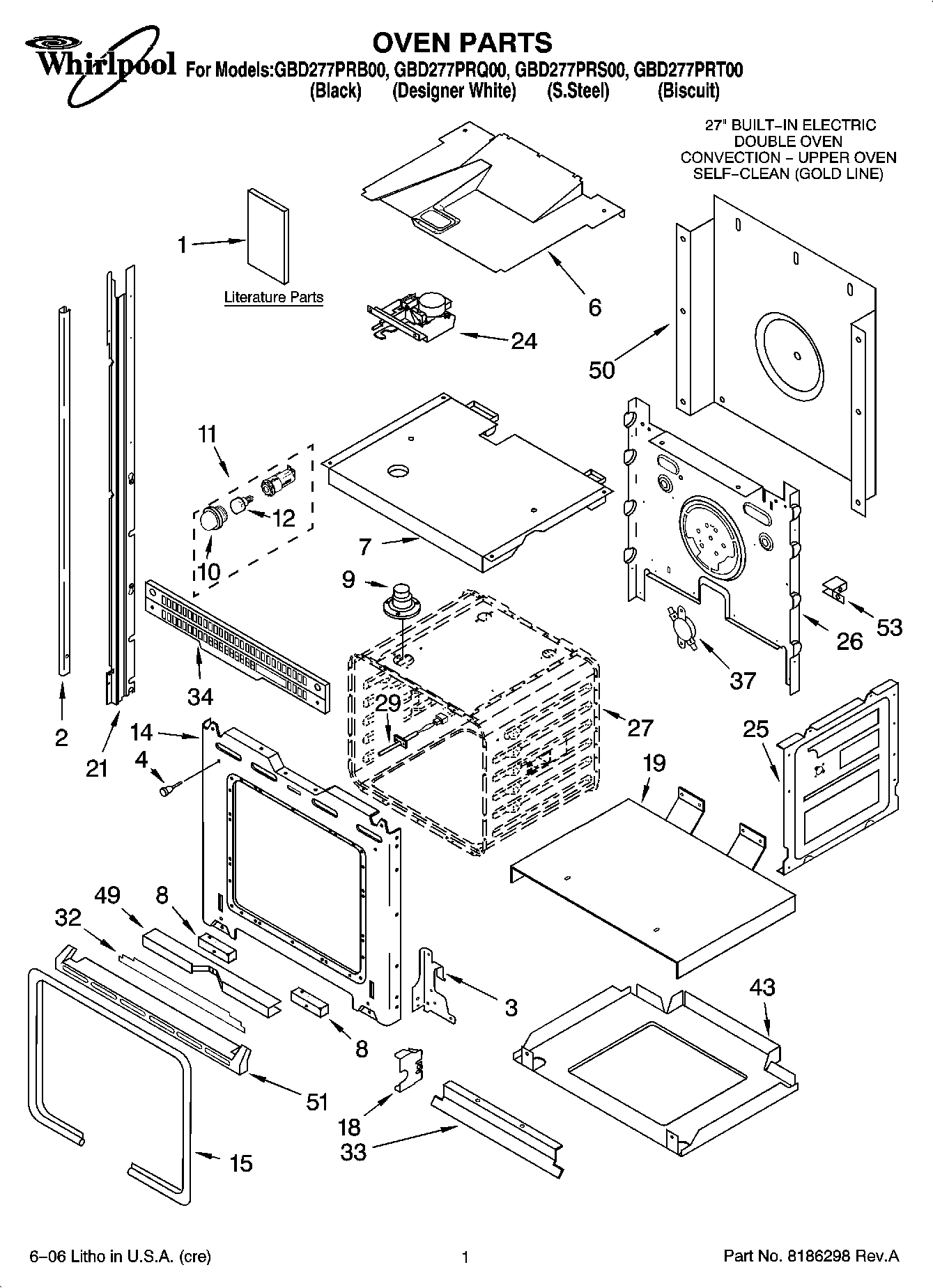

GBD277PRQ00 01 – OVEN PARTS

GBD277PRQ00 01 – OVEN PARTS

Written by

in

GBD277PRQ00 01 – OVEN PARTS

Products

PositionProduct
1Safe Cooking Tips (French)
1Safe Cooking Tips
1Tech Sheet (Oven)
1Use & Care Guide
1Installation Instructions
2W10339503 Whirlpool Trim
2WPW10339499 Whirlpool Trim Assembly
2WPW10339500 Whirlpool Trim
2Trim, Side (RH White)
2Trim, Side (LH Biscuit)
2Trim, Side (LH S.Steel)
2WPW10339502 Whirlpool Trim Kit
2Trim, Side (RH S.Steel)
2WP8281236 Whirlpool Screw
2WP694091 Whirlpool Screw
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Top, Chassis
8Spacer, Foam
9W10861715 Whirlpool Vent Tube
9SCREW
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14WP4450118 Whirlpool Nut
14Frame, Front
14Screw
15WP4455381 Whirlpool Door Gasket
184452152 Whirlpool Oven Mounting Bracket
19Support, Insulation
21WP8302793 Whirlpool Mounting Rail
21Rail, Side (Left)
21WP4448444 Whirlpool Grommet
24WP9760889 Whirlpool Door Latch
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
32Insulation, Bottom Vent
33Deflector, Vent
34Vent, Center
37WP9759243 Whirlpool Thermostat
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51WP3400832 Whirlpool Screw
51WPL 8302940
51WPL 8302939
51Trim,
51Trim, Bottom (Black Model)
53WPL 4450364
53WPL 4449315
53WP4449809 Whirlpool Screw
53WPL 4449845
53WPL ARI58500A1
