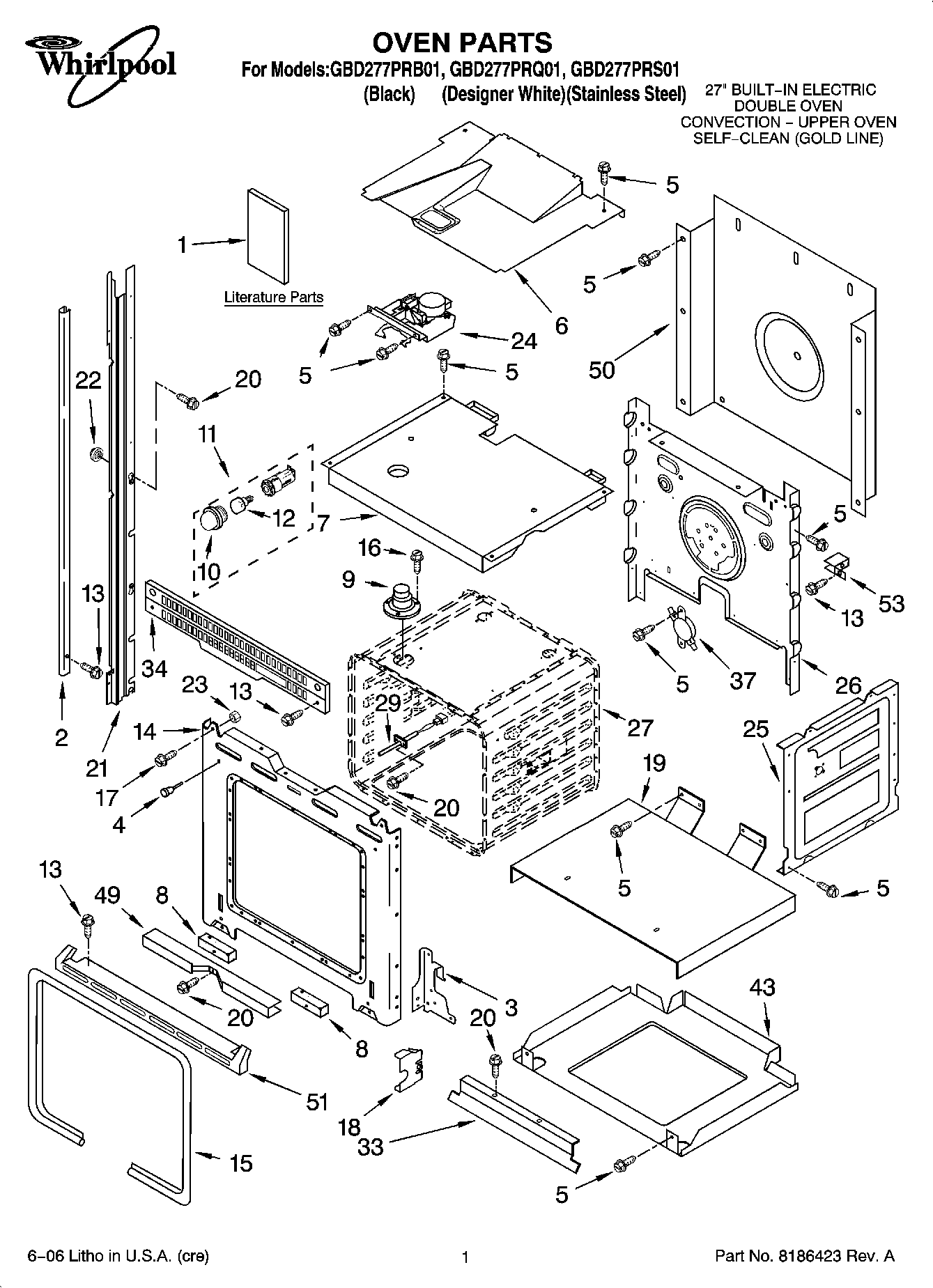

GBD277PRQ01 01 – OVEN PARTS

Products

Position	Product
1	French
1	Installation Instructions
1	English
1	Tech Sheet (Oven)
1	Safe Cooking Tips
1	Safe Cooking Tips (French)
2	WPW10339499 Whirlpool Trim Assembly
2	WPW10339502 Whirlpool Trim Kit
2	Trim, Side (RH White)
2	Trim, Side (LH S.Steel)
2	Trim, Side (RH S.Steel)
2	WPW10339500 Whirlpool Trim
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	4448520 Whirlpool Oven Bumper
5	WP4449809 Whirlpool Screw
6	Divider, Vent
7	Top, Chassis
8	Spacer, Foam
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	WP3400832 Whirlpool Screw
14	Frame, Front
15	WP4455381 Whirlpool Door Gasket
16	SCREW
17	Screw
18	4452152 Whirlpool Oven Mounting Bracket
19	Support, Insulation
20	WP4449154 Whirlpool Screw
21	WP8302793 Whirlpool Mounting Rail
21	Rail, Side (Left)
22	WP4448444 Whirlpool Grommet
23	WP4450118 Whirlpool Nut
24	WP9760889 Whirlpool Door Latch
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
29	WPW10131825 Whirlpool Oven Temperature Sensor
33	Deflector, Vent
34	Vent, Center
37	WP9759243 Whirlpool Thermostat
37	WP9759242 Whirlpool Thermostat
43	Base, Chassis
49	WP4448933 Whirlpool Retainer
50	WP4451747 Whirlpool Rear Cover
51	Trim, Bottom (Black Model)
51	Trim,
51	WPL 8302940
53	FOLLOWING PARTS NOT ILLUSTRATED INSULATION
53	WPL 4449845
53	WPL 4449315
53	WPL 4450364
